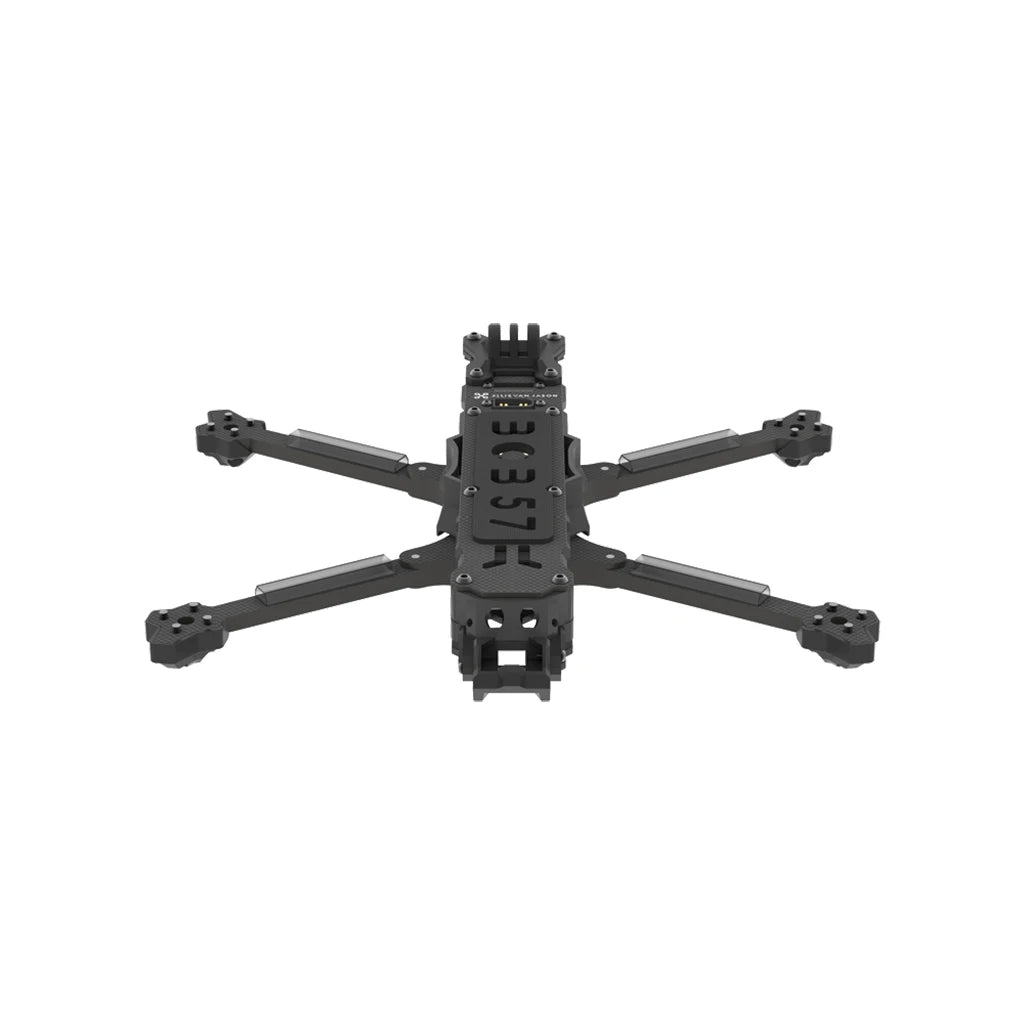

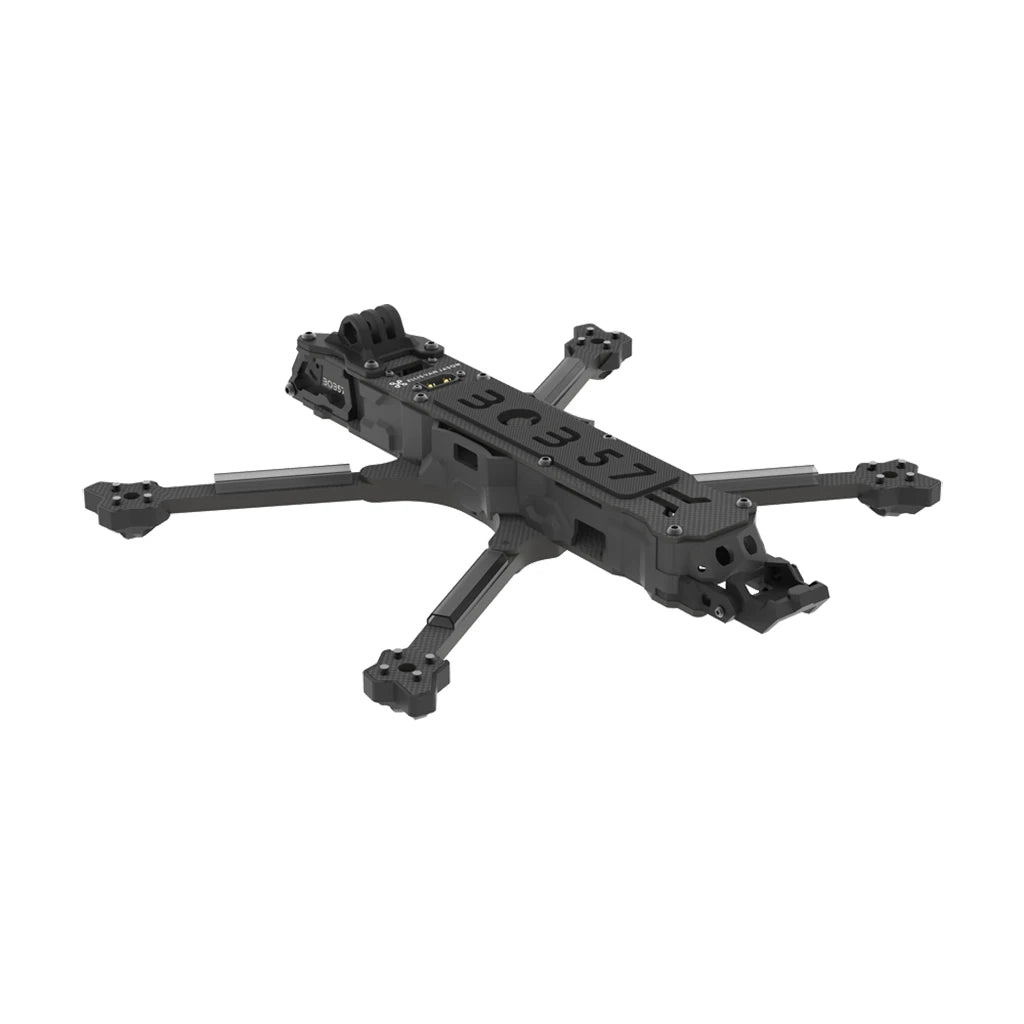

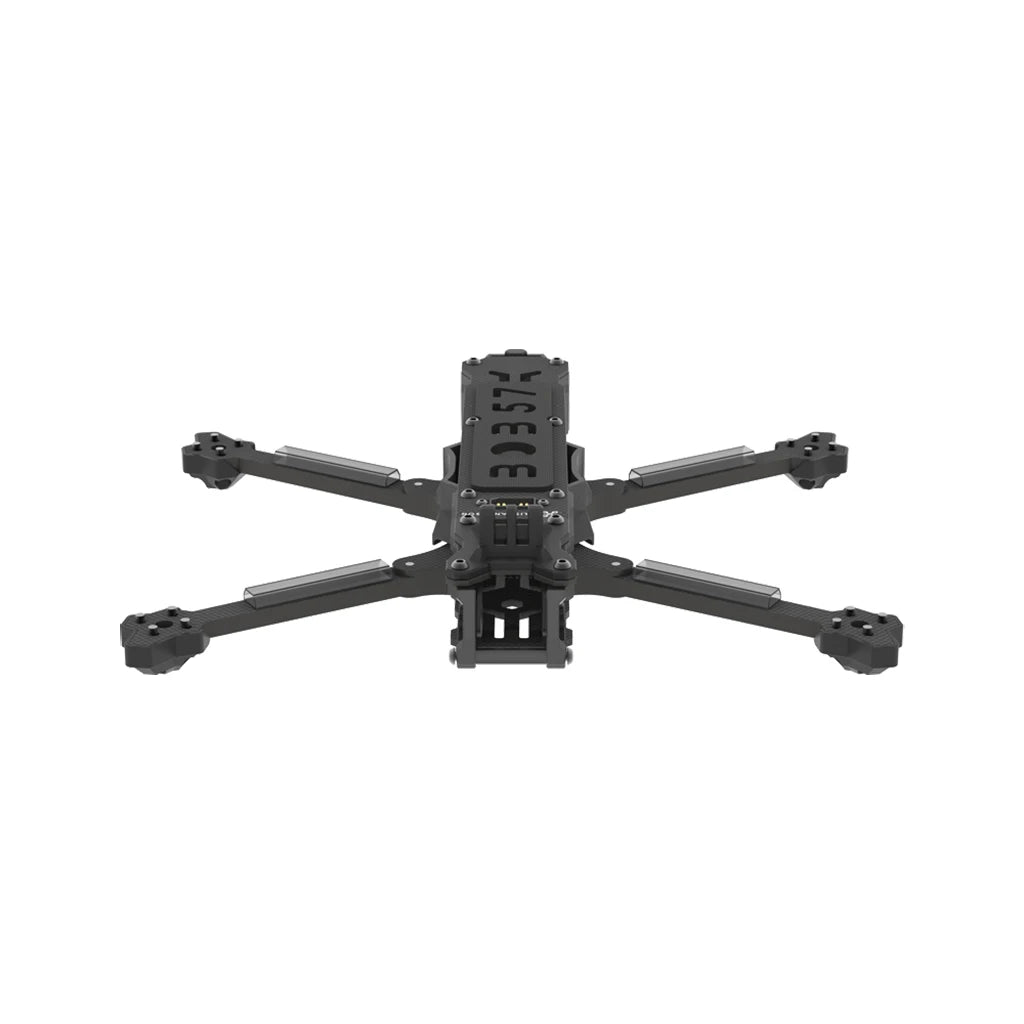

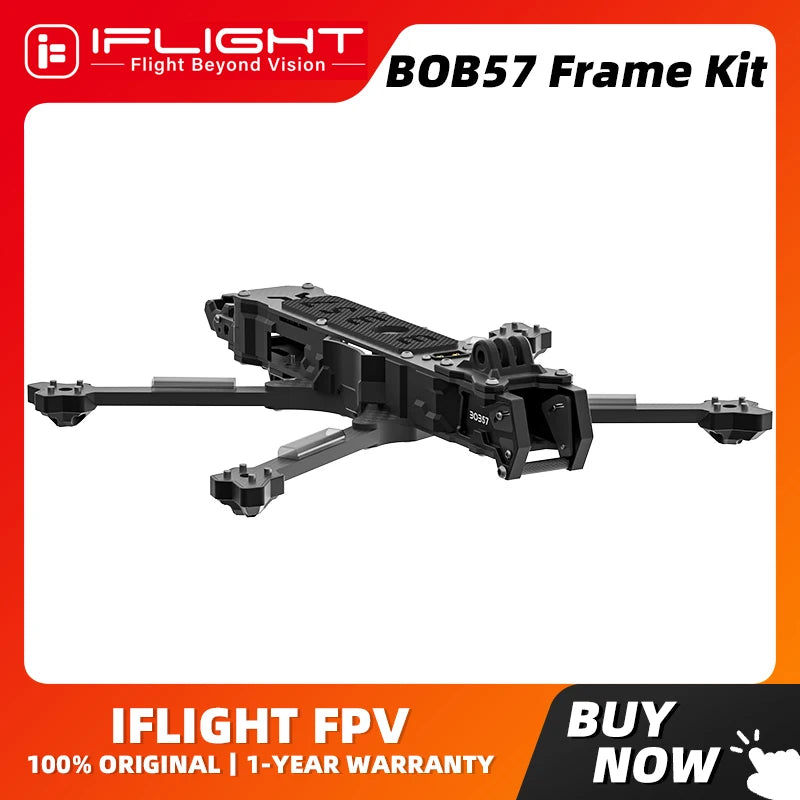

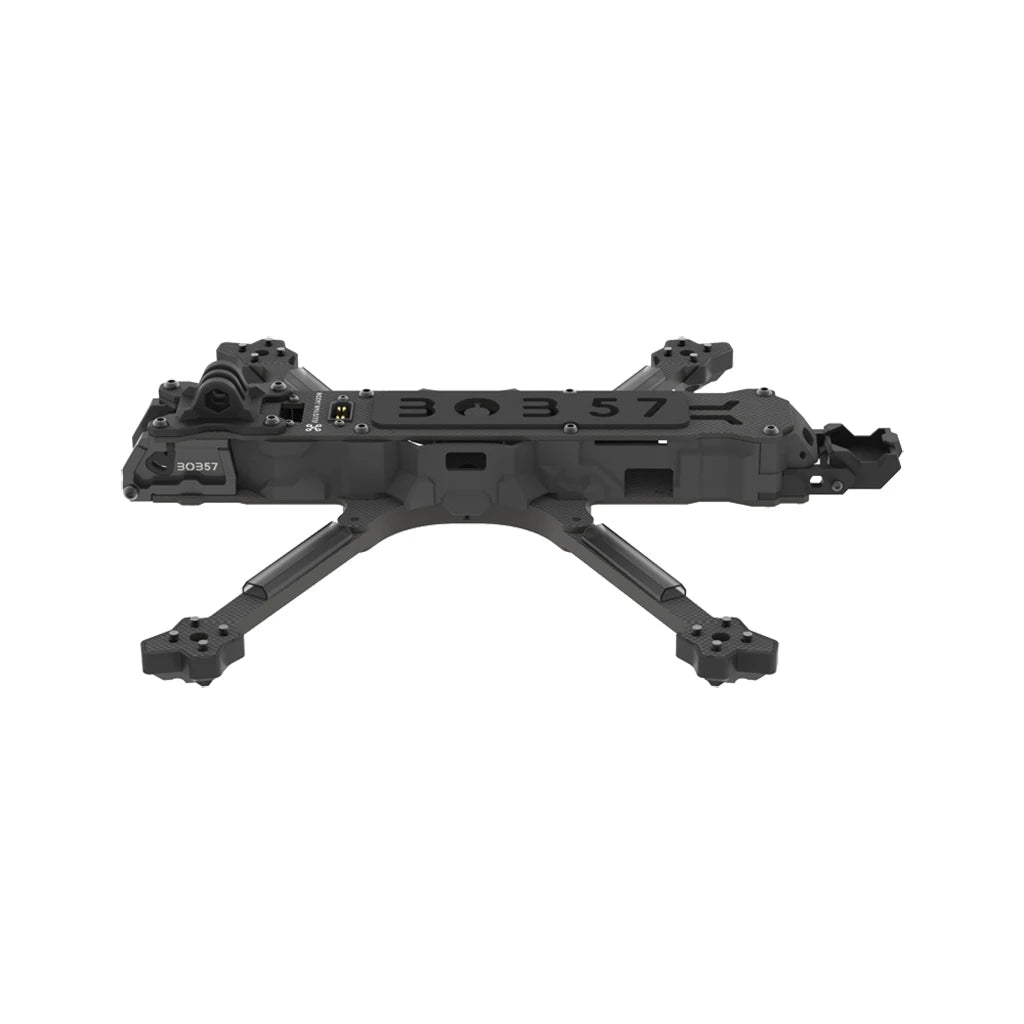

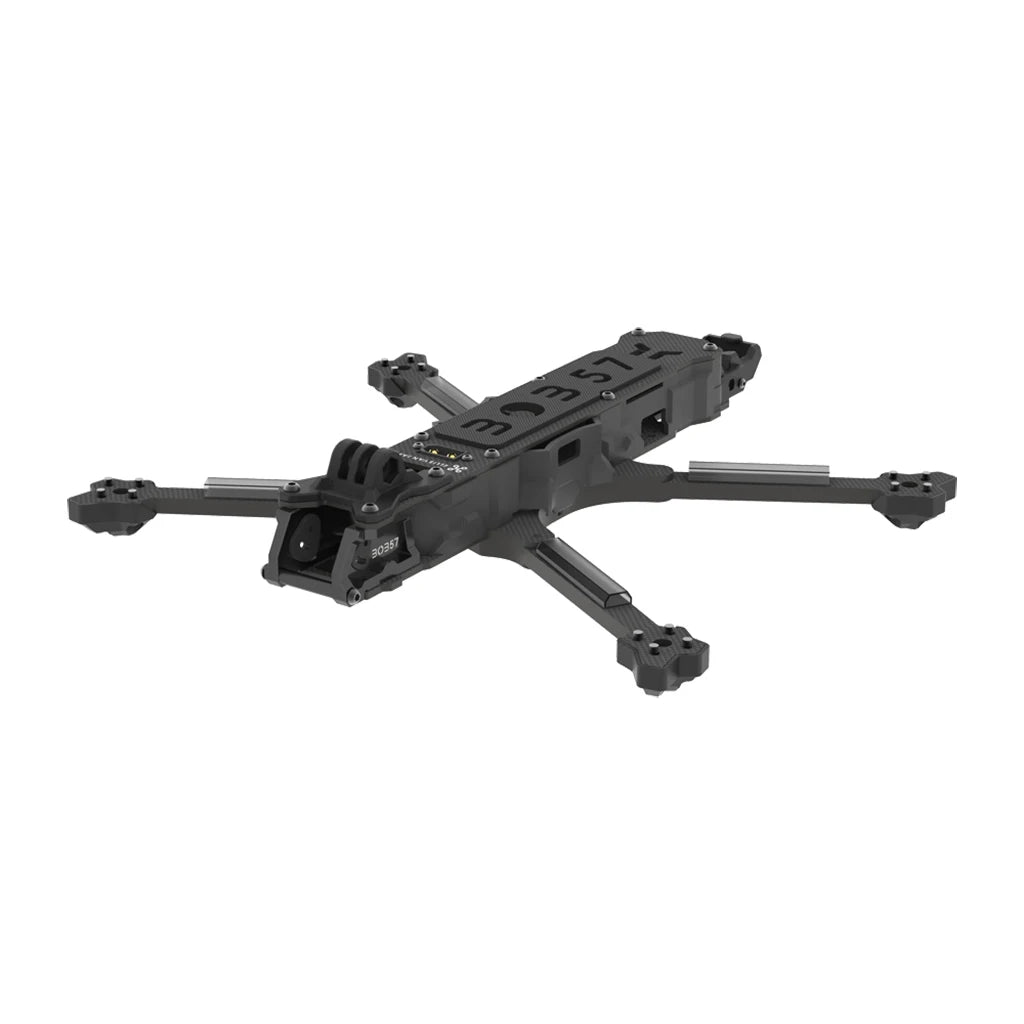

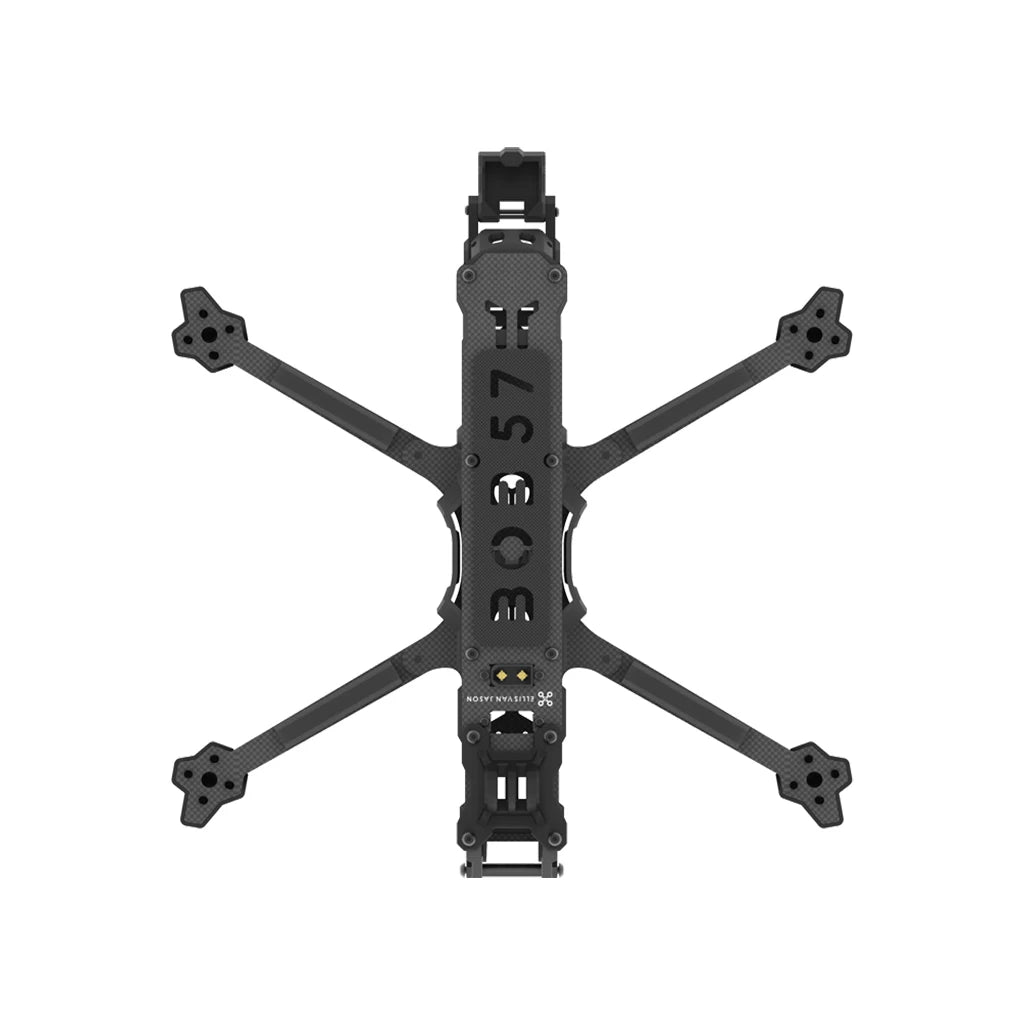

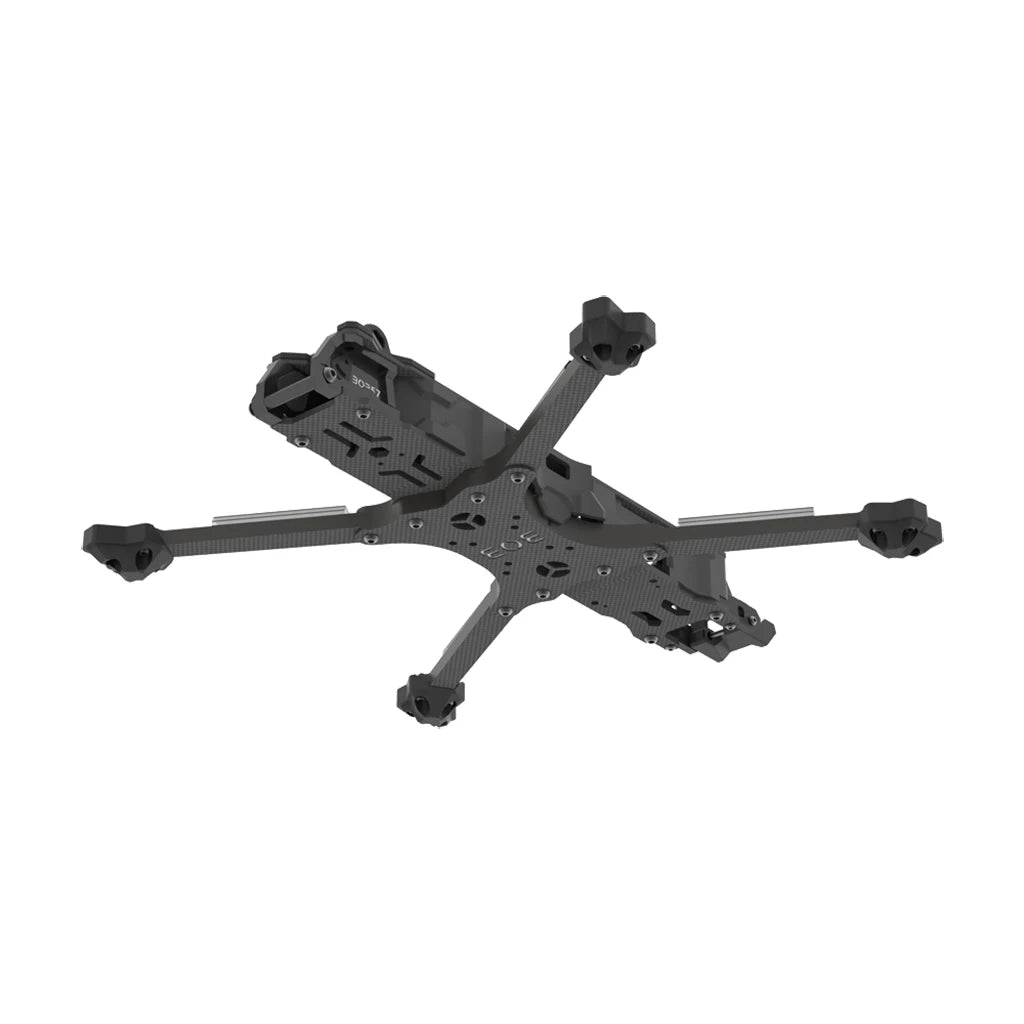

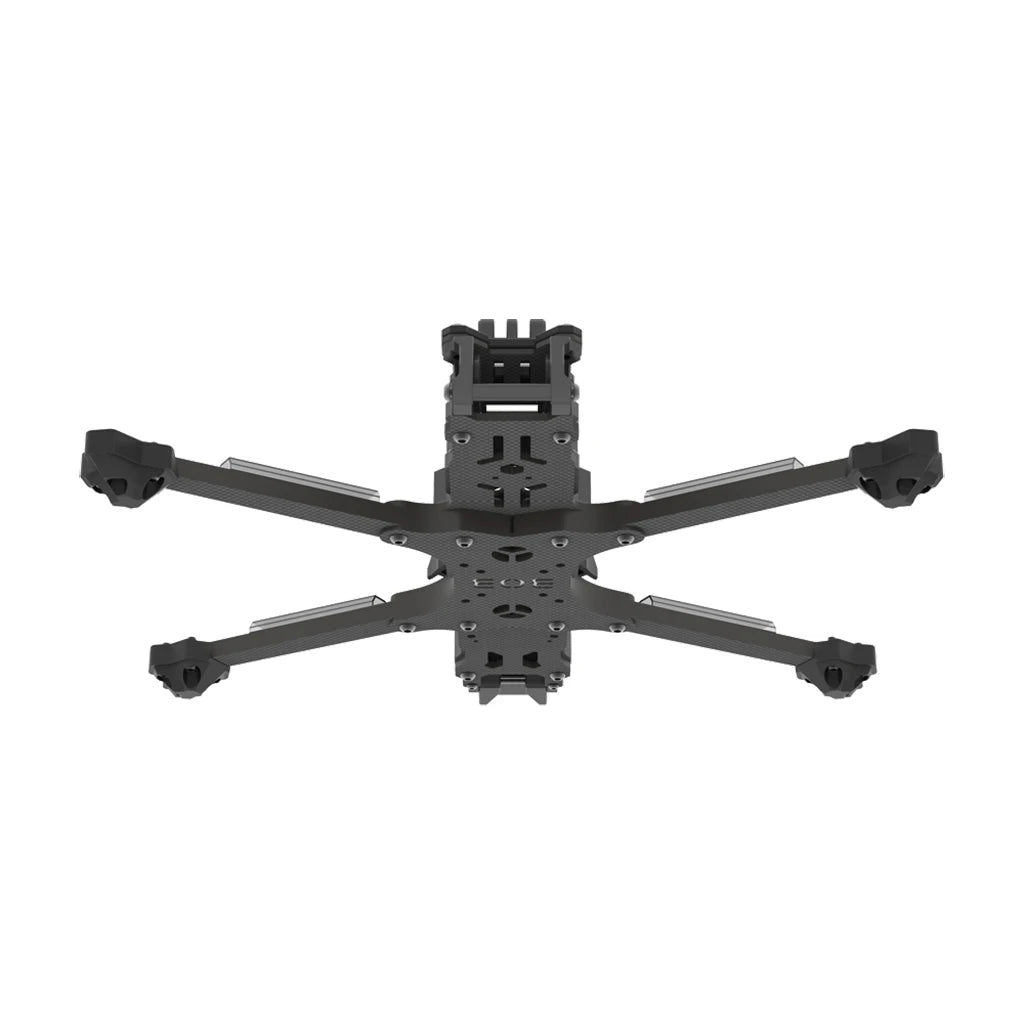

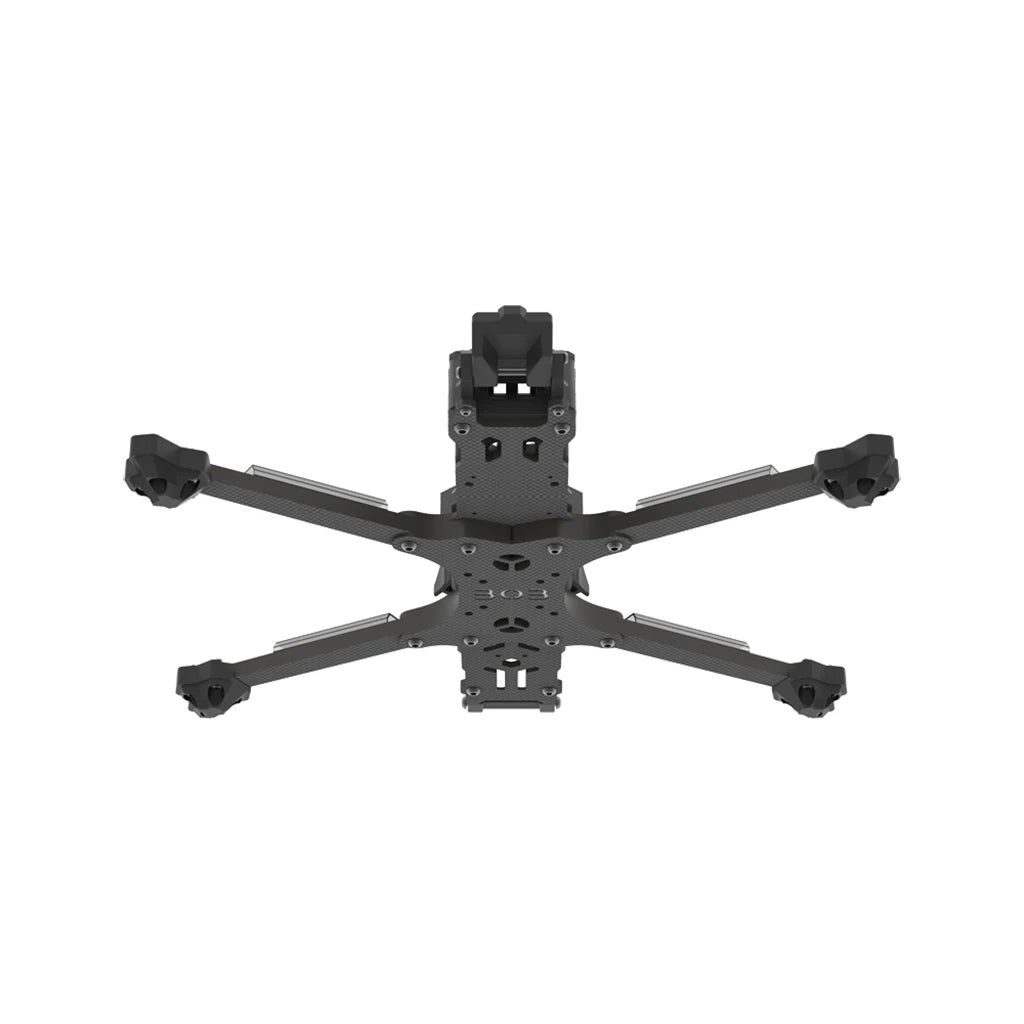

iFlight BOB57 O4 Pro Frame Kit

Second 6-Inch Cinematic Base Frame Environment Alongside GEPRC Vapor-D6

SPECIFICATIONS

• Brand Name: NONE

• Drones Accessories Type: Body shell

• High-concerned chemical: None

• Origin: Mainland China

Description

The iFlight BOB57 is a long-range frame kit that was designed in collaboration with pilot & videographer Ellis van Jason. The team crafted this cinematic 6-inch drone that ensures agility and flight time while combining the advantages of both 5-inch and 7-inch drones for both cinematic and freestyle flights.

Features

• Hybrid motor design optimized for that can be used with both bi-blade and tri-blade 6" propellers

• Solid antenna mount for less ocillations when using long antennas

• H-shaped frame with robust middle section for less props in view

• Gladiator shell protects from dust and water droplets

• Front-mounting XT-60

Specifications

• Product Name: BOB57 Frame Kit

• Frame wheelbase: 278mm

• Frame Dimension: L165W225H34 mm

• Weight: 305g

• Frame Body Dimension: 34mm

• Arm Thickness: 6mm

• Bottom Plate Thickness: 1.5mm

• Top Plate Thickness: 2mm

• Upper Plate Thickness: 2.5mm

• Max Flight Stack Height: 22mm

• Max VTX Height: 22mm

• Flight Stack Mounting: 2020 Φ3mm / 30.530.5/Φ3mm

• VTX Mounting: 2020 Φ2mm / 25.525.5 Φ1.6mm

• Motor Mounting: 16x16mm -φ2

• Weight: 305±5g

• Compatibility: DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX(O3 Ver.) / DJI O4 Air Unit Pro(O4 Ver.)

Note

IPEX to SMA Adapter Cables and Anti Spark Filter are not included!

In this frame kit, dual antenna VTX TPU is included, it needs to be used with 2pcs IPEX to SMA adapter Cables and 2pcs antenna

If you only need to install one antenna, please buy "O3 Single DJI Antenna TPU" in the options

Please note that due to manufacturing processes, the product may have a standard manufacturing tolerance of ±2mm.

Packing List

• 1 x BOB57 Frame Kit

• 1 x BOB57 TPU Parts

• 1 x 215mm MIPI Video Cable for DJI O3 Air Unit (O3 Ver. Only)

• 1 x 220mm MIPI Video Cable for DJI O4 Air Unit Pro (O4 Ver. Only)

• 4 x Motor Wire Shield Tube

• 1 x Battery Anti-Slip Pad

• 2 x Battery Strap

• 1 x Screw Bag

Note

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
