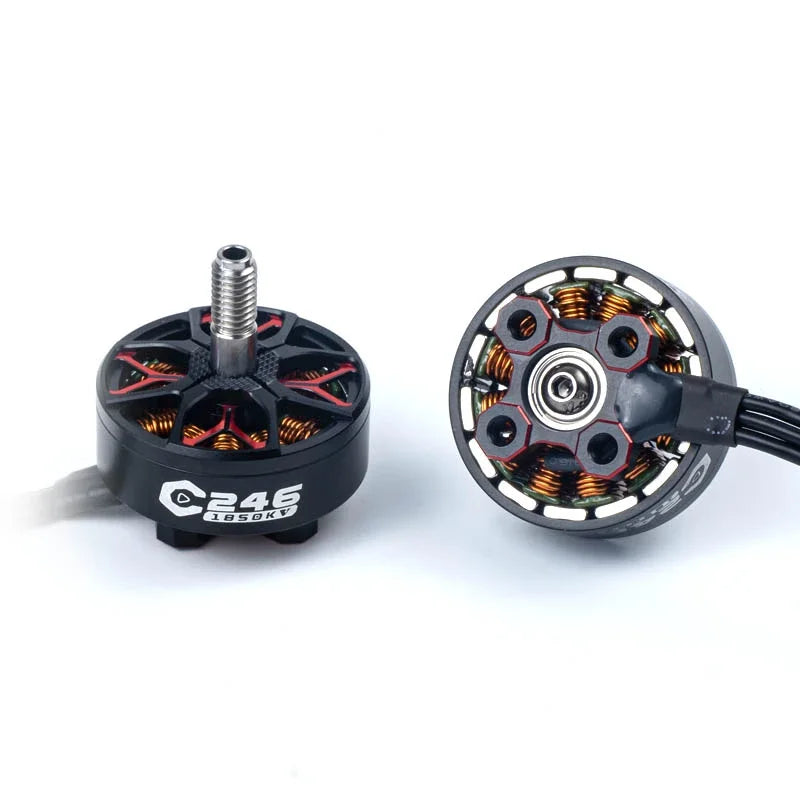

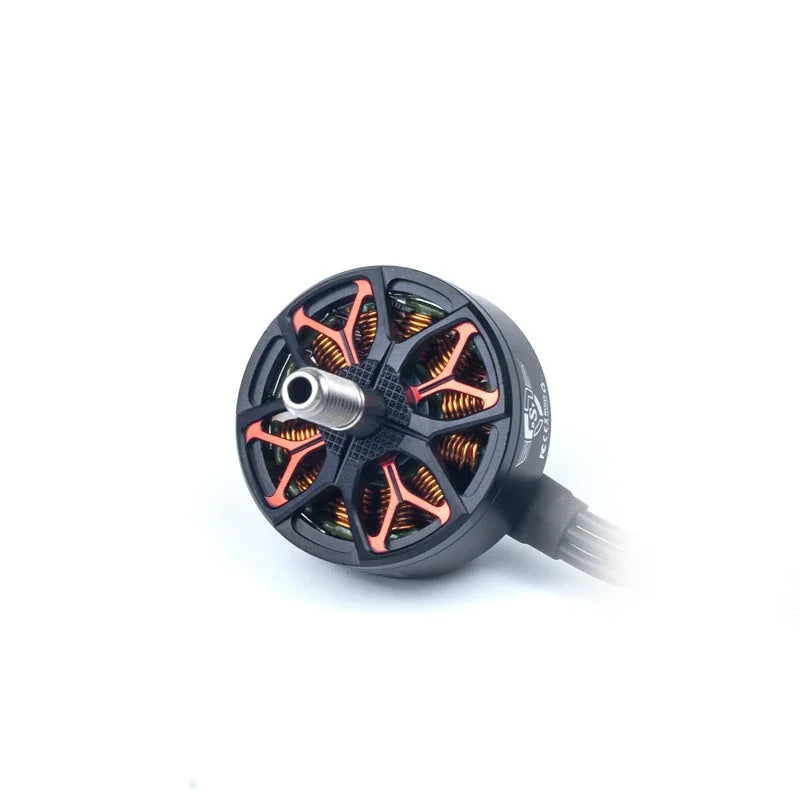

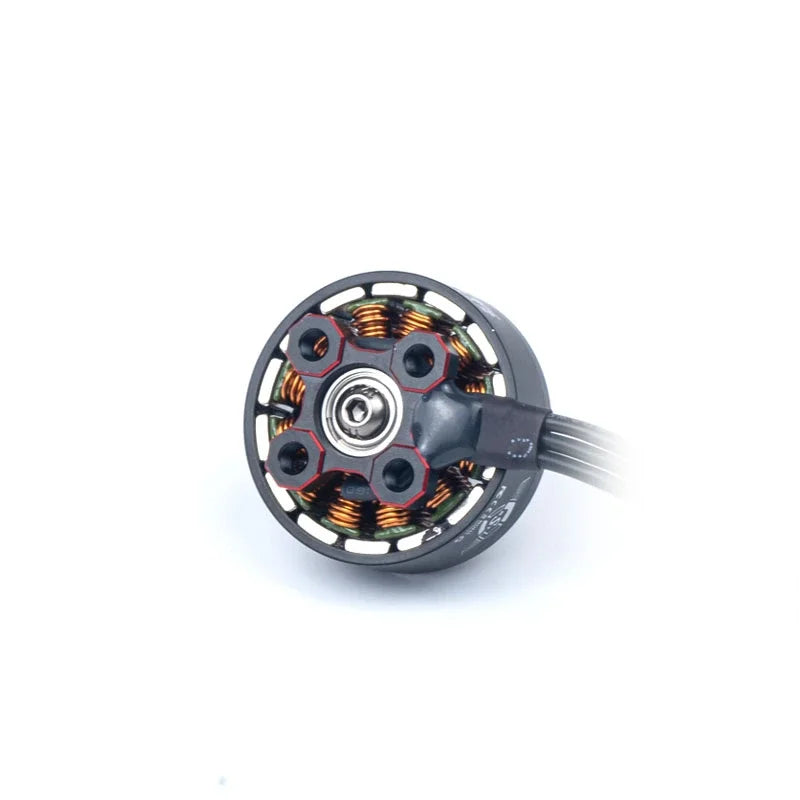

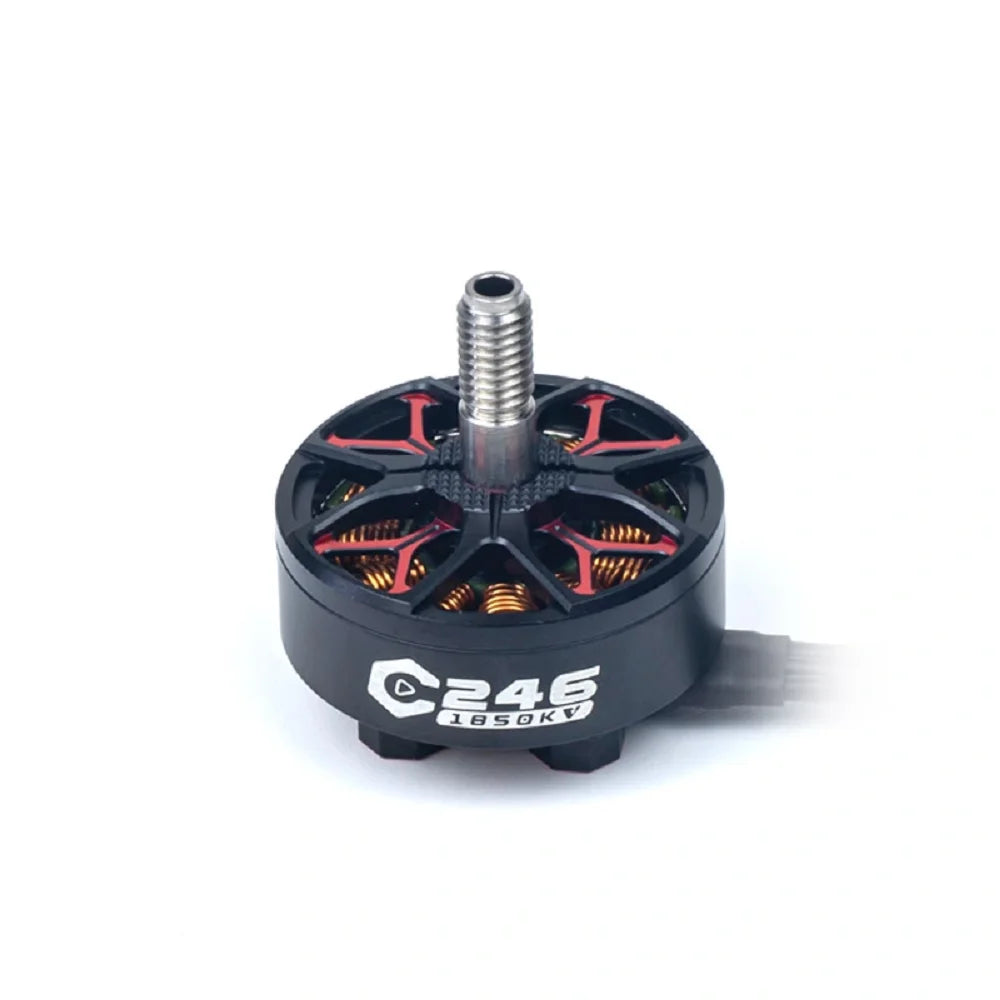

AxisFlying C246 2406 1850KV Brushless Motor

5-Inch 6S Cinematic Motor Specified by AxisFlying for the Manta5 Cinematic Configuration

SPECIFICATIONS

• Brand Name: NONE

• Four-wheel Drive Attributes: Assemblage

• High-concerned chemical: None

• Is Batteries Included: No

• Is Electric: Other Battery

• Is it battery/power supply: N

• Is it charger/adapter: N

• Material: Composite Material

• Model Number: C246

• Origin: Mainland China

• Recommend Age: 14+y

• Use: Vehicles & Remote Control Toys

• Wheelbase: Bottom Plate

C Series Motor

With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.

The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.

Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.

The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

Forword

• The C246 motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.

• We've designed the C series motors with the contribution of the cinematic FPV experts: Antoine DG (@Escape_fpv) and Fry (@Fry_fpv). Their cinematic knowledge and ideas led us today to introduce you to these top-grade cinematic motors.

• We want to thank David and Jasonfpv who helped us with their repeated testing and feedback to accelerate the presence of Axisflying in the growing cinematic FPV market.

Bearing Shield Technology

• An IP53 rating dustproof and waterproof bearing placement design.

• BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng.

• Increased thrust effciency and say goodbye to crush motor bearings

Specs

• 1650KV: is for 6inch props @6S of cinematic shooting

• 1850KV: is for 5inch props @6S of speed cinematic shooting (such as motorcycle race)

• 2050KV: is for 5inch props @6S of sbang freestyle

• Configuration: 12N14P / N52H arc magnet

• Motor stator size: 2406

• Motor mounting hole size: 4*M3 (Φ16mm)

• Motor cables: AWG 20#, 150MM

• Motor dimensions (Dia Len): Φ29.331.8MM / M5 shaft

• Motor weight (including 150MM cables): 31g

• The motor is very powerful that can get over 2KG and most current is about 45A
