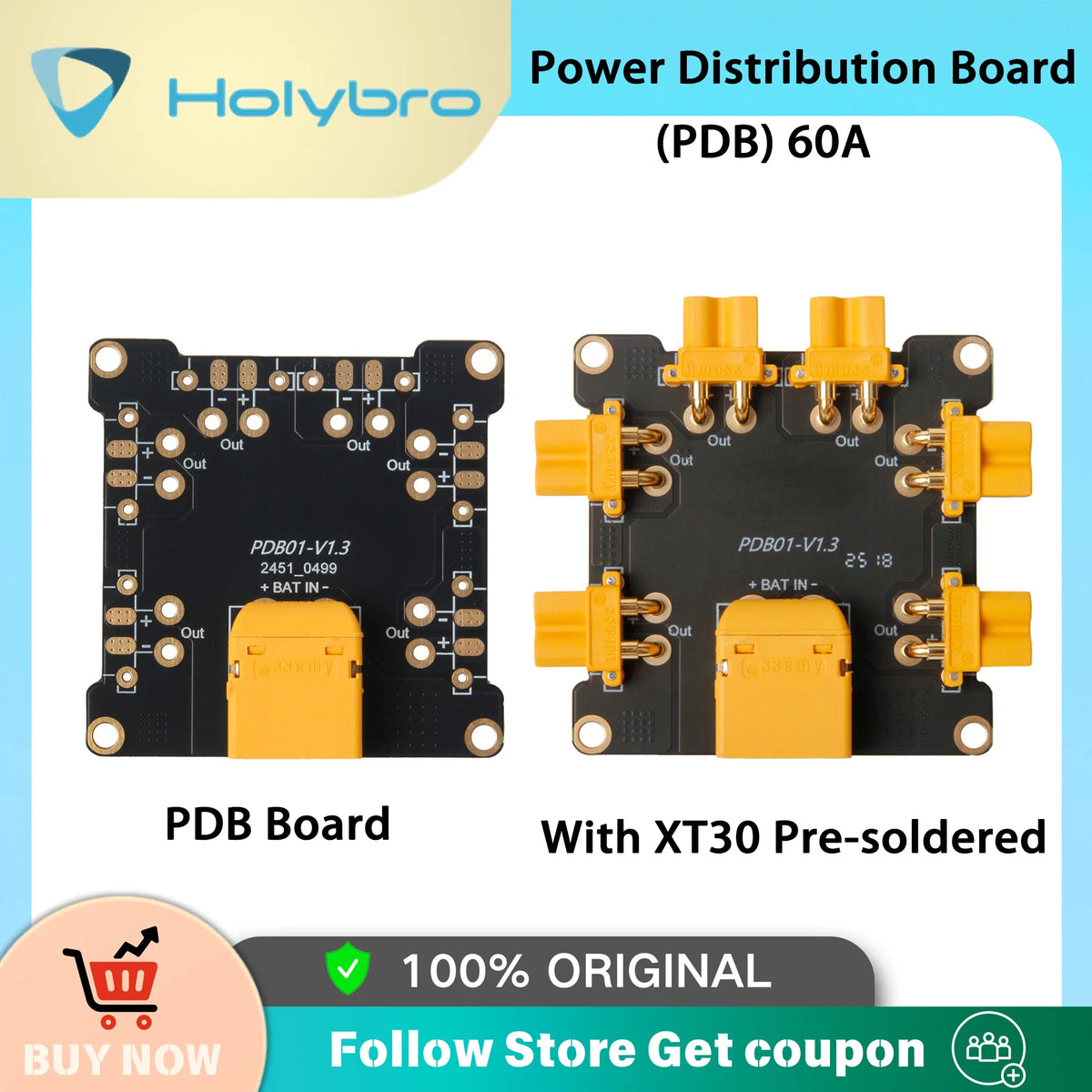

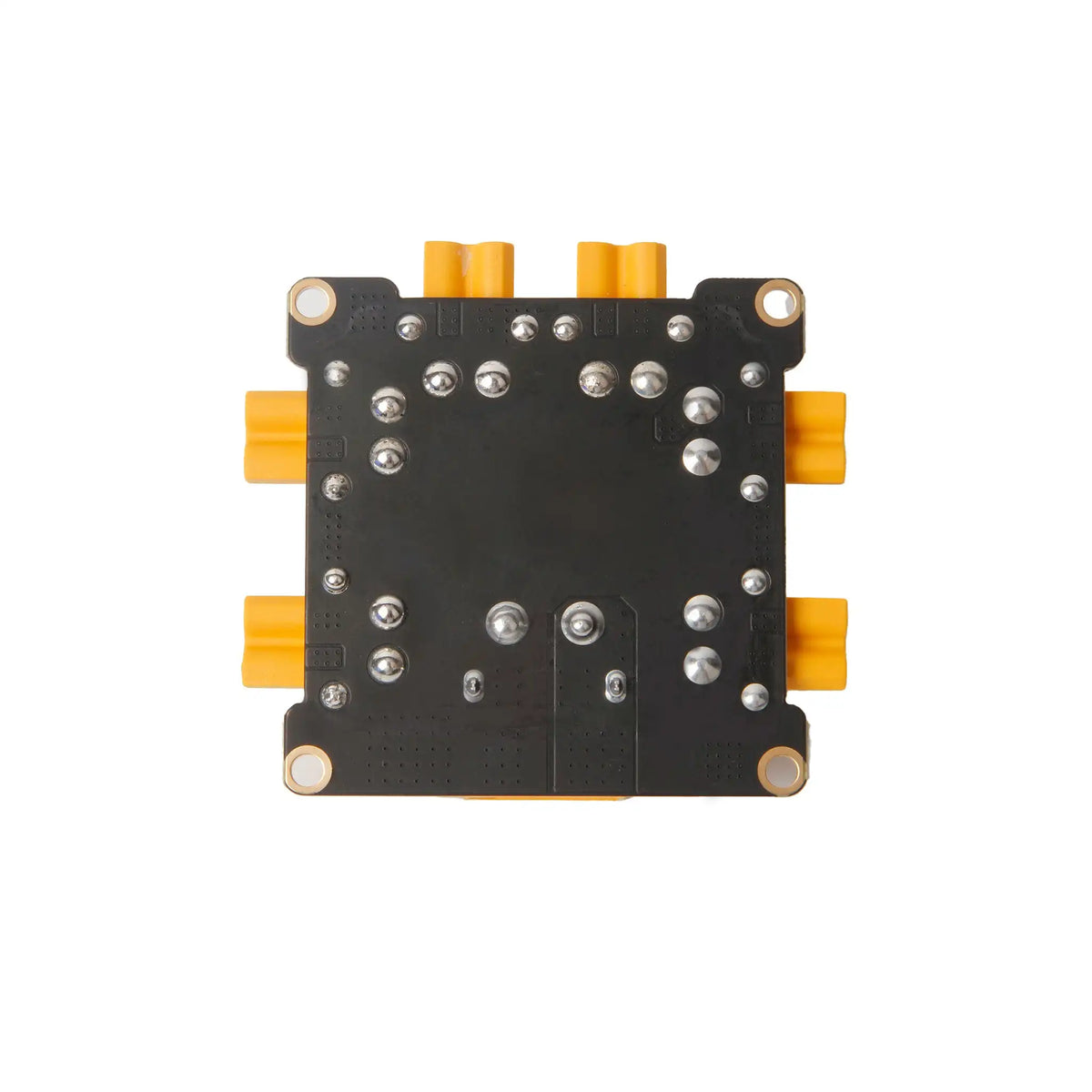

Power Distribution Board (PDB) 60A - XT30 pre-soldered

Holybro 60A power distribution board with XT60 and pre-soldered XT30 connections for clean X500/X650-style power distribution.

SPECIFICATIONS

Brand Name: SKYEH

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Origin: Mainland China

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Product Overview

The Holybro 60A Power Distribution Board (PDB) is a high-performance power supply hub specially designed for the PM02/PM02D Power Modules. It provides a stable and efficient power distribution solution for multi-rotor drones. Integrated with high-current pads and pre-soldered connectors, it simplifies the overall wiring of the drone, reduces the risk of short circuits, and is compatible with mainstream models such as the X500 V2.

Core Features

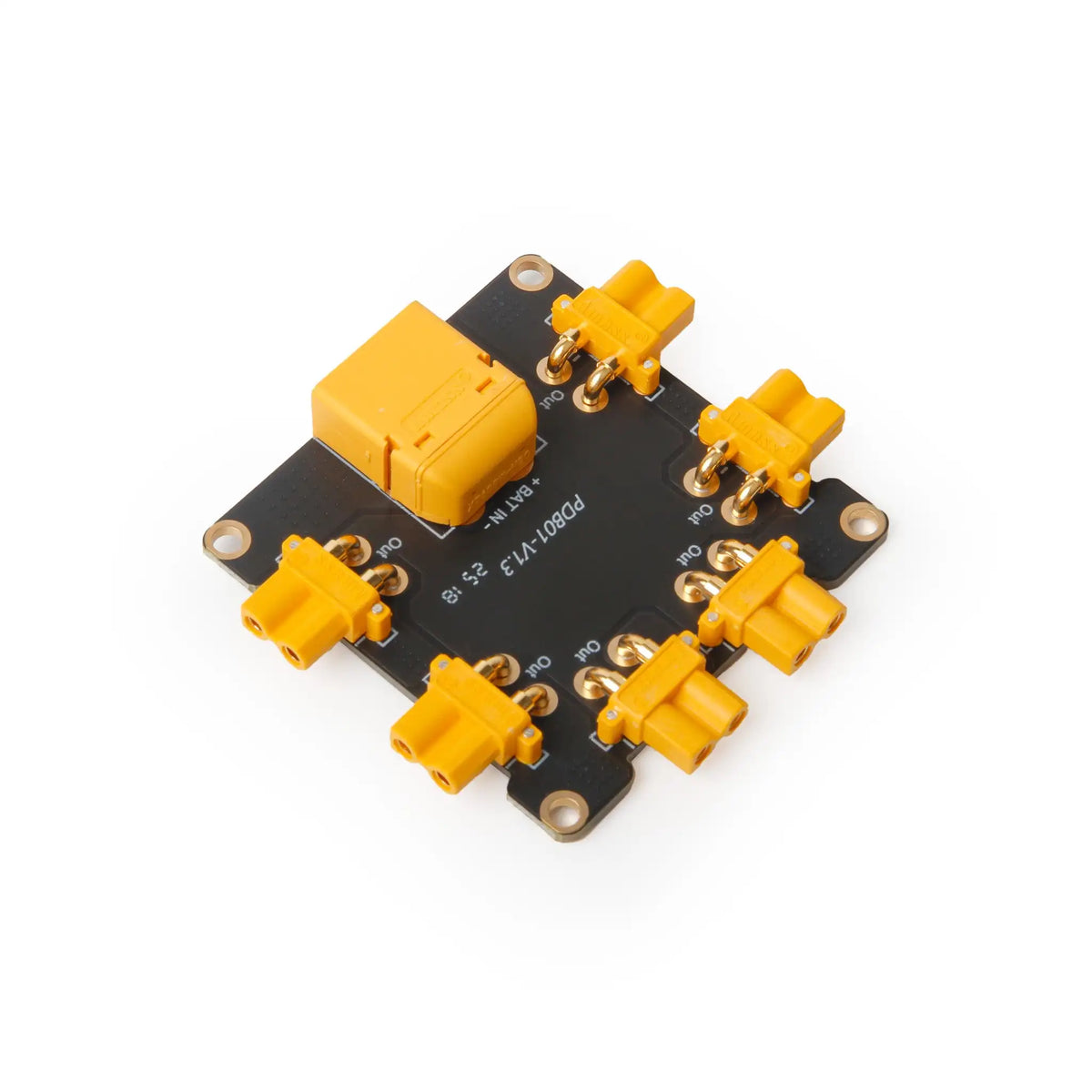

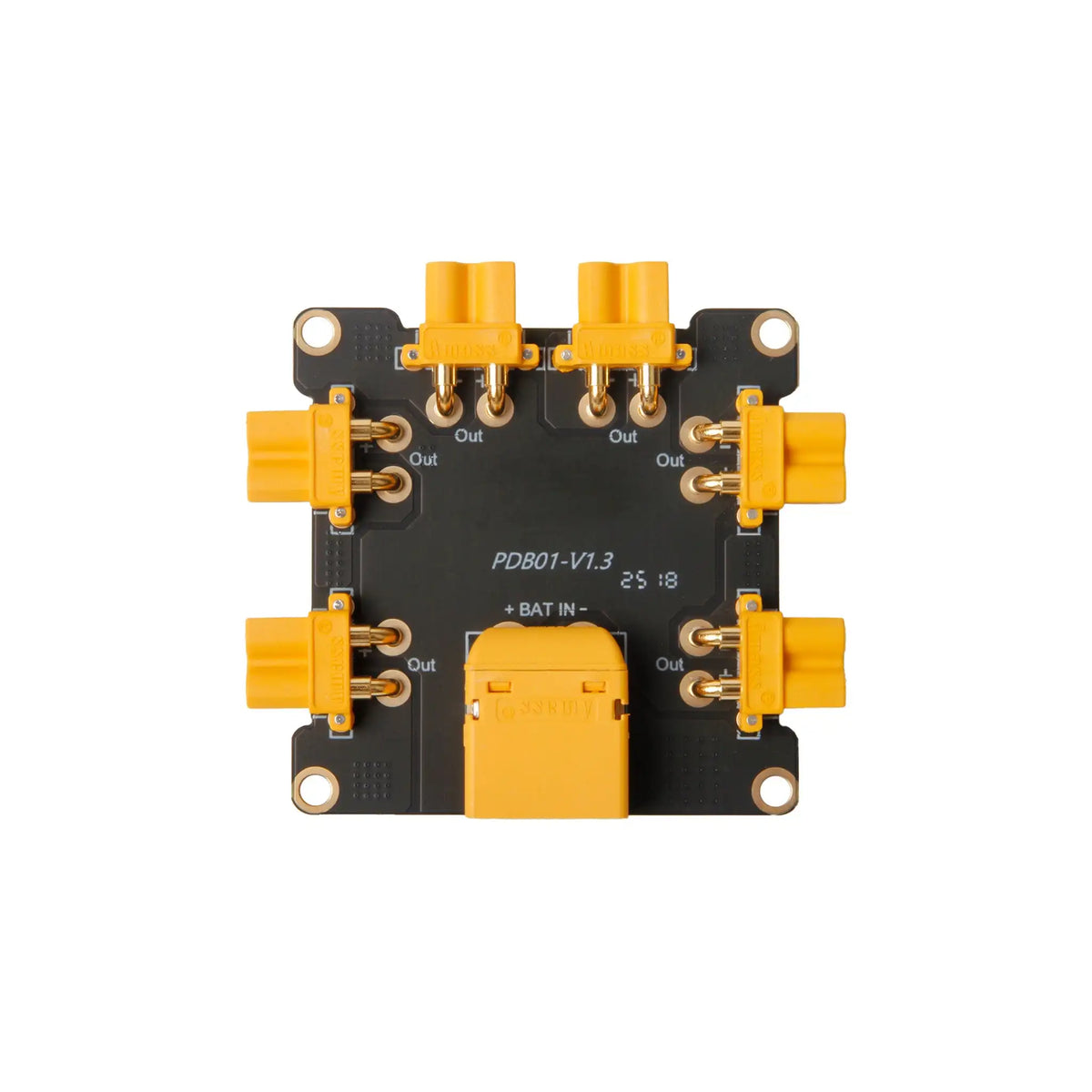

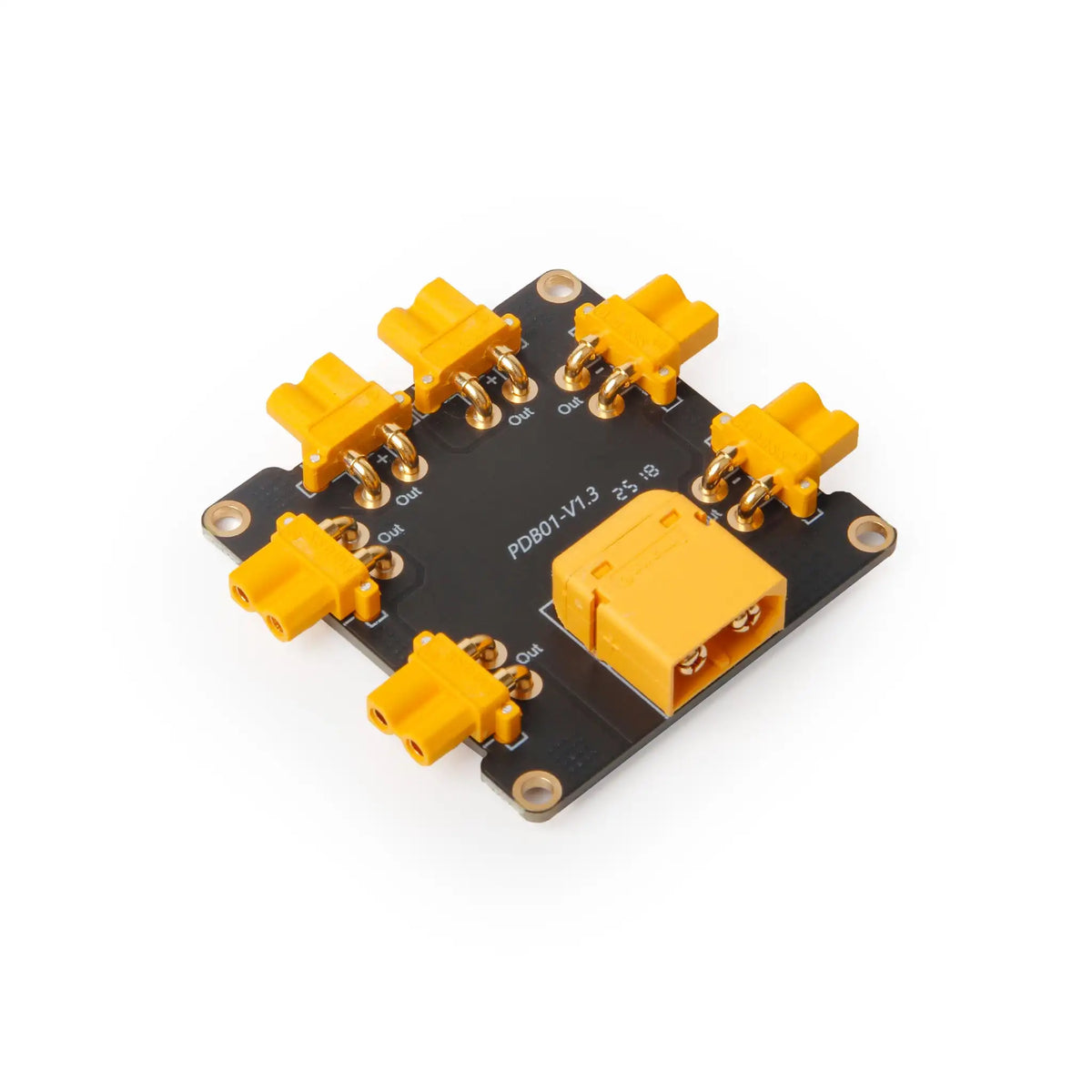

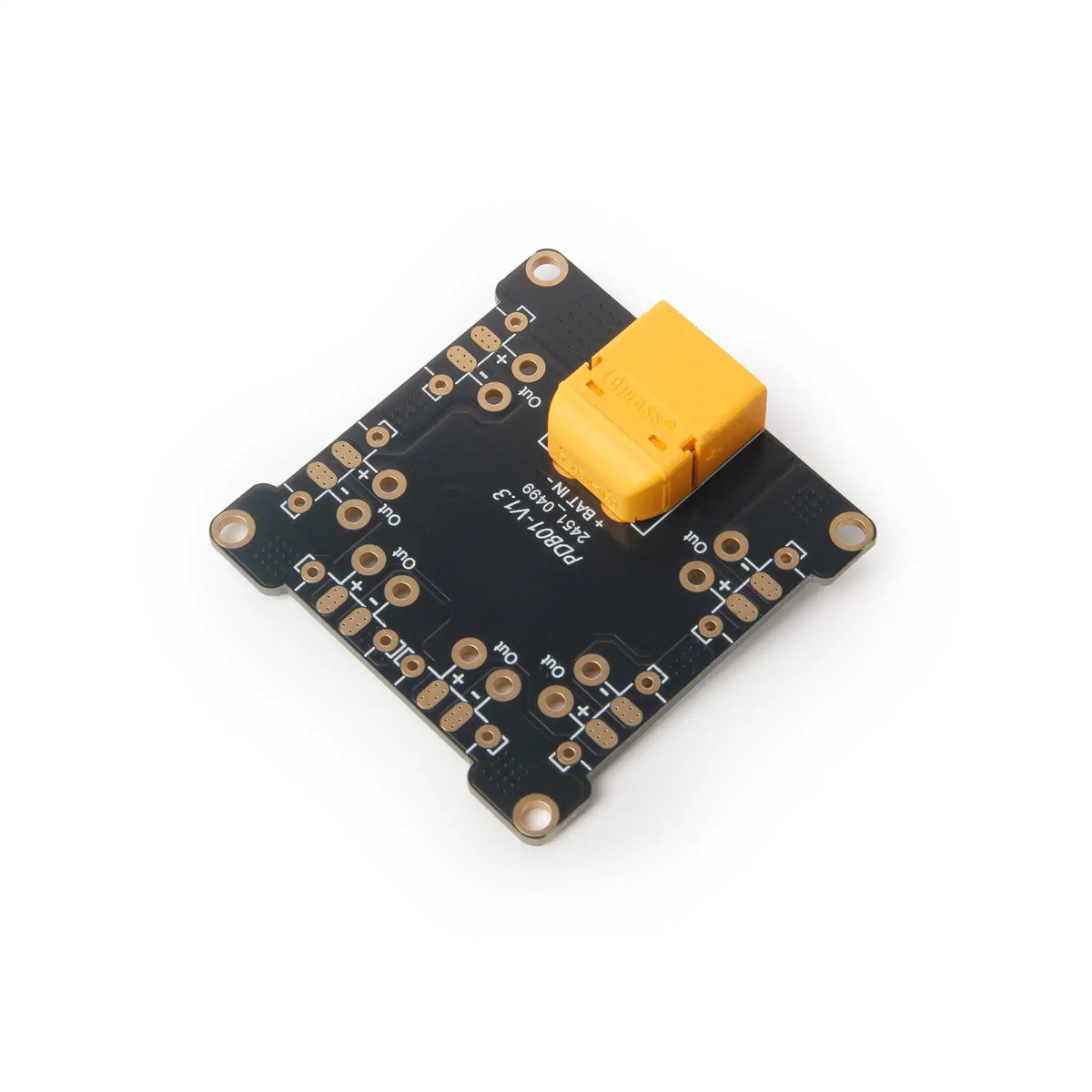

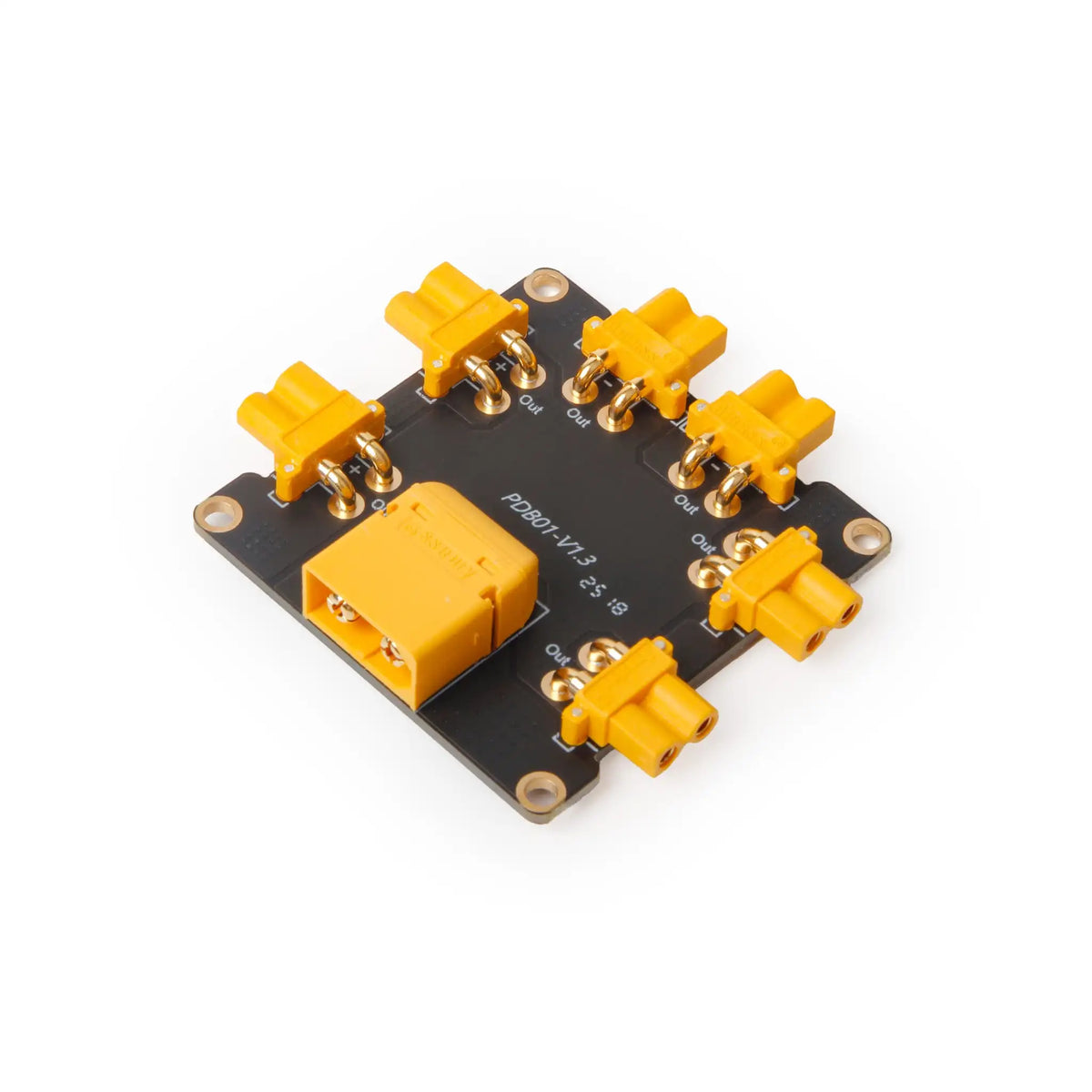

• Dual Options Available: Two versions are provided - with pre-soldered XT30 and without XT30, meeting different installation needs. The version with pre-soldered XT30 is compatible with the ESC and motor combination of the X500 V2.

• High Current Capacity: 60A continuous rated current and 120A short-term peak current (≤60 seconds).

• Plug-and-Play Connectors: Standard pre-soldered XT60 connector for connecting power modules and batteries.

• Standard Installation Dimensions: 50×50mm overall dimension, 45×45mm mounting hole spacing, fixed with M3 screws.

• High Compatibility: Exclusively compatible with PM02/PM02D power modules; not applicable to power modules with built-in power distribution such as PM03/PM06/PM07.

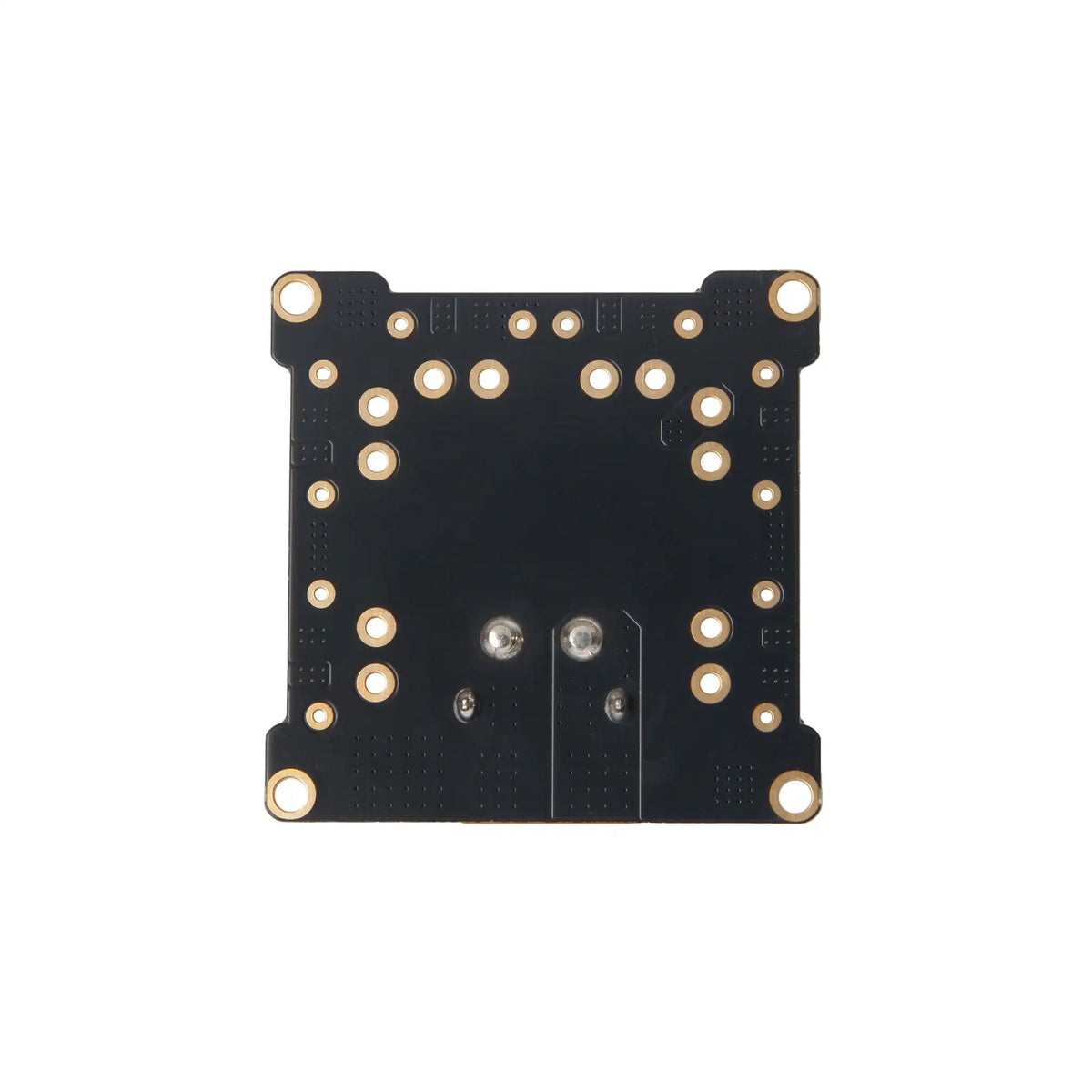

• Reliable Performance: Adopting high-quality circuit board and high-current copper foil design, it is vibration-resistant and high-temperature resistant.

Specifications

Product Model: Holybro PDB 60A

SKU: 18069 (Without XT30) / 18069A (With XT30)

Rated Current: 60A (Continuous)

Peak Current: 120A (≤60 seconds)

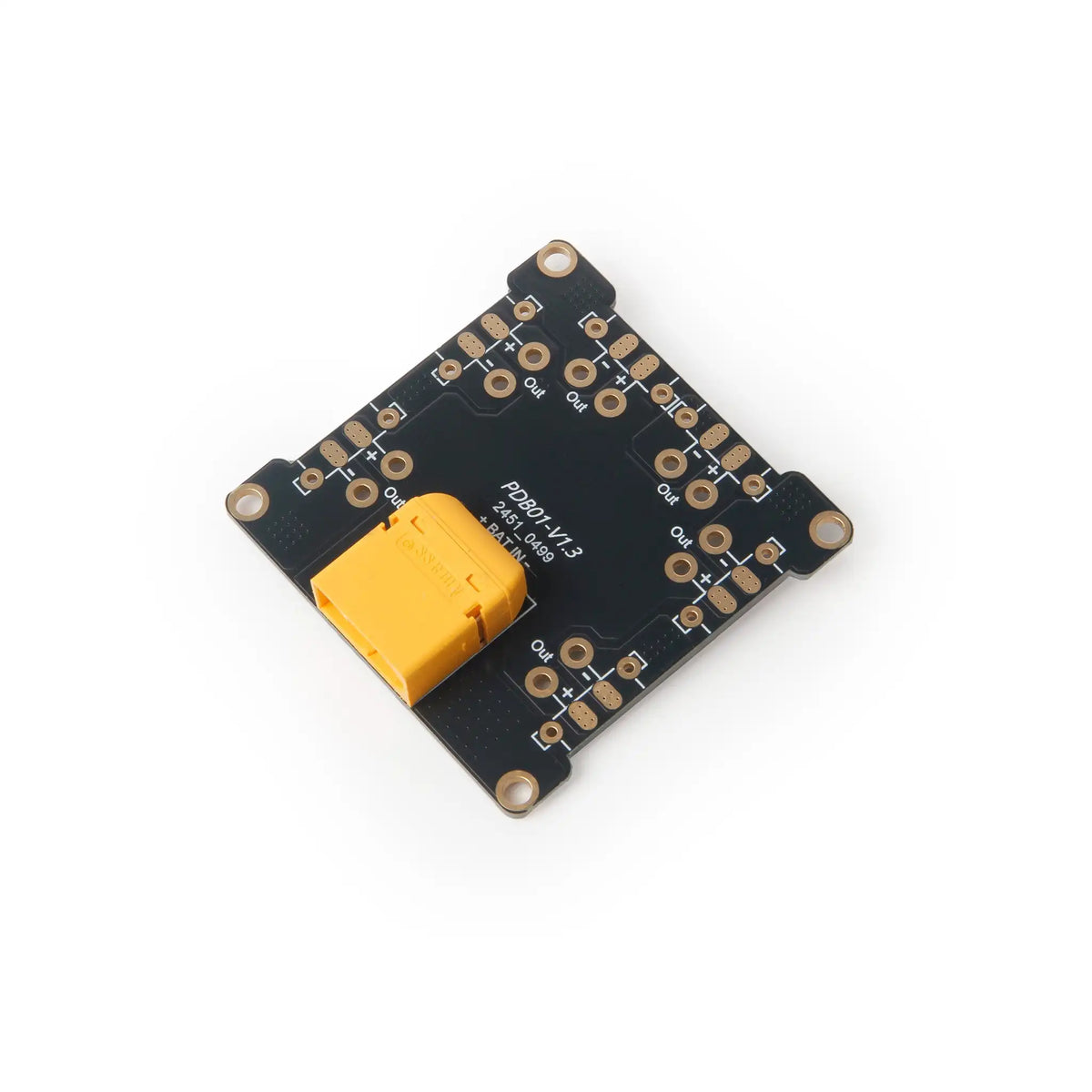

Input Connector: XT60 (Pre-soldered, for Power Module/Battery)

Output Connector: XT30 (Pre-soldered optional, for ESC/Motor)

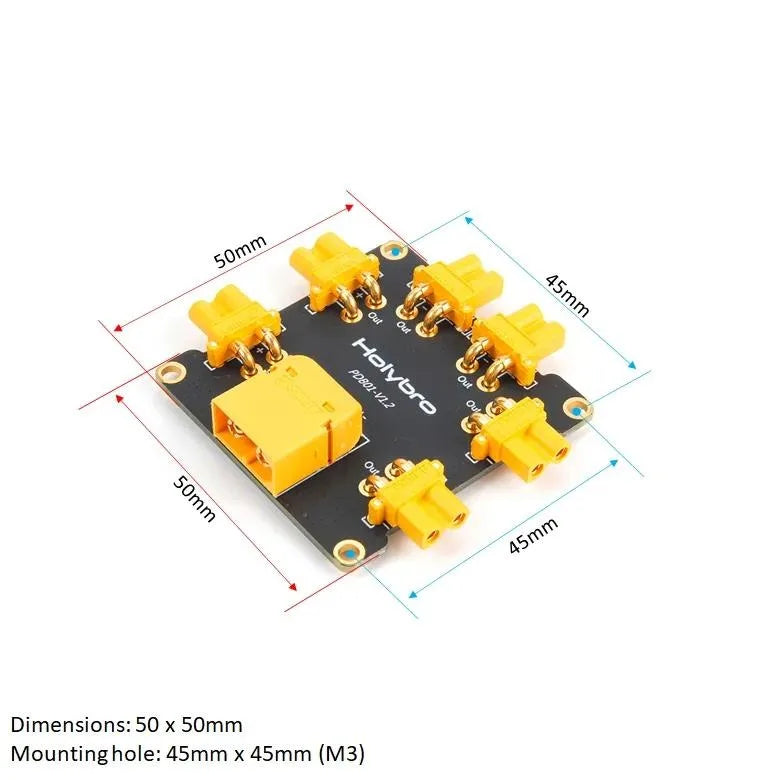

Overall Dimension: 50×50mm

Mounting Hole Spacing: 45×45mm (M3)

Compatible Models: X500 V2, Models matched with PM02/PM02D Power Modules

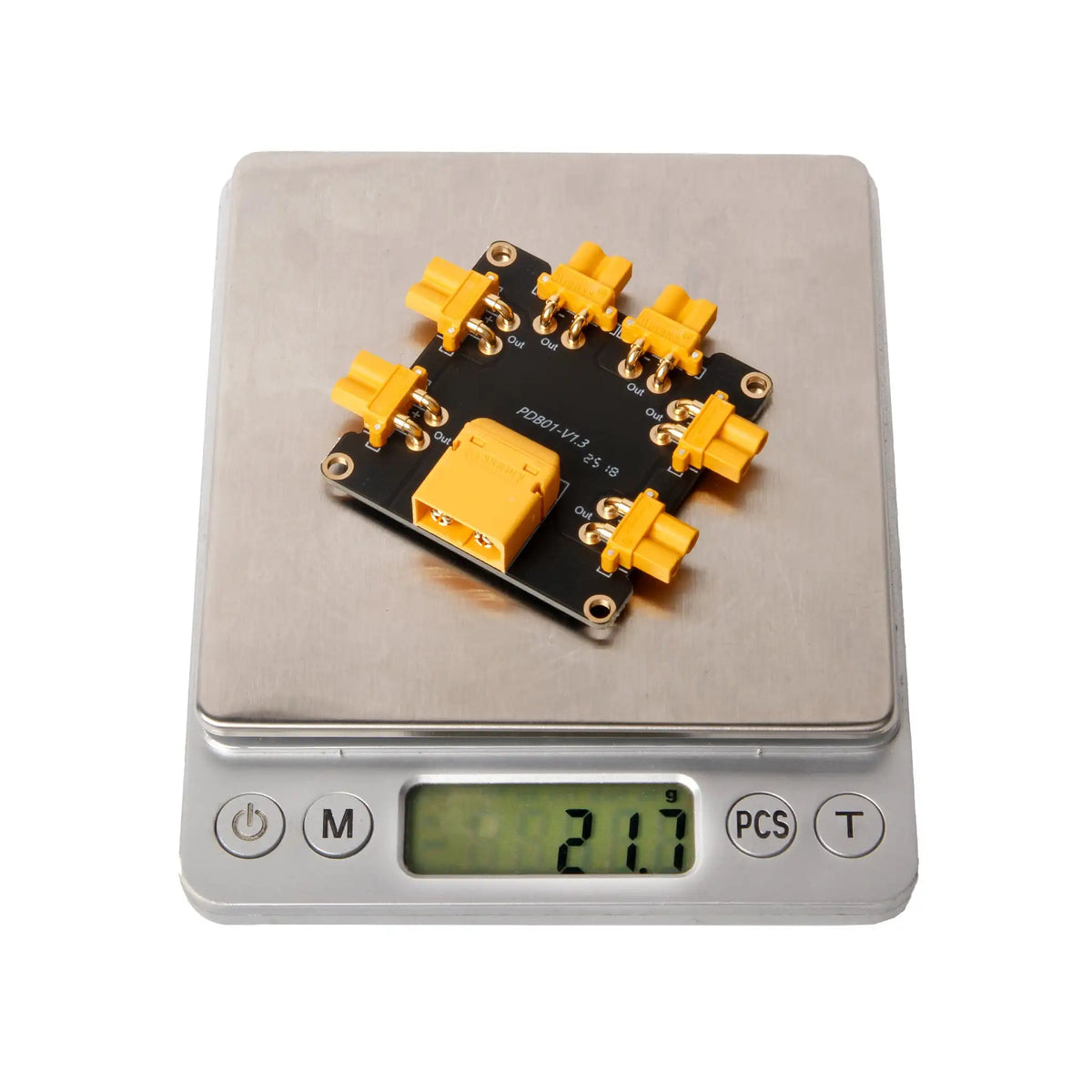

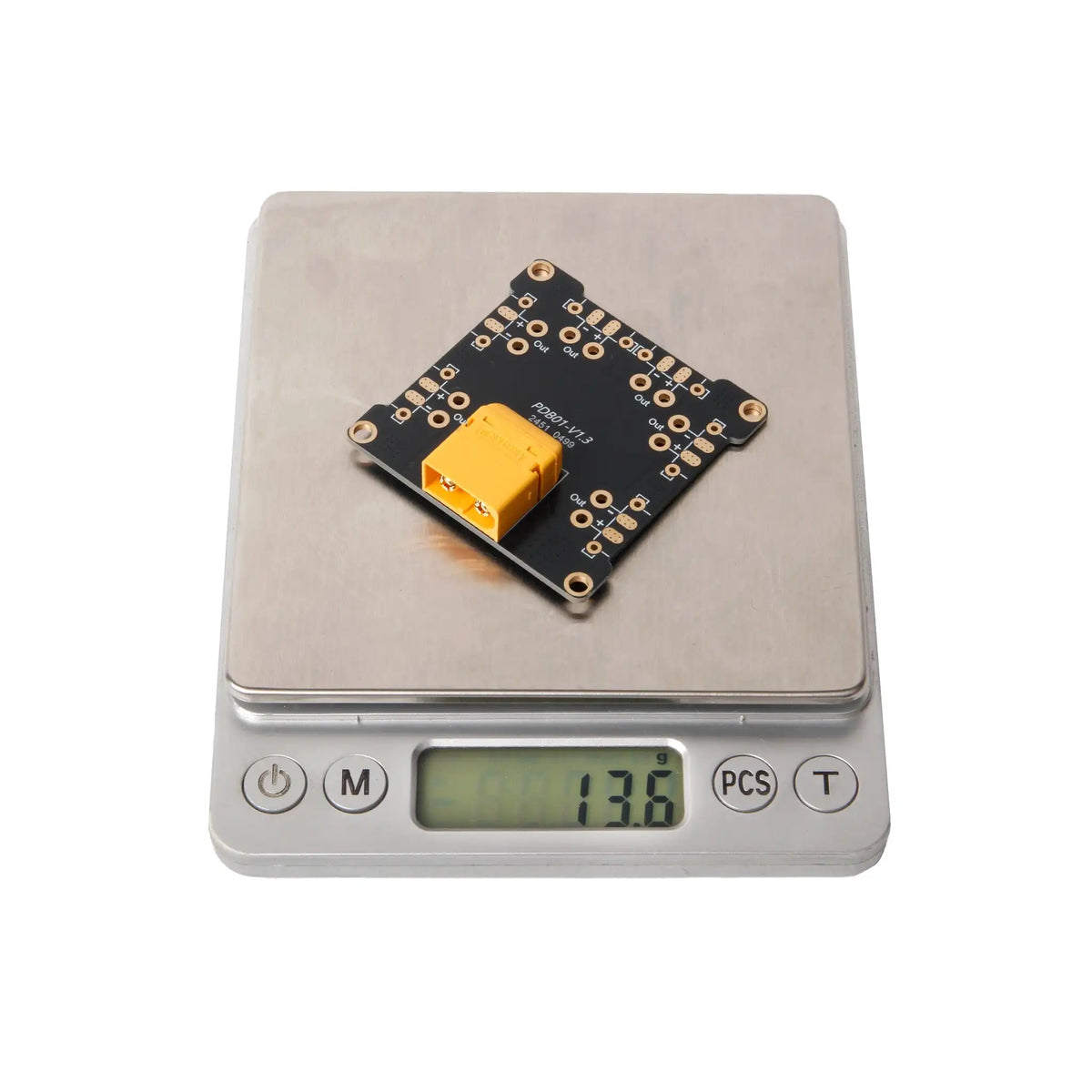

Weight: Approx. 21g

Product Usage Instructions

Installation Steps

1. Fix the PDB: Use M3 screws to fix the PDB in a suitable position on the drone frame, ensuring it is firmly installed.

2. Connect Battery and Power Module: Insert the battery plug into the XT60 input connector of the PDB, then connect the corresponding interface of the power module (PM02/PM02D) to the PDB.

3. Connect ESC and Motor:

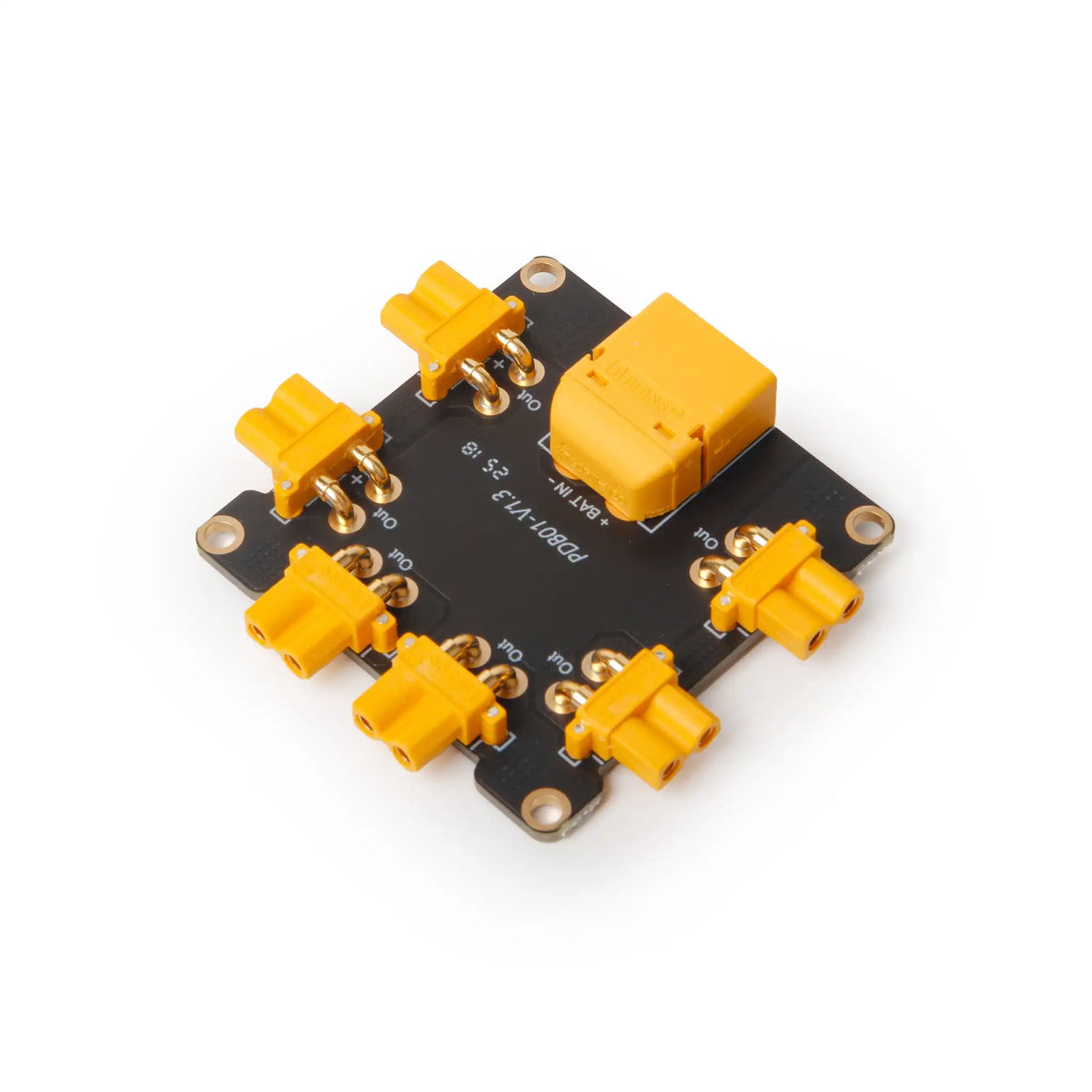

• Version with XT30: Directly insert the ESC plug into the XT30 output connector of the PDB, then connect the motor.

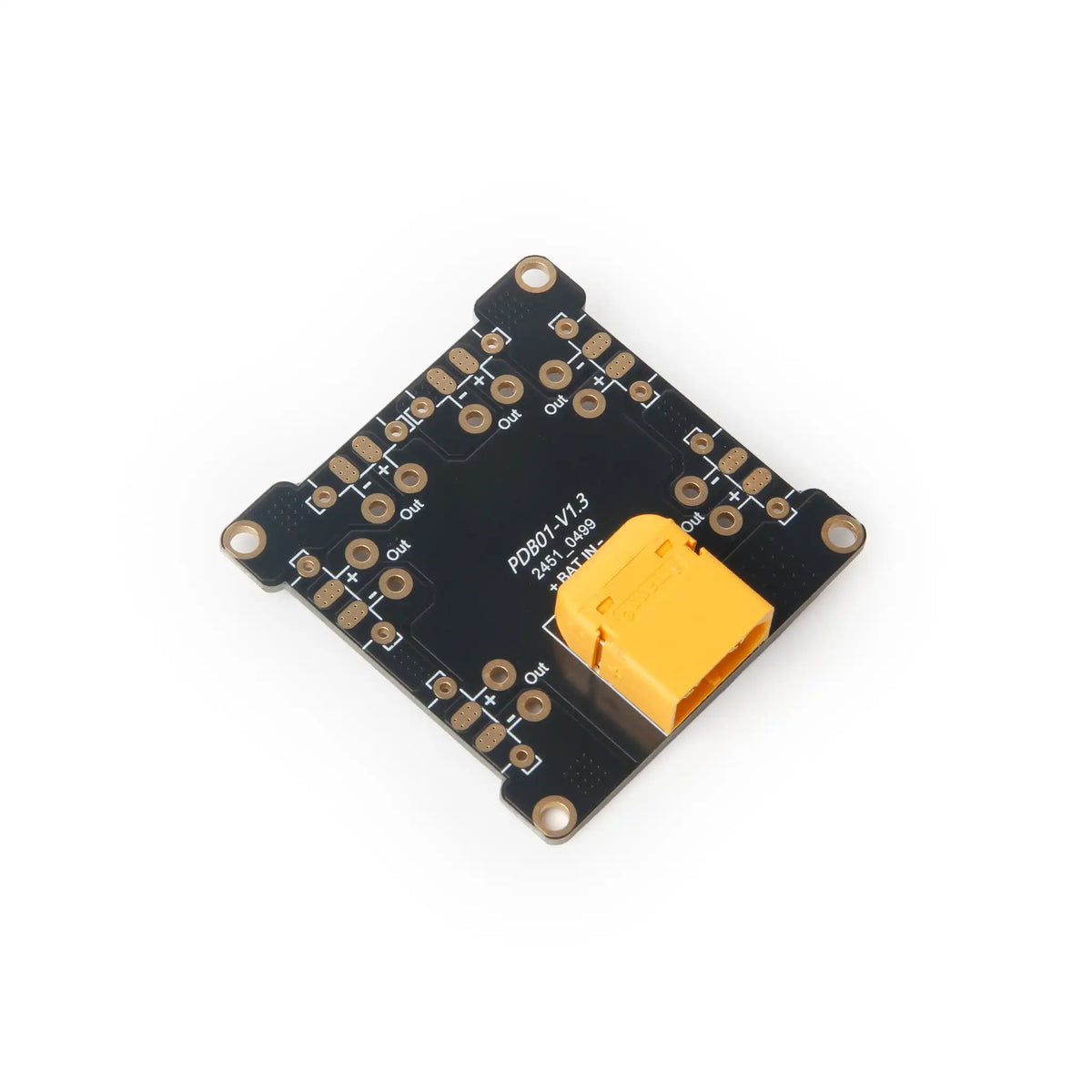

• Version without XT30: Solder the ESC wires to the pads to complete the motor power connection.

4. Wire Arrangement: Organize all connecting wires to avoid exposed, tangled wires or contact with sharp parts, preventing short circuits or open circuits.

Notes

1. Current Limitation: Follow the specifications of 60A continuous current and 120A short-term peak current. Avoid long-term overload use.

2. Compatibility Check: Before use, confirm that the power module is PM02/PM02D. Do not use it with power modules with built-in power distribution such as PM03/PM06/PM07.

3. Soldering Specifications: For the version without XT30, control the soldering iron temperature between 350-400℃ and the soldering time ≤3 seconds to avoid damaging the board layer or causing pad detachment.

4. Insulation Protection: After installation, check whether all solder joints and connectors are insulated. If necessary, use heat shrink tubing to wrap exposed solder joints to prevent short circuits.

5. Environmental Requirements: Avoid use in high-temperature, humid or corrosive environments. Check the PDB for deformation, ablation or loose connectors before flight.

Package List

1 × Holybro 60A Power Distribution Board (PDB)
