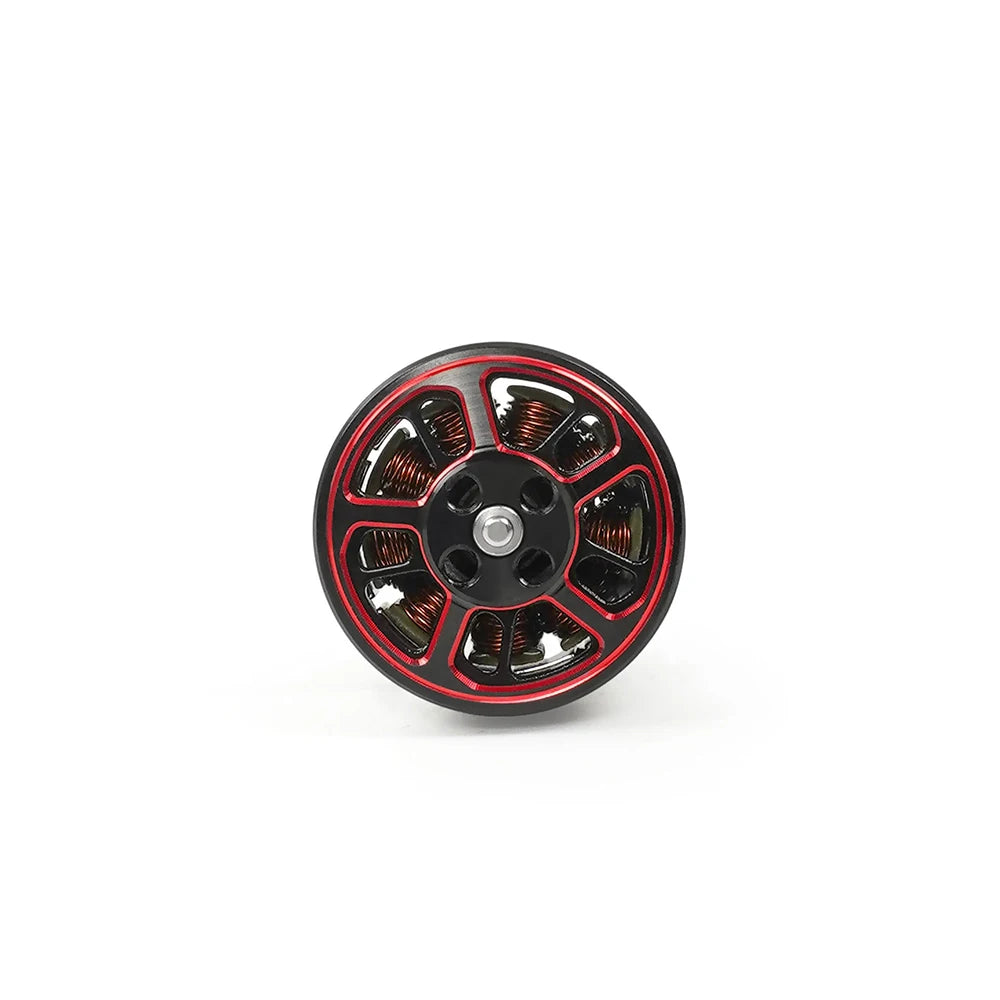

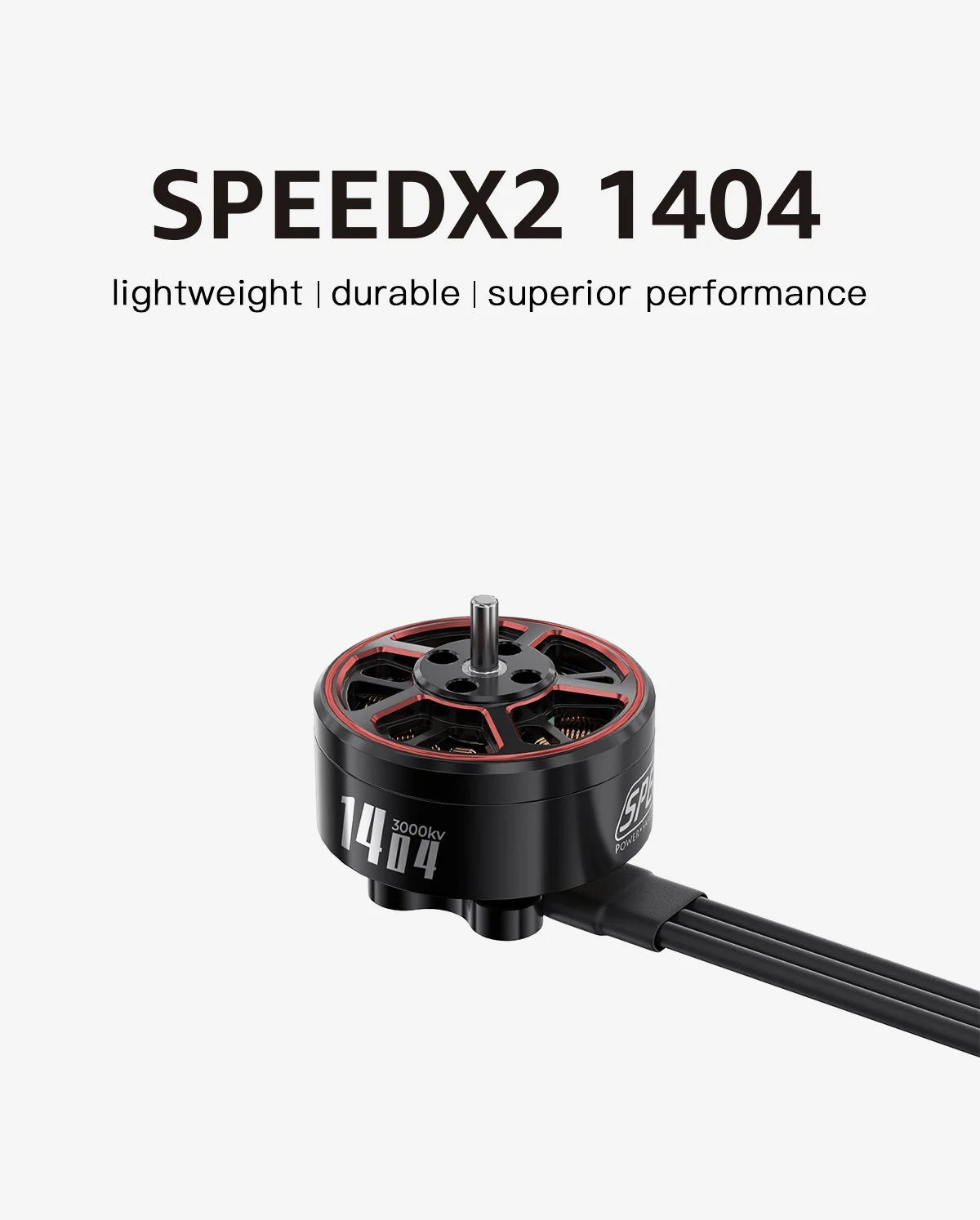

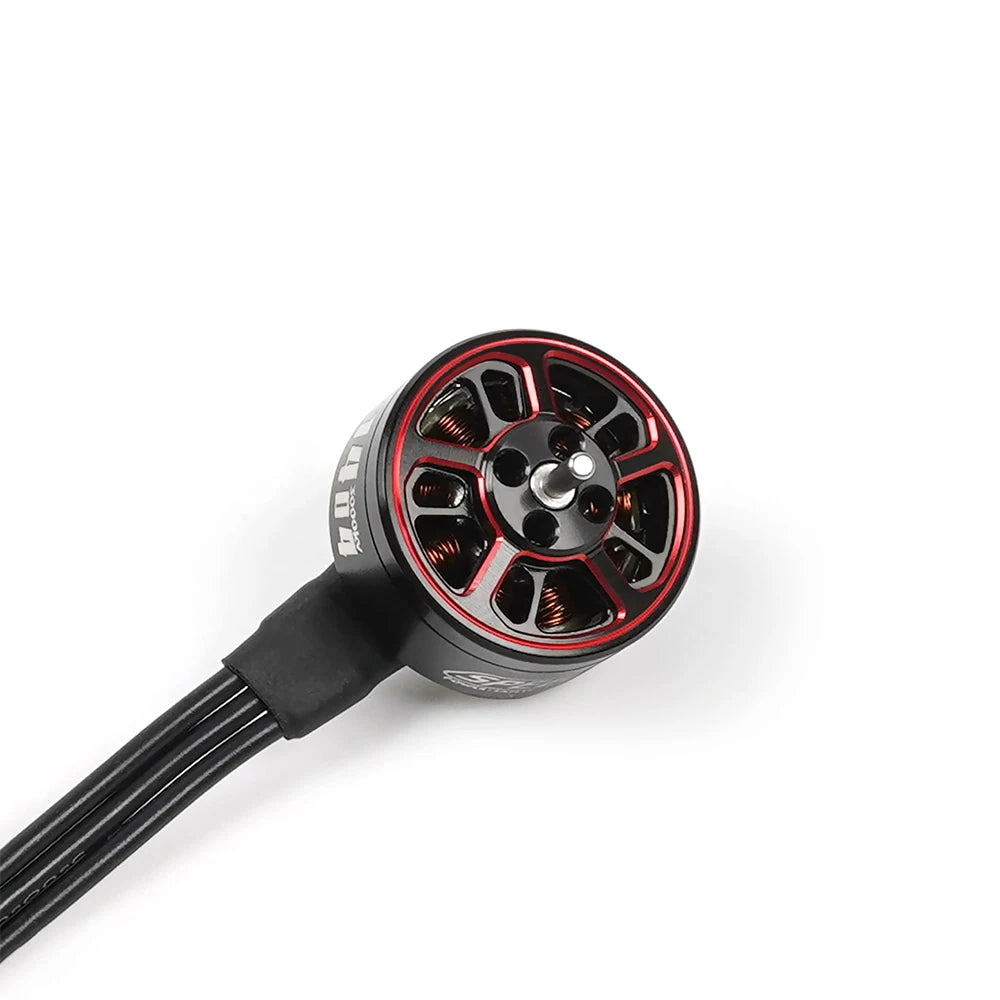

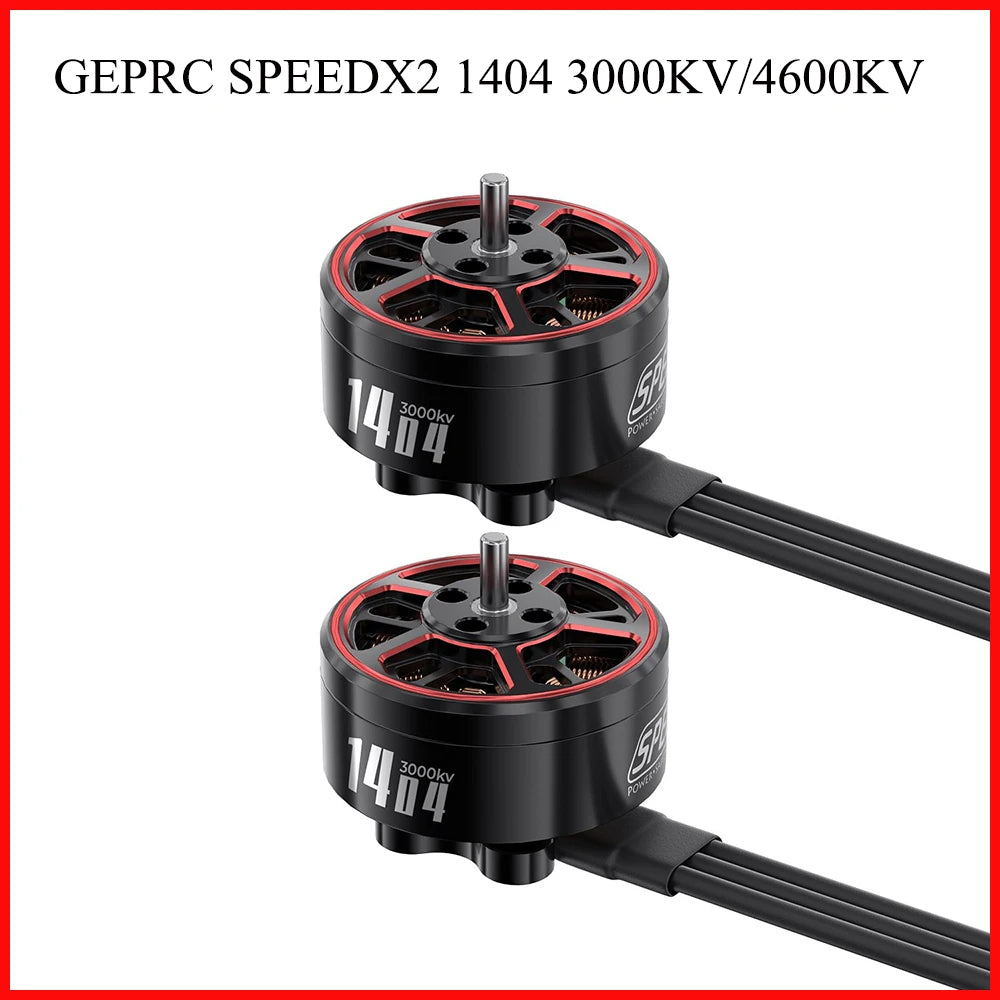

GEPRC SPEEDX2 1404 Motor 3850KV - 3850KV

GEPRC SPEEDX2 1404 Motor 3850KV - 3850KV: propulsion classified for build in Cinematic FPV.

SPECIFICATIONS

Brand Name : NONE
Certification : CE
For Vehicle Type : Helicopters
Four-wheel Drive Attributes : Motors
High-concerned chemical : None
Is Batteries Included : No
Is Electric : No battery
Is it battery/power supply : N
Is it charger/adapter : N
Material : Metal
Model Number : GEPRC SPEEDX2 1404 3000KV/4600KV
Origin : Mainland China
Quantity : 1 pcs
RC Parts & Accs : Motors
Recommend Age : 14+y
Remote Control Peripherals/Devices : Motor
Size : 1404
Tool Supplies : Assembled class
Upgrade Parts/Accessories : Gear
Use : Vehicles & Remote Control Toys
Wheelbase : Screws

Features

Red with black color is obviously high-end.

Use bearings with excellent performance and strong anti-wear ability.

Lightweight silhouette, strong power.

Suitable for 2-inch-4-inch lightweight chassis.

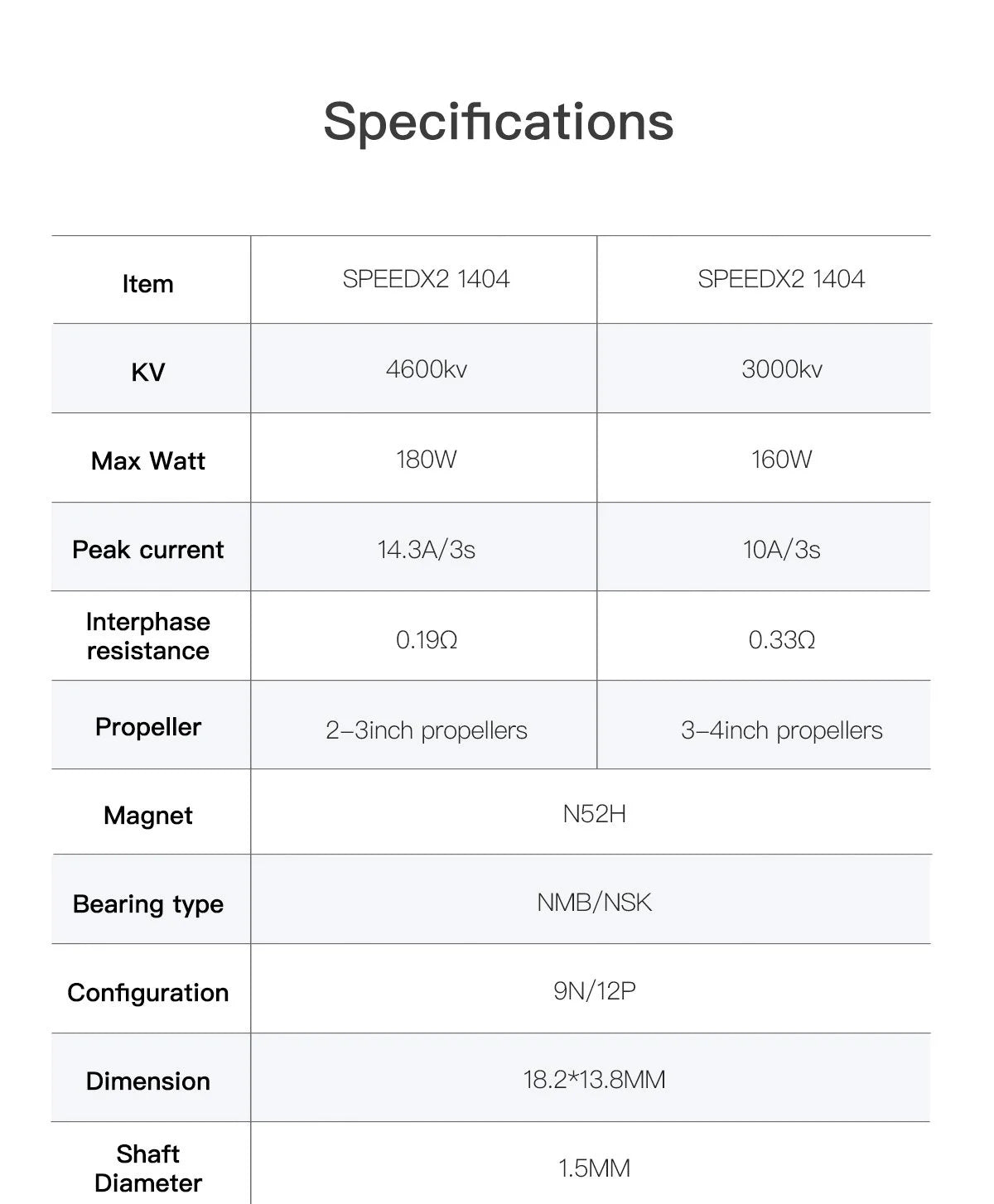

Specifications

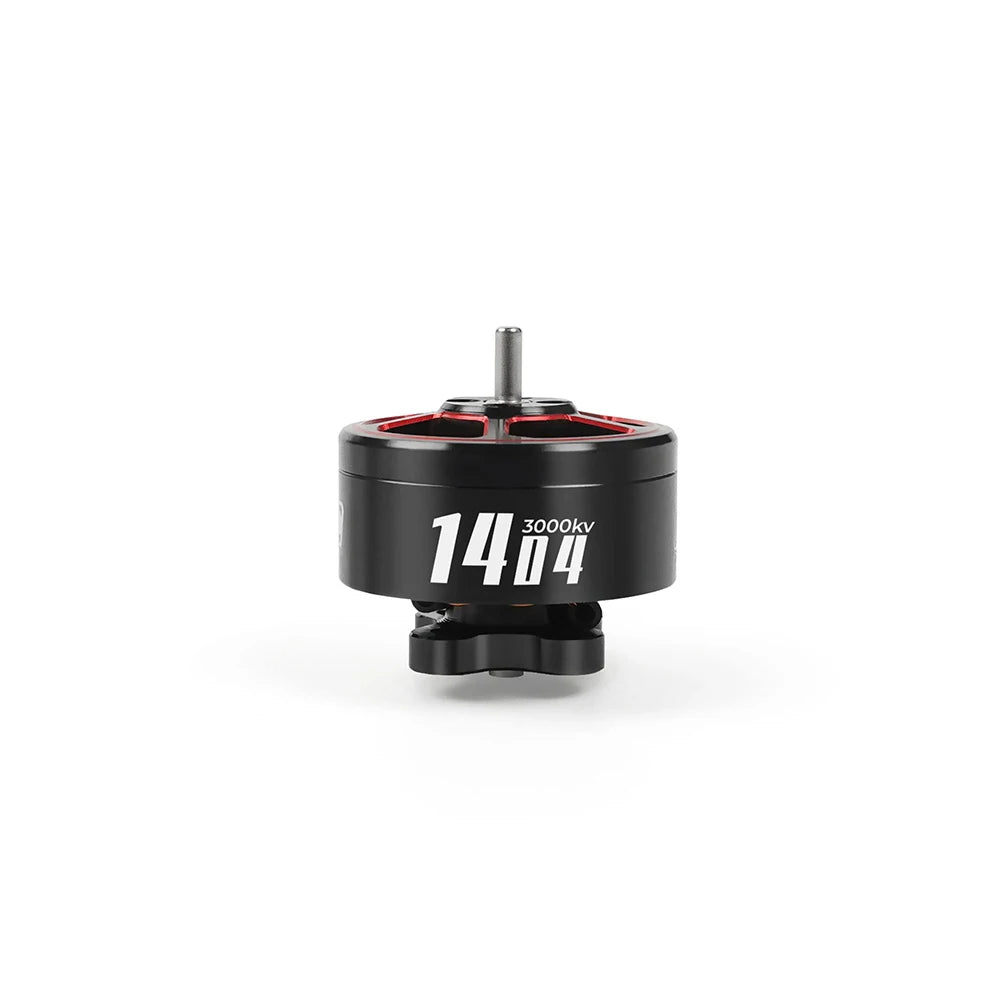

SPEEDX2 1404 3000KV Motor（Suitable for GEPRC Tern-LR40 FPV）

Model : SPEEDX2 1404 3000KV Motor
Max Watt : 160W
Peak current : 10A/3″
Interphase resistance : 0.33Ω
Magnet : N52H
Bearing type : NSK/NMB
Configuration : 9N12P

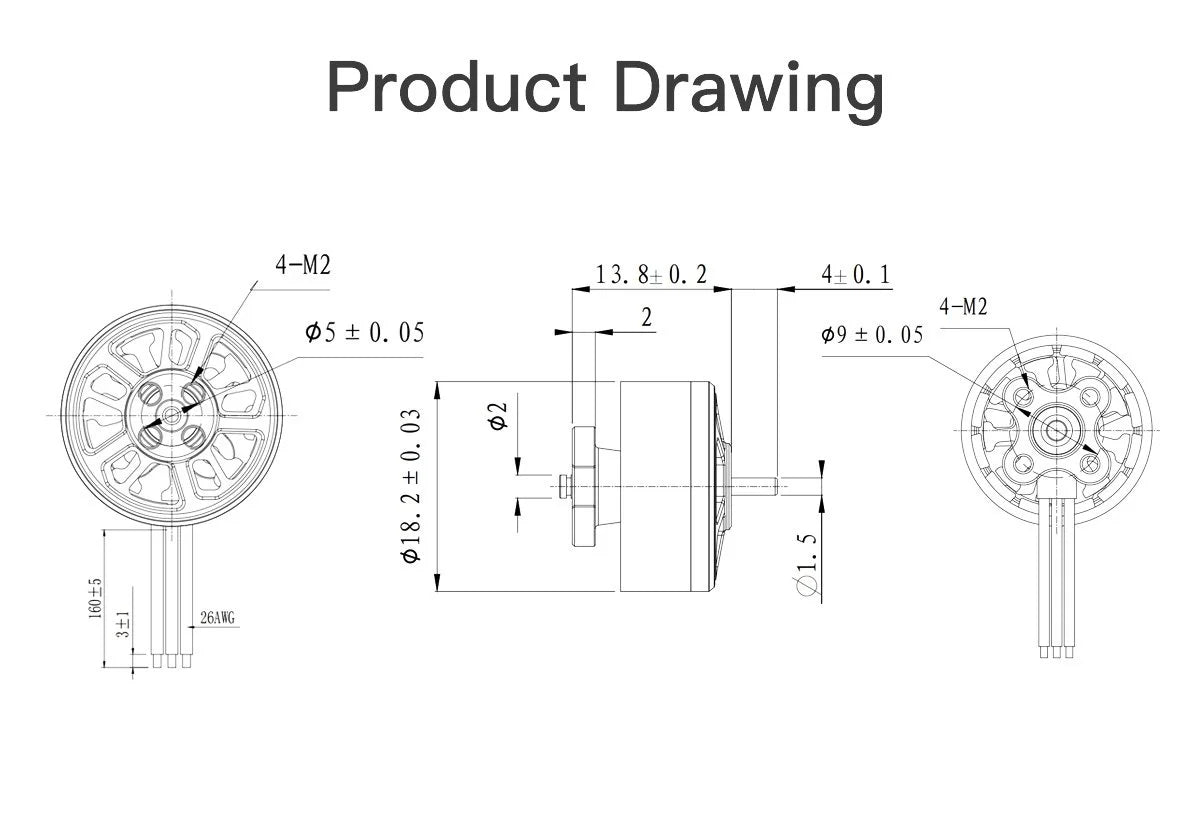

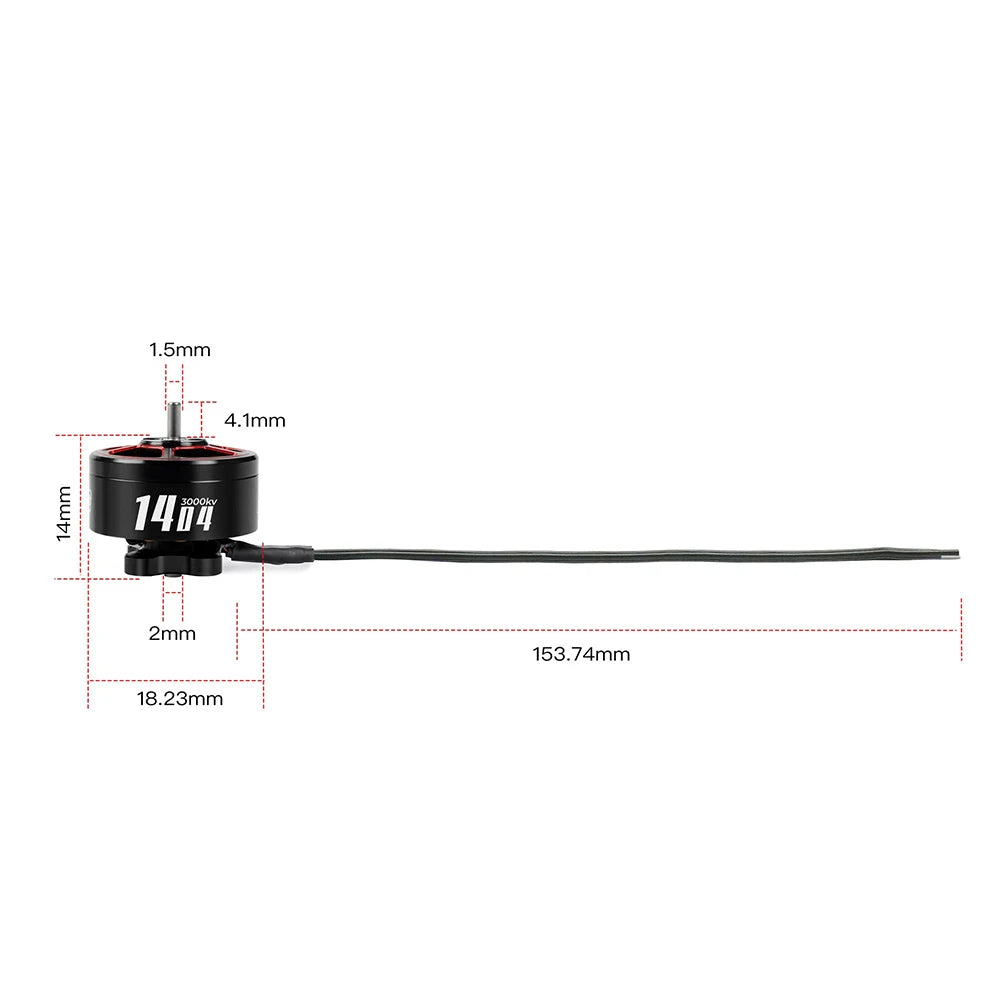

Dimension : φ18.2mm13.8mm
Shaft Diameter : φ1.5mm

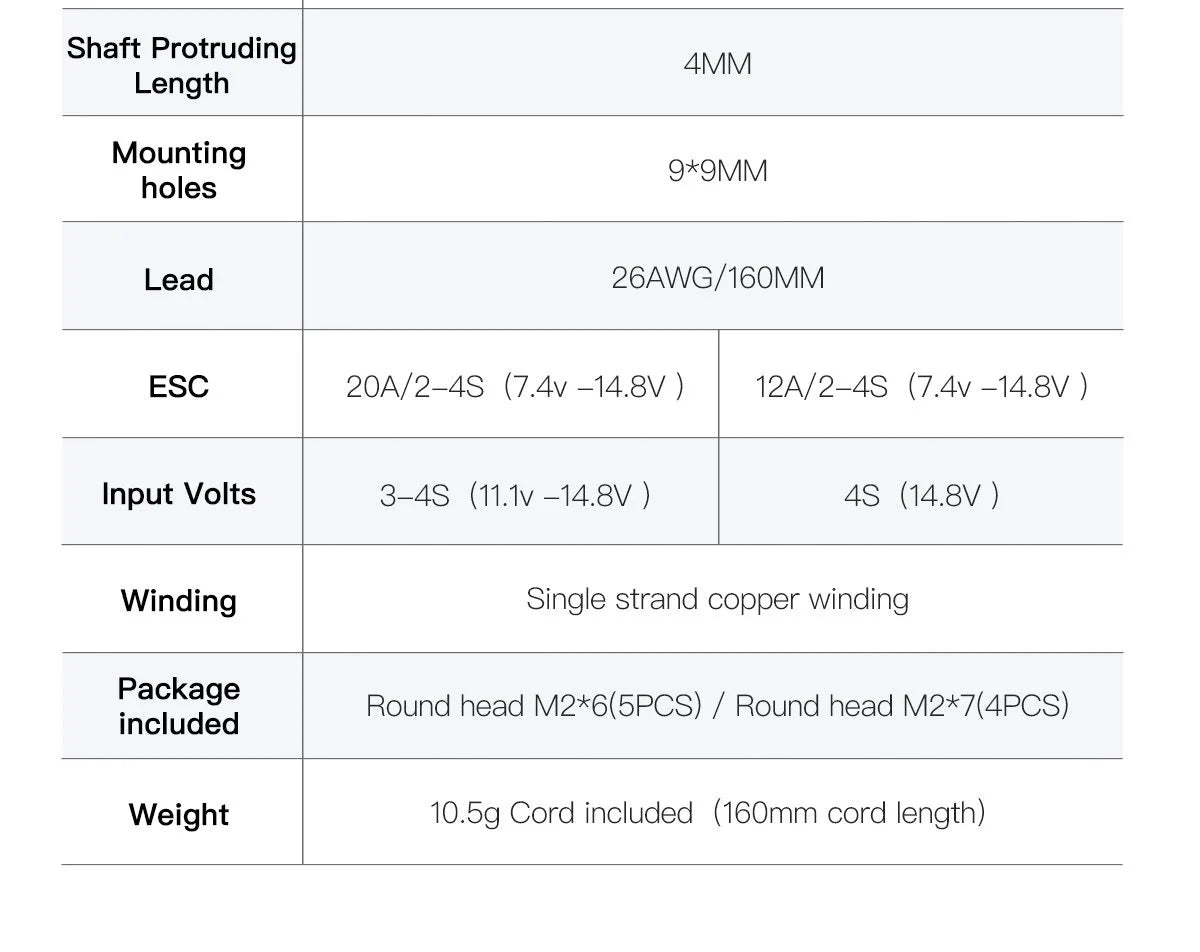

Shaft Protruding Length : 4mm
Mounting holes : 9mm9mm（M2）
Lead : 160mm/26AWG
ESC : 12A/2-4S（7.4V-14.8V）
Input Volts : 14.8V（4S LiPo)
Winding : Single strand copper winding

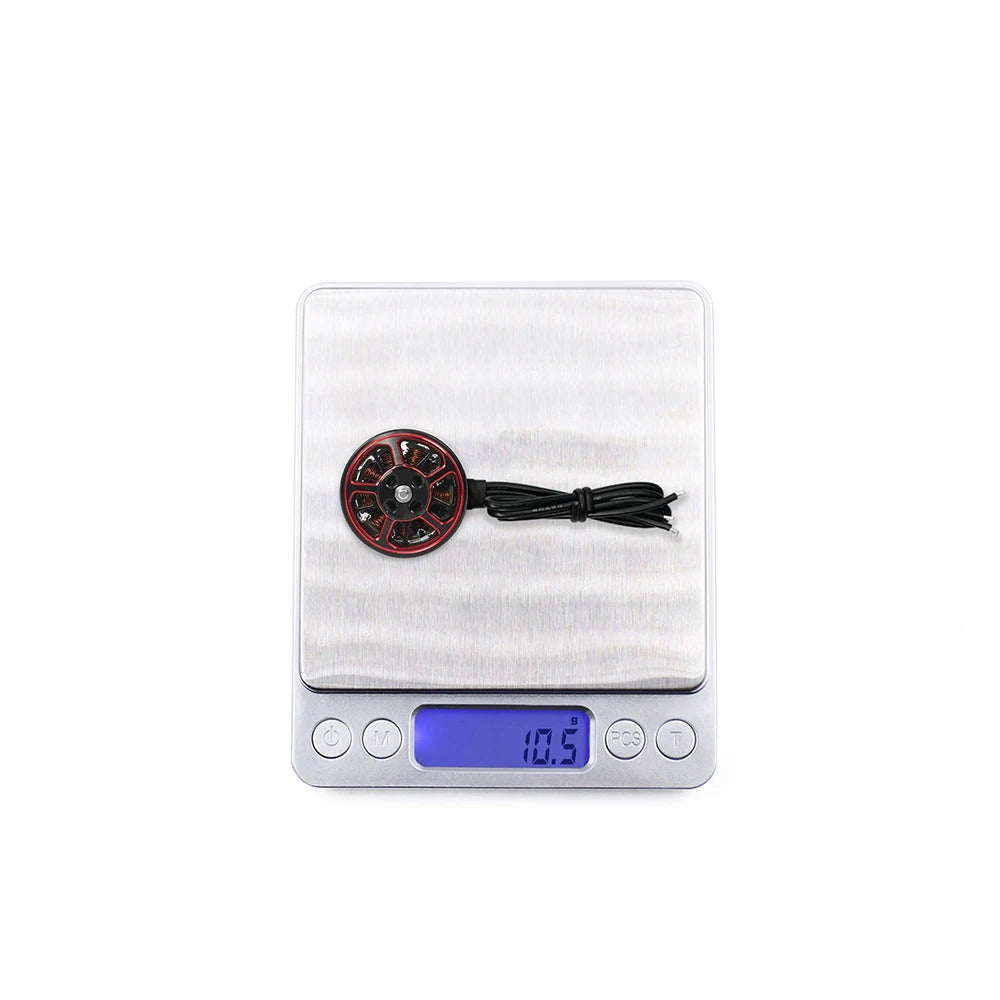

Weight : 10.5g (included wire)
Suitable for : 3 inch – 4 inch lightweight models

SPEEDX2 1404 4600KV Motor

Model : SPEEDX2 1404 4600KV Motor
Max Watt : 180W
Peak current : 14.3A/3″
Interphase resistance : 0.19Ω
Magnet : N52H
Bearing type : NSK/NMB
Configuration : 9N12P
Dimension : φ18.2mm13.8mm
Shaft Diameter : φ1.5mm
Shaft Protruding Length : 4mm
Mounting holes : 9mm9mm（M2）
Lead : 160mm/26AWG
ESC : 20A/2-4S（7.4V-14.8V）
Input Volts : 11.1V – 14.8V（3S – 4S LiPo)
Winding : Single strand copper winding
Weight : 10.5g (included wire)
Suitable for : 2 inch – 3 inch lightweight models
