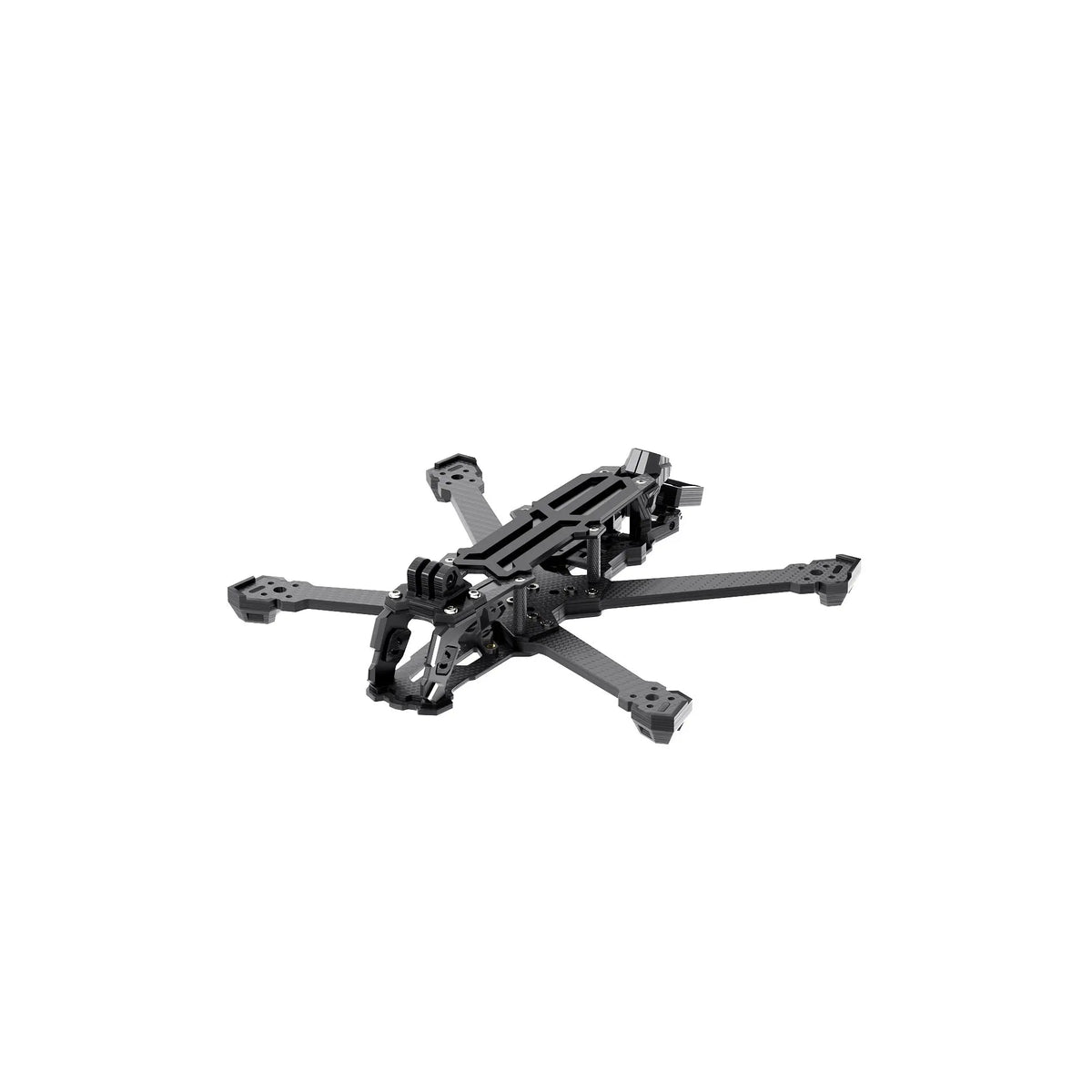

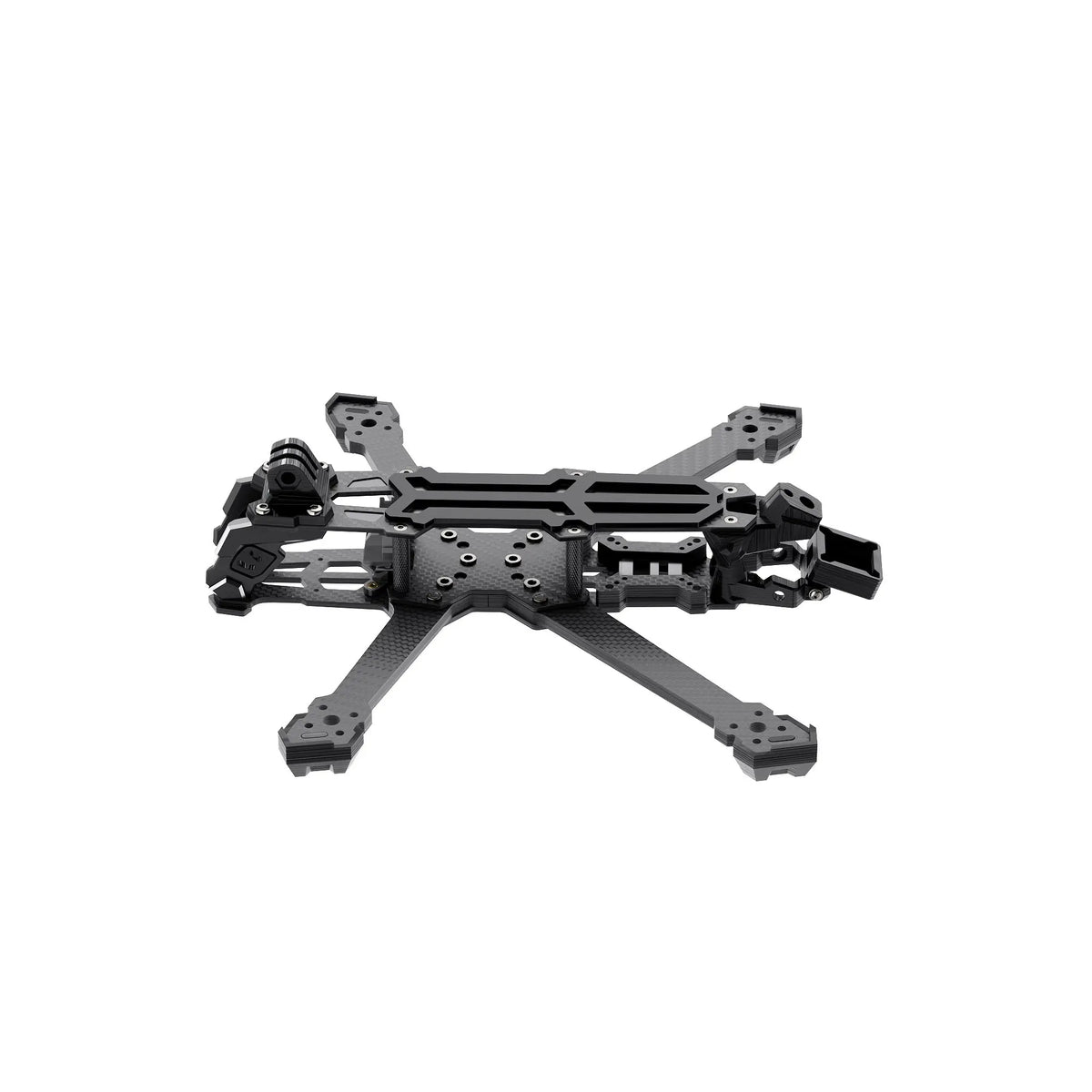

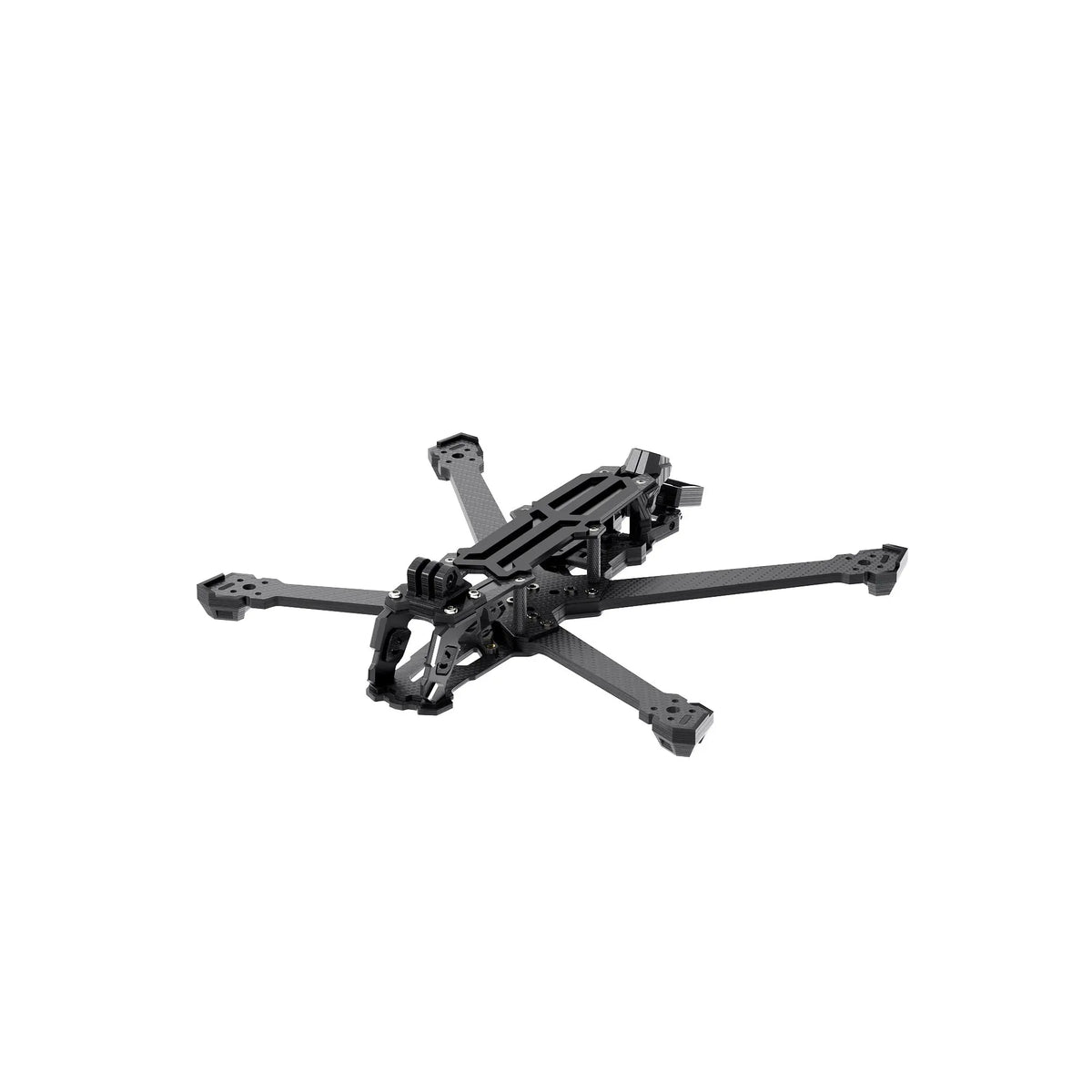

GEPRC GEP-Vapor-D5 Frame

5-Inch Deadcat Cinematic Frame; Keeps Propellers Out of the Camera View and Supports Fast Outdoor Cinematic/Chase Work

SPECIFICATIONS

• Brand Name: DJIRCTOY

• Drones Accessories Type: Body shell

• High-concerned chemical: None

• Origin: Mainland China

Summary

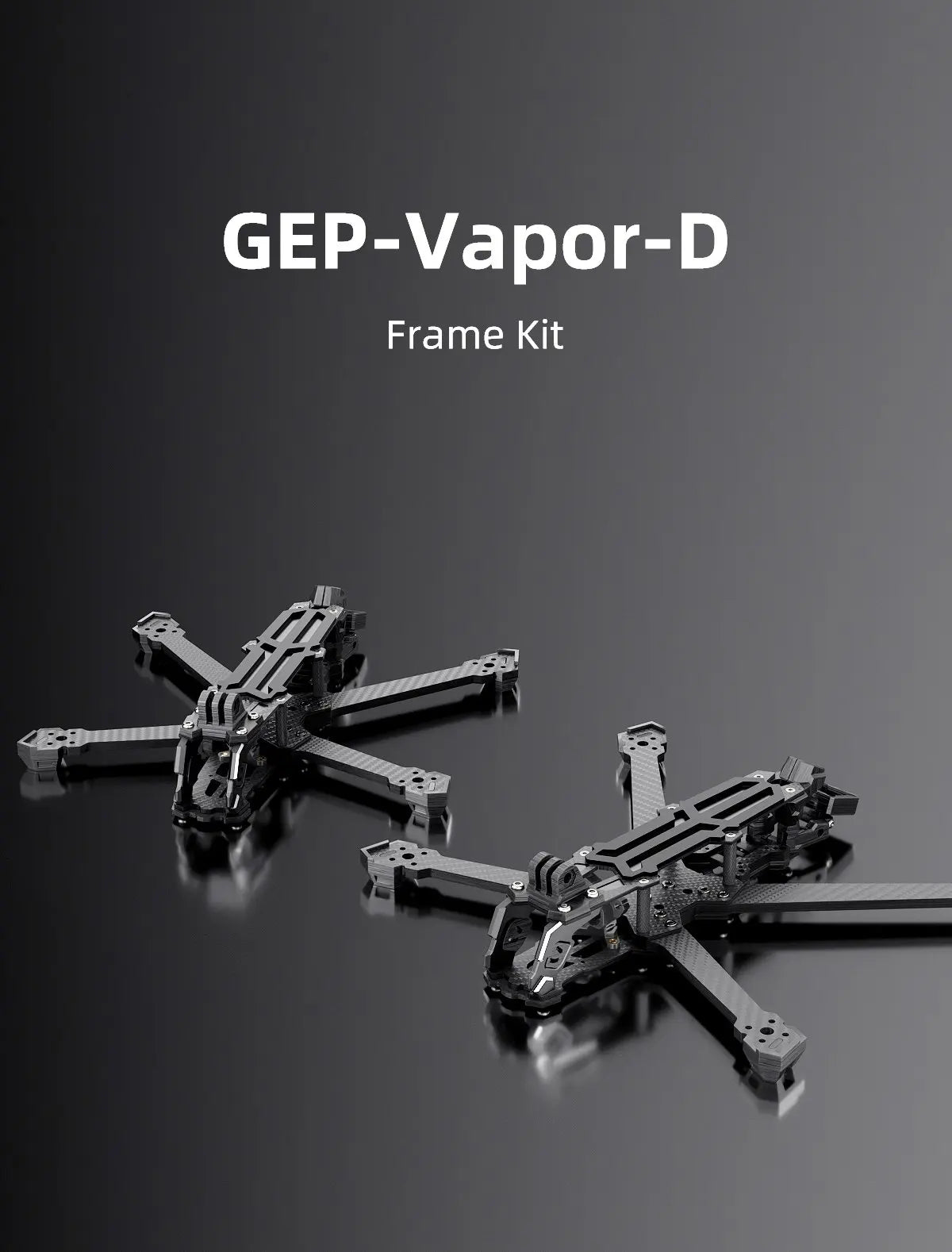

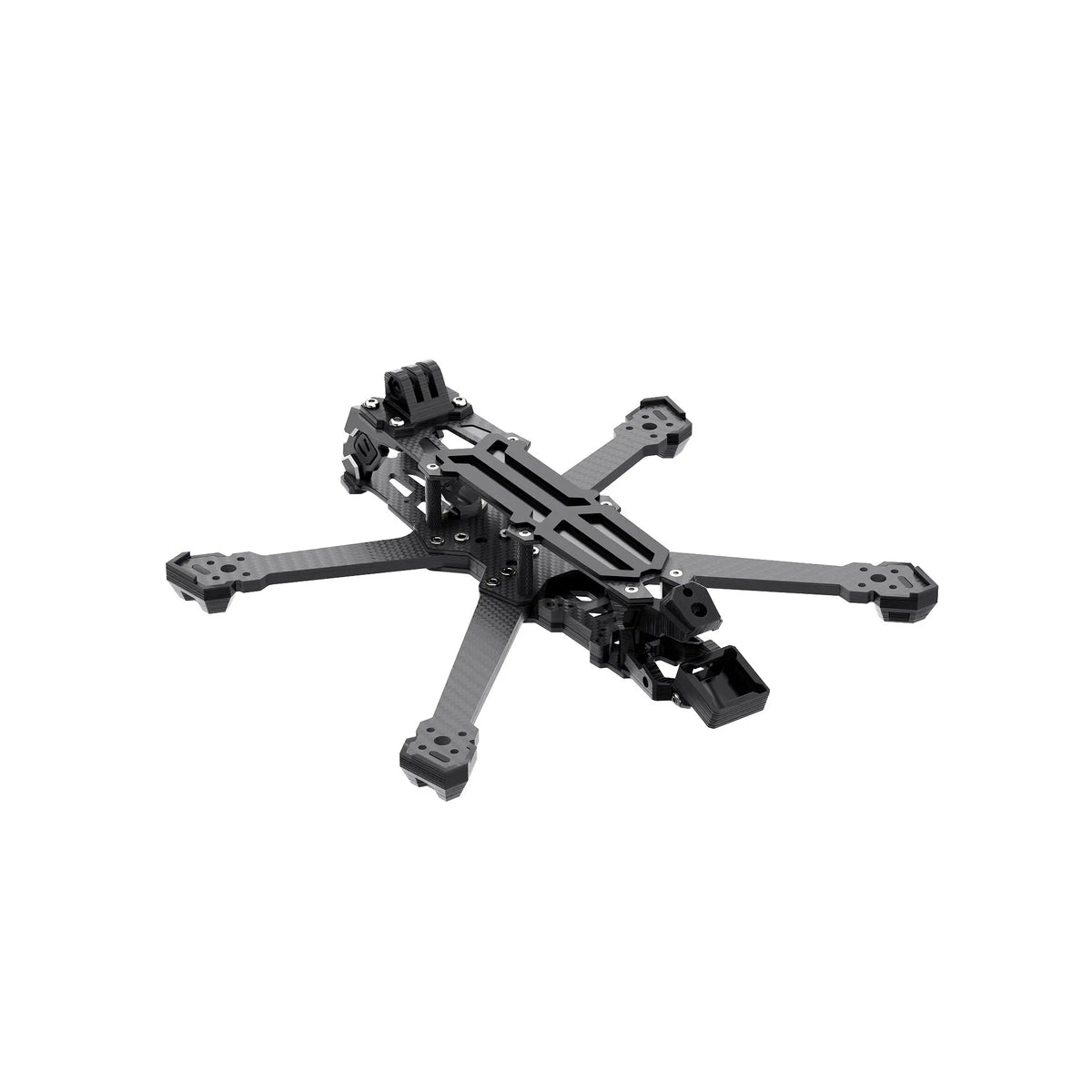

The GEP-Vapor-D frame is built for cinematic use.

Its innovative DC design keeps the propellers out of view, boosting your shot success rate and flight experience. With CNC-machined aluminum lens guard panels for style and durability, and high-strength carbon fiber for a lightweight, sturdy build, the GEP-Vapor-D delivers exceptional performance in any conditions.

Choose from two model options to match your flying style and needs.

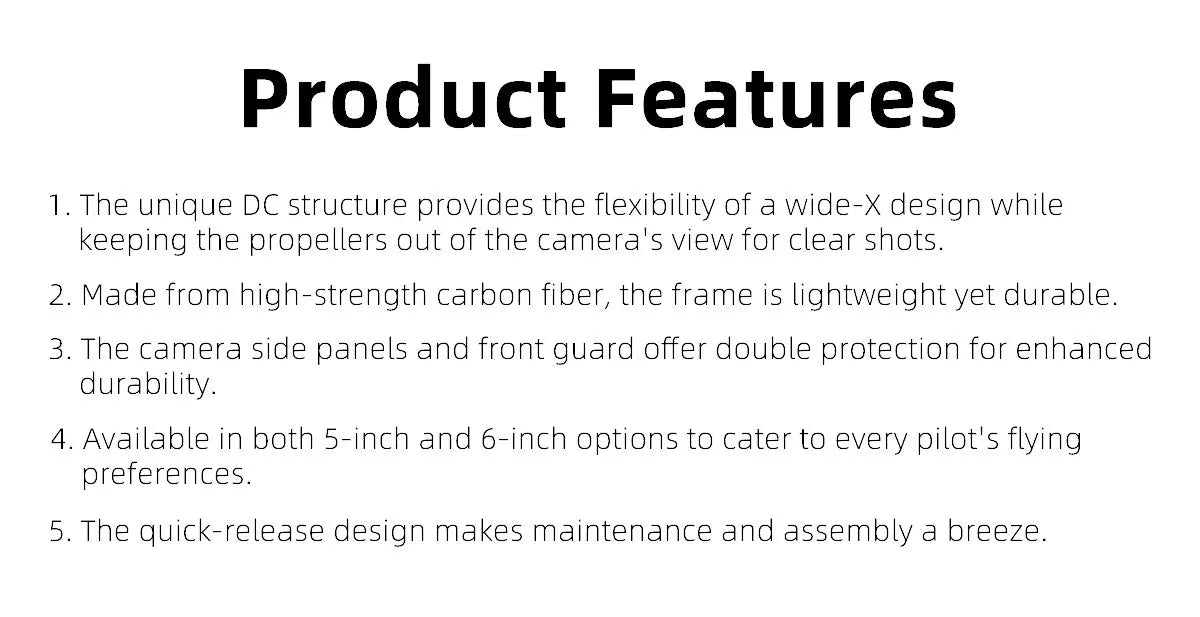

Features

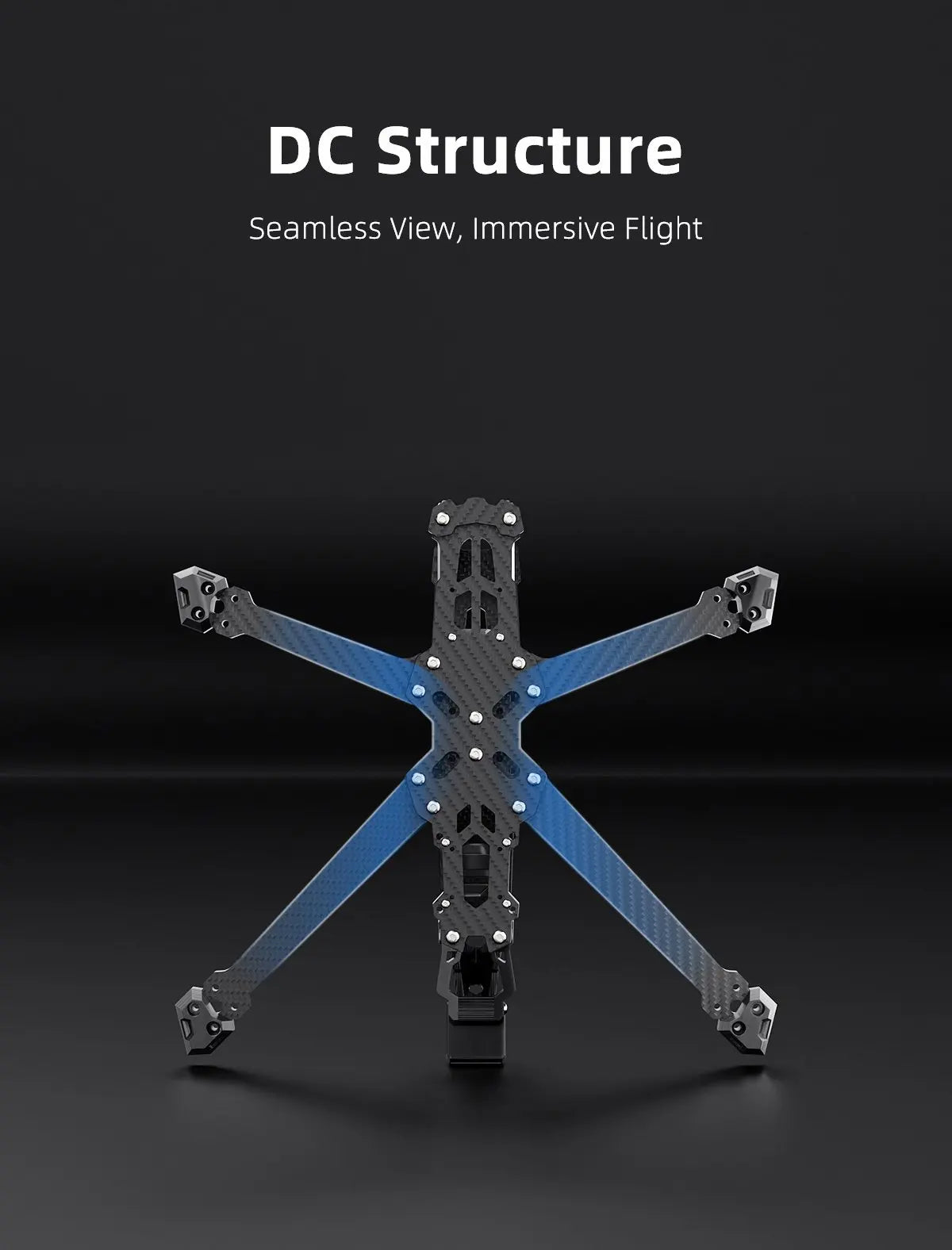

1. The unique DC structure provides the flexibility of a wide-X design while keeping the propellers out of the camera’s view for clear shots.

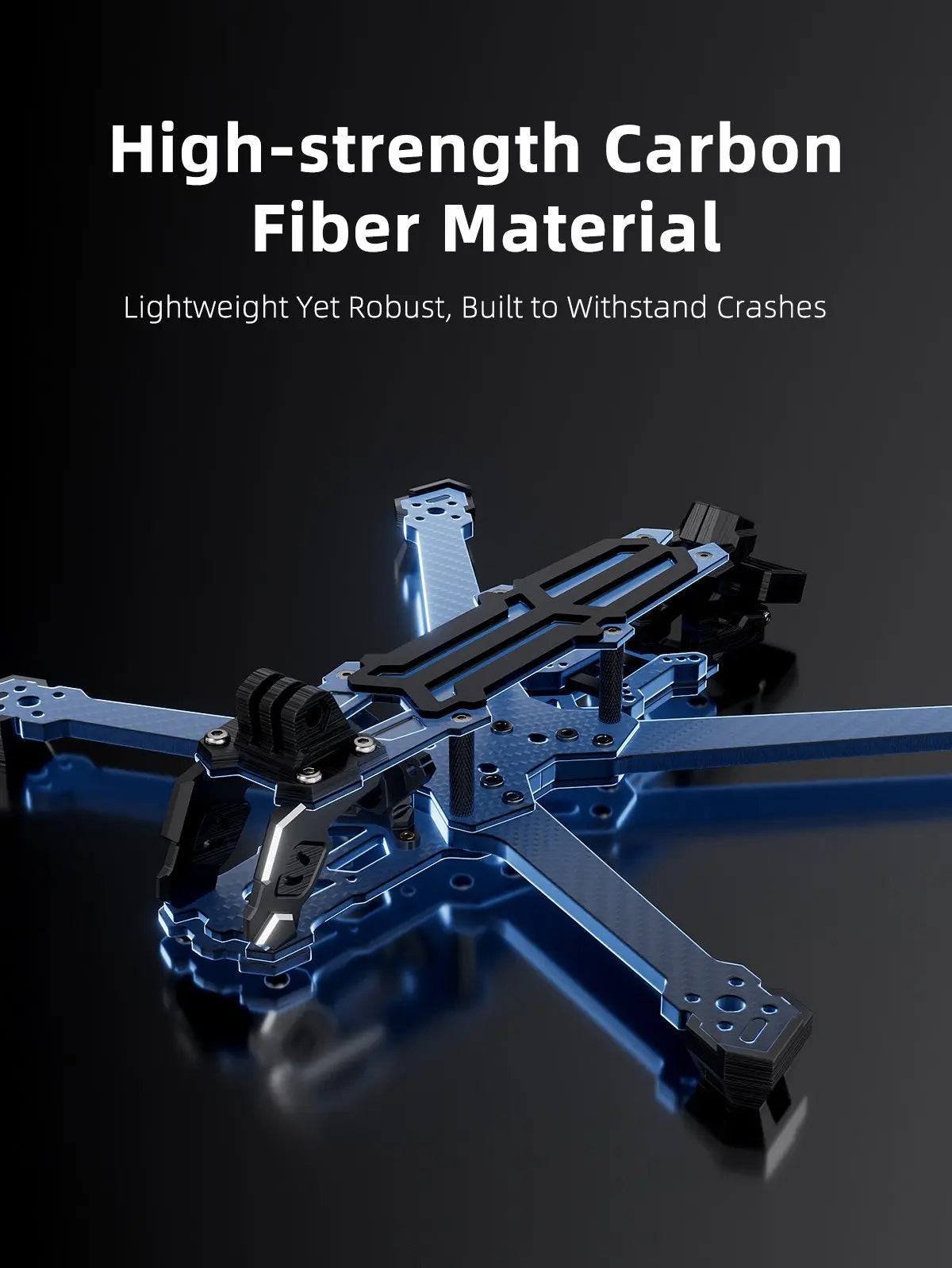

2. Made from high-strength carbon fiber, the frame is lightweight yet durable.

3. The camera side panels and front guard offer double protection for enhanced durability.

4. Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.

5. The quick-release design makes maintenance and assembly a breeze.

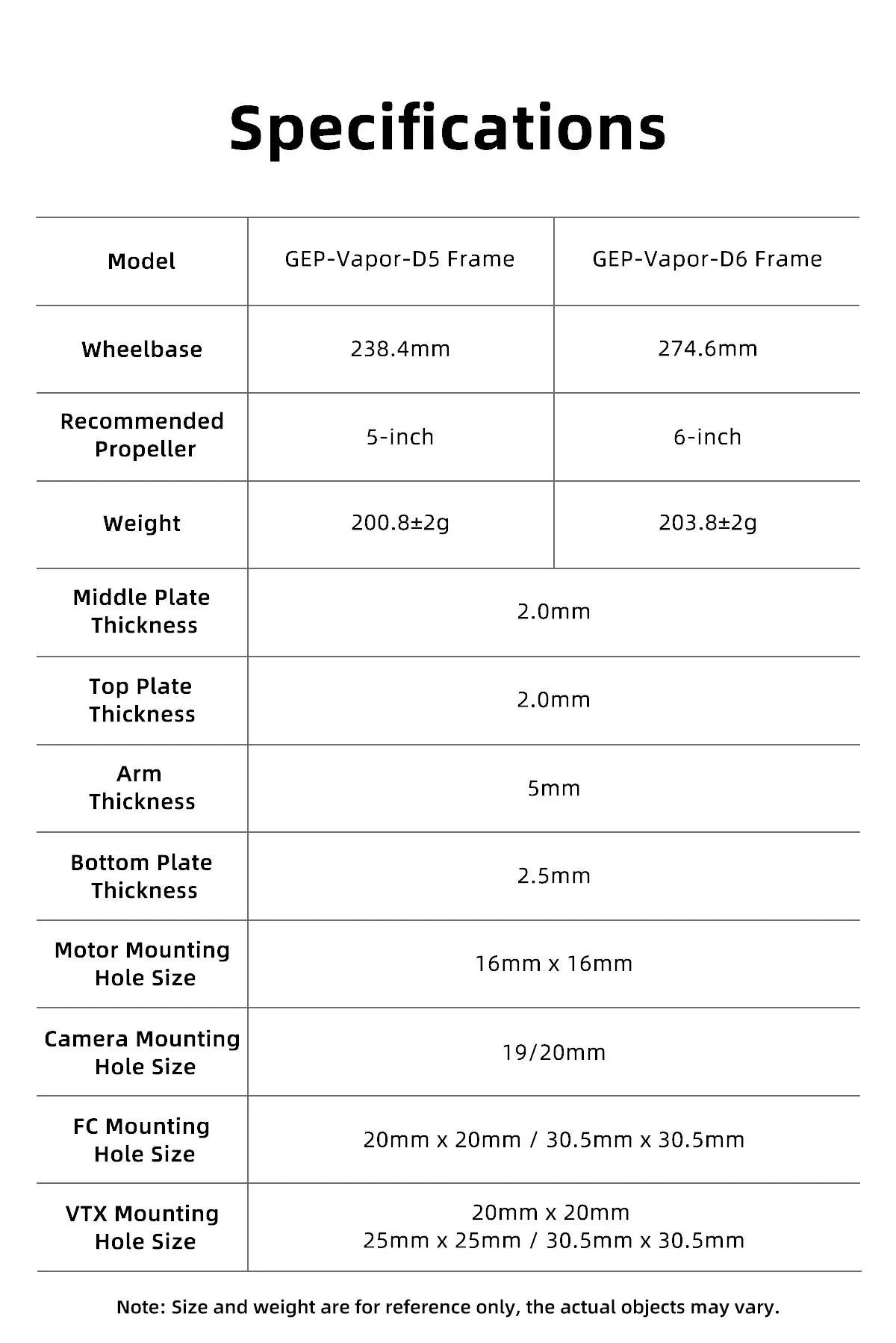

Specification

Model: GEP-Vapor-D5 Frame

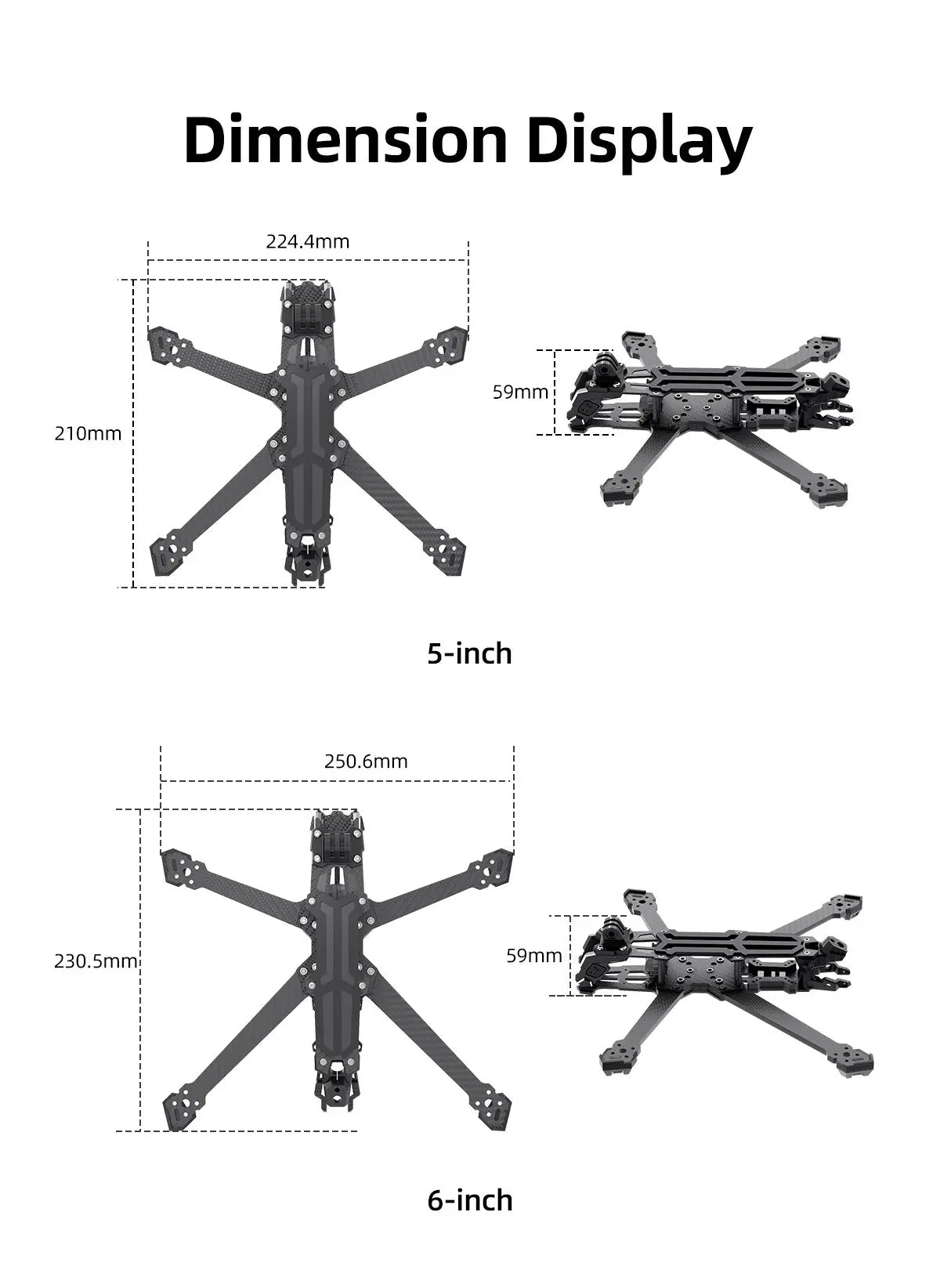

• Wheelbase: 238.4mm

• Top Plate Thickness: 2.0mm

• Middle Plate Thickness: 2.0mm

• Arm Thickness: 5.0mm

• Bottom Plate Thickness: 2.5mm

• FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

• VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm

• Motor Mounting Hole Size: 16x16mm

• Camera Mounting Hole Size: 19mm / 20mm

• Recommended Propeller: 5-inch

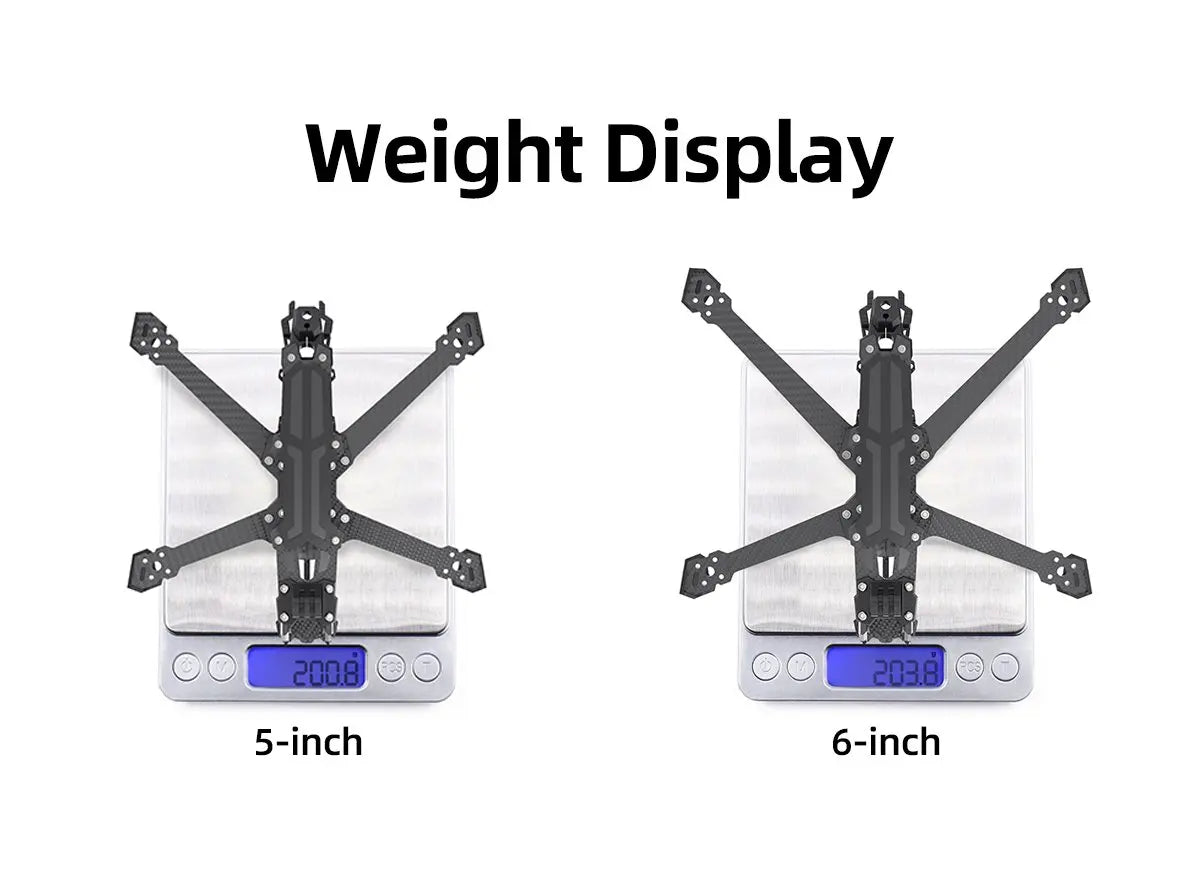

• Weight: 200.8g ±2g

Model: GEP-Vapor-D6 Frame

• Wheelbase: 274.6mm

• Top Plate Thickness: 2.0mm

• Middle Plate Thickness: 2.0mm

• Arm Thickness: 5.0mm

• Bottom Plate Thickness: 2.5mm

• FC Mounting Hole Size: 20x20mm / 30.5×30.5mm

• VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm

• Motor Mounting Hole Size: 16x16mm

• Camera Mounting Hole Size: 19mm / 20mm

• Recommended Propeller: 6-inch

• Weight: 203.8g ±2g

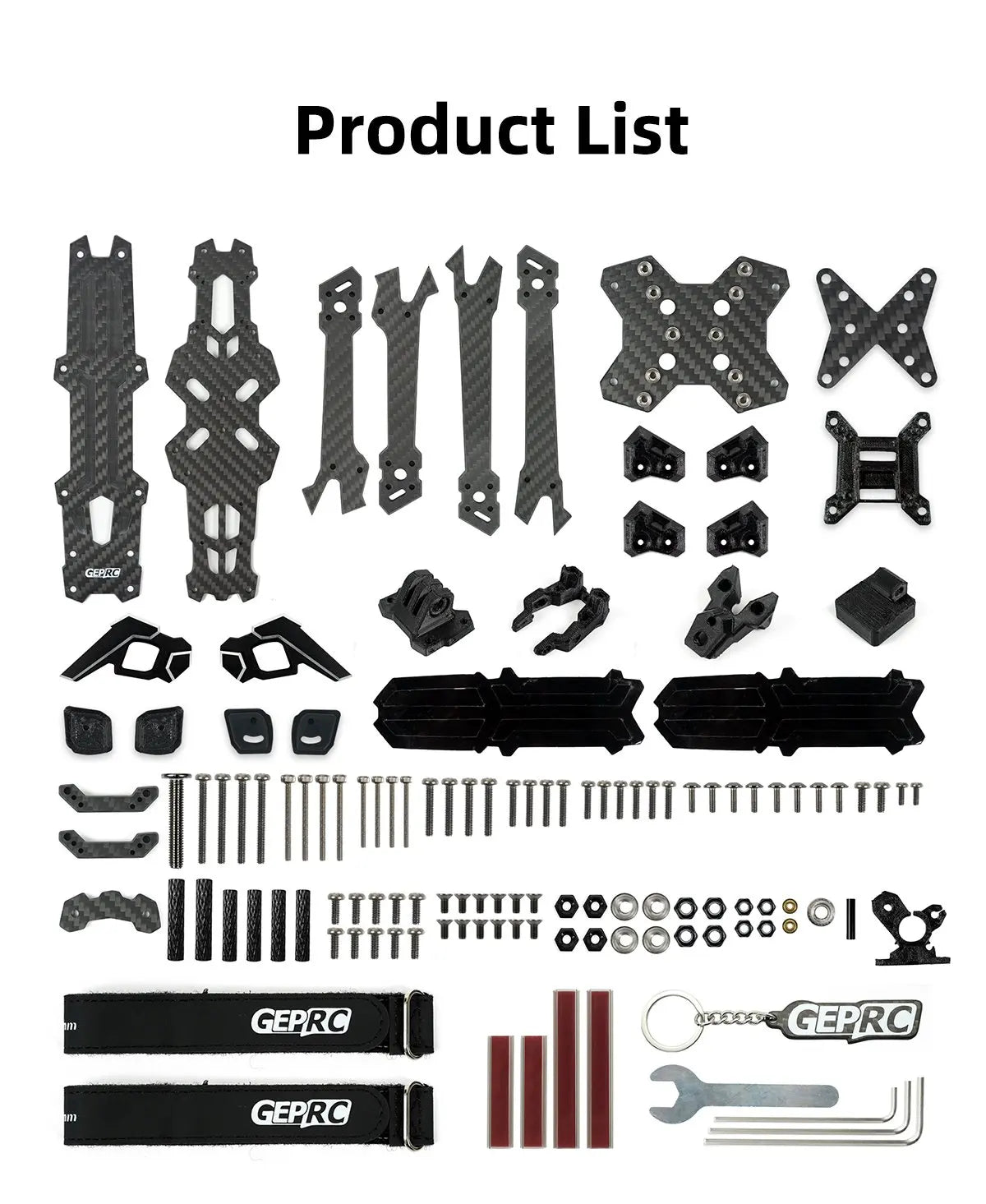

Includes

GEP-Vapor-D5 Frame

• 1 x GEP-Vapor-D5 Frame

• 2 x M20*250mm battery straps

• 2 x Battery Silicone Pads

• 1 x Set of screws

• 1 x Printouts pack

• 1 x L-shaped screwdriver (1.5mm)

• 1 x L-shaped screwdriver (2mm)

• 1 x L-shaped screwdriver (3mm)

• 1 x M8 wrench

GEP-Vapor-D6 Frame

• 1 x GEP-Vapor-D6 Frame

• 2 x M20*250mm battery straps

• 2 x Battery Silicone Pads

• 1 x Set of screws

• 1 x Printouts pack

• 1 x L-shaped screwdriver (1.5mm)

• 1 x L-shaped screwdriver (2mm)

• 1 x L-shaped screwdriver (3mm)

• 1 x M8 wrench
