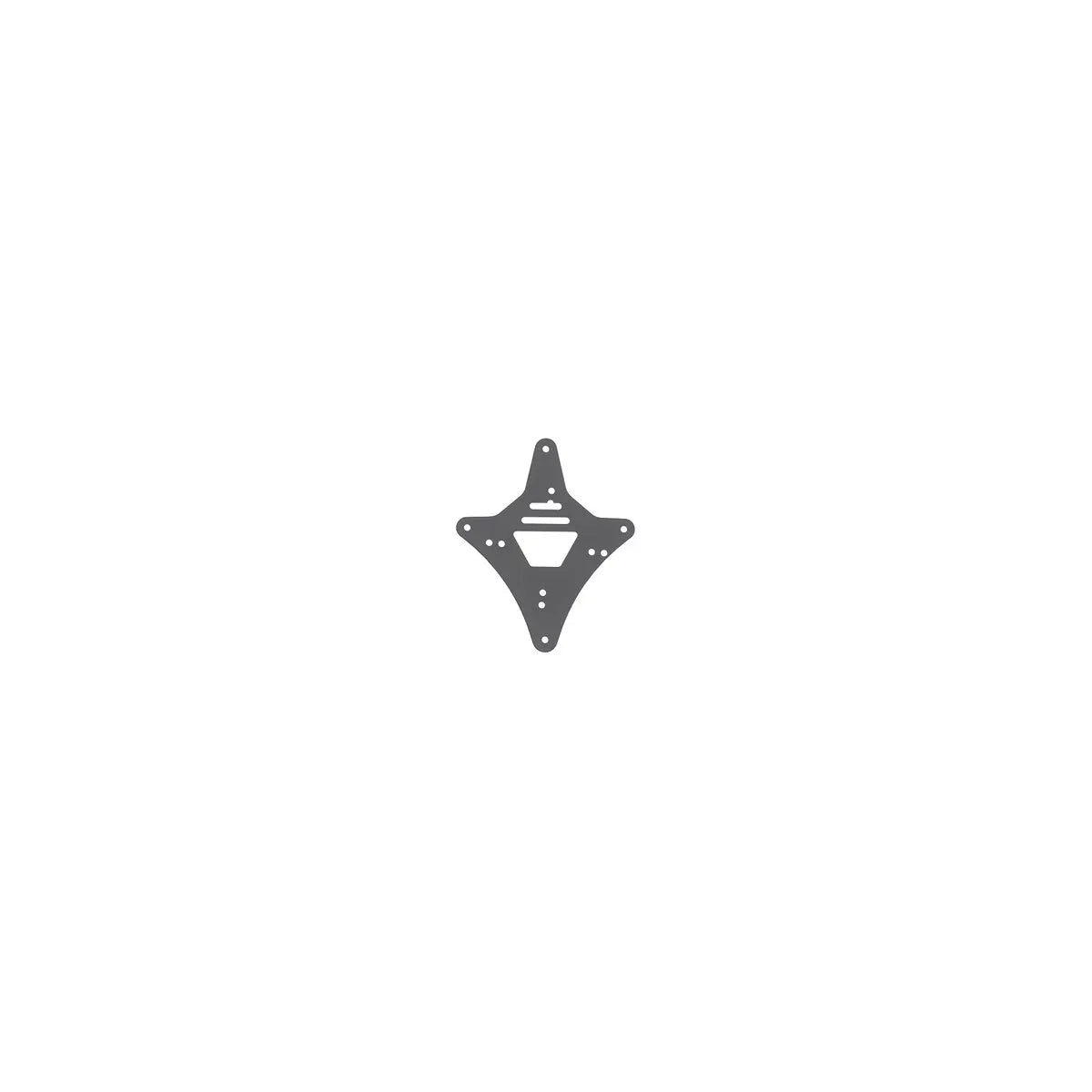

GEP-CL35 V3 Bottom Carbon Plate - GEP-CL35 V3 Frame

GEP-CL35 V3 Bottom Carbon Plate - GEP-CL35 V3 Frame: frame & structure classified for repair & maintain in Cinematic FPV.

SPECIFICATIONS

Brand Name : Auloda
Certification : CE
For Vehicle Type : Airplanes
Four-wheel Drive Attributes : Assemblage
High-concerned chemical : None
Is Batteries Included : No
Is Electric : No battery
Is it battery/power supply : N
Is it charger/adapter : N
Material : Carbon Fiber
Model Number : GEP-CL35 V3 Frame Parts
Origin : Mainland China
Quantity : 1 pcs
RC Parts & Accs : Principal Axis
Recommend Age : 14+y
Remote Control Peripherals/Devices : Motor
Tool Supplies : Assembled class
Upgrade Parts/Accessories : Frame
Use : Vehicles & Remote Control Toys
Wheelbase : Upper Shell

Summary

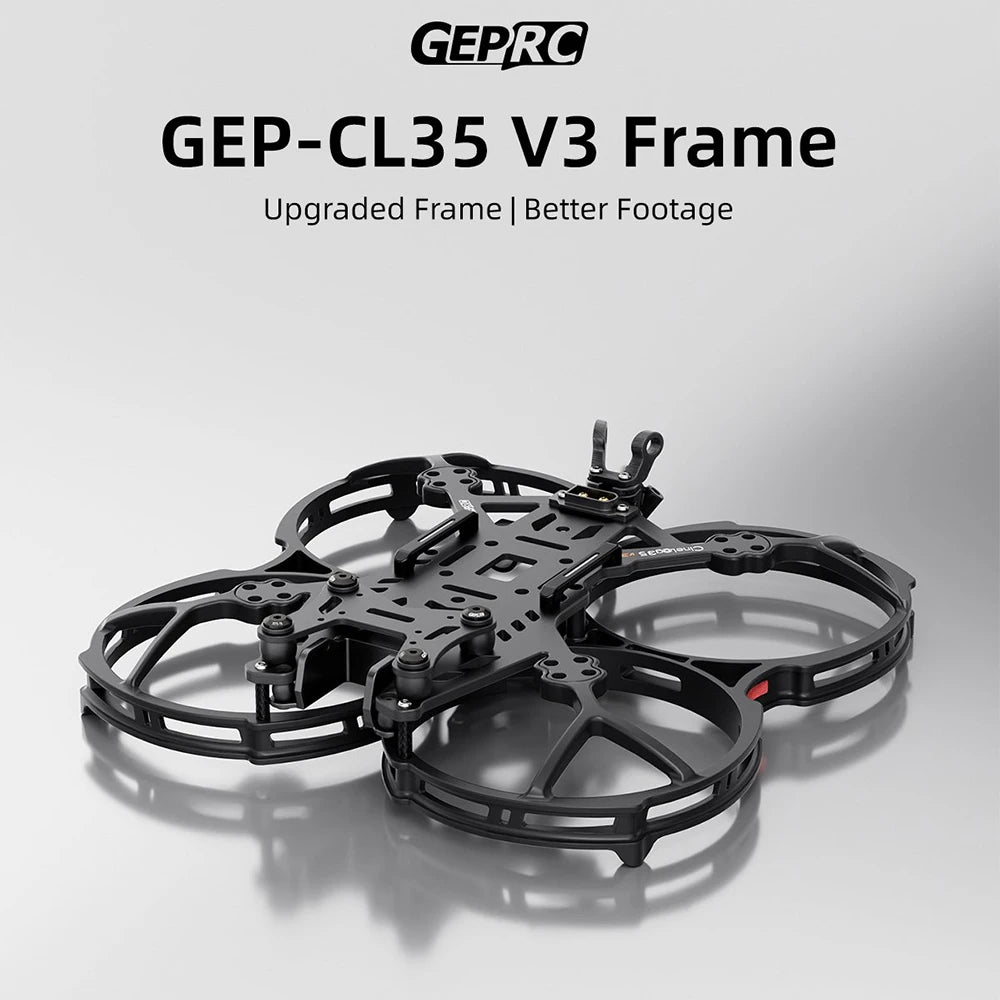

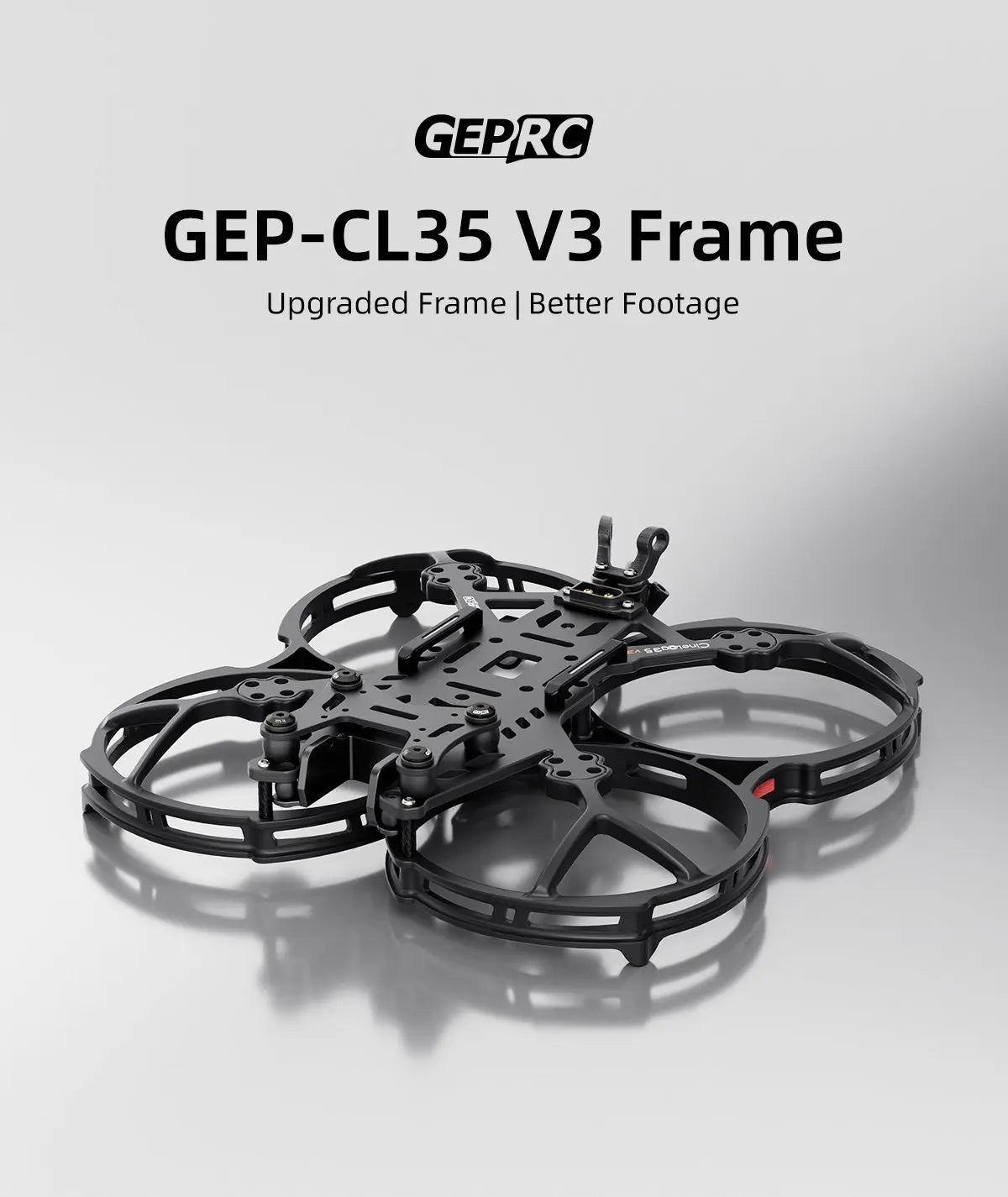

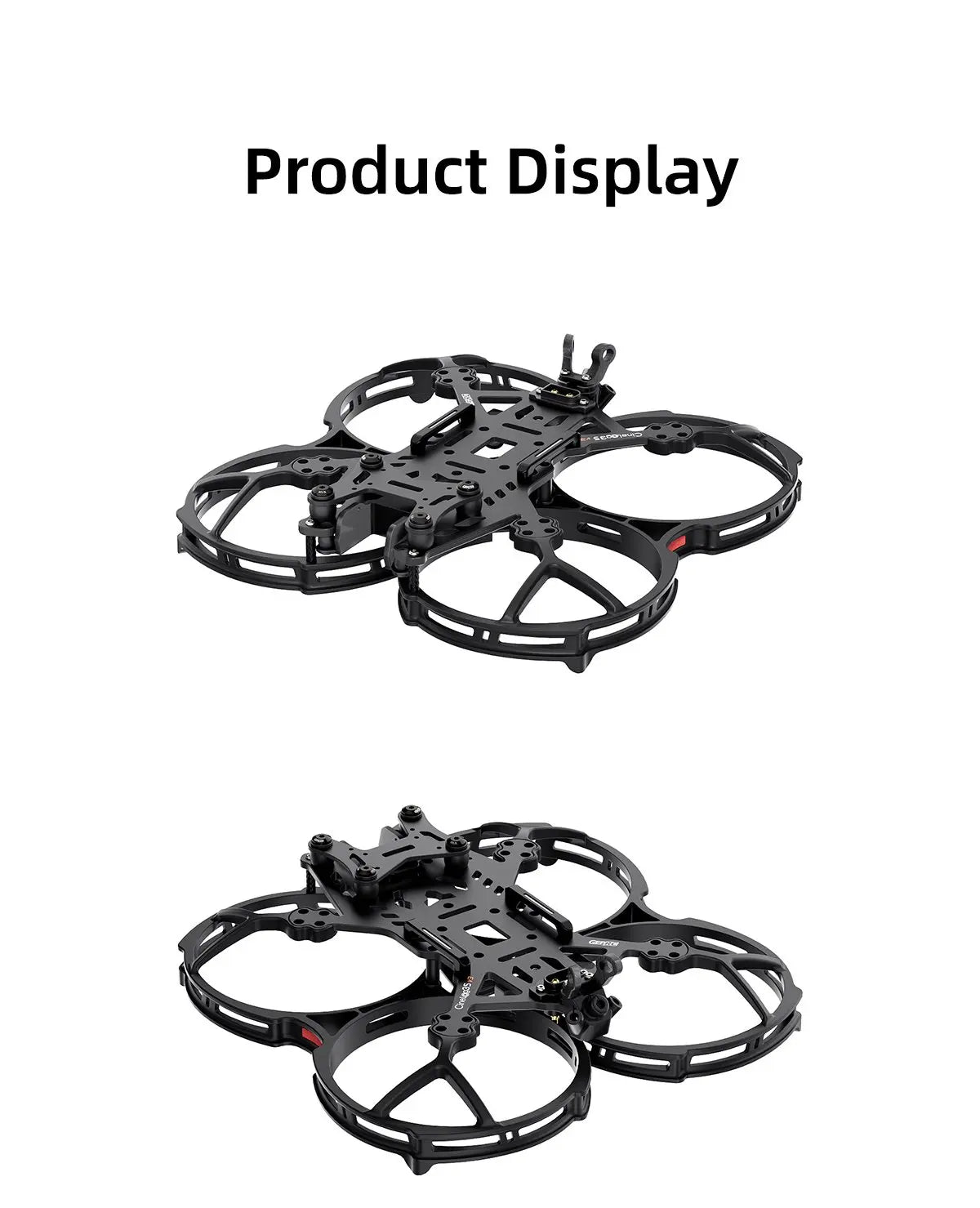

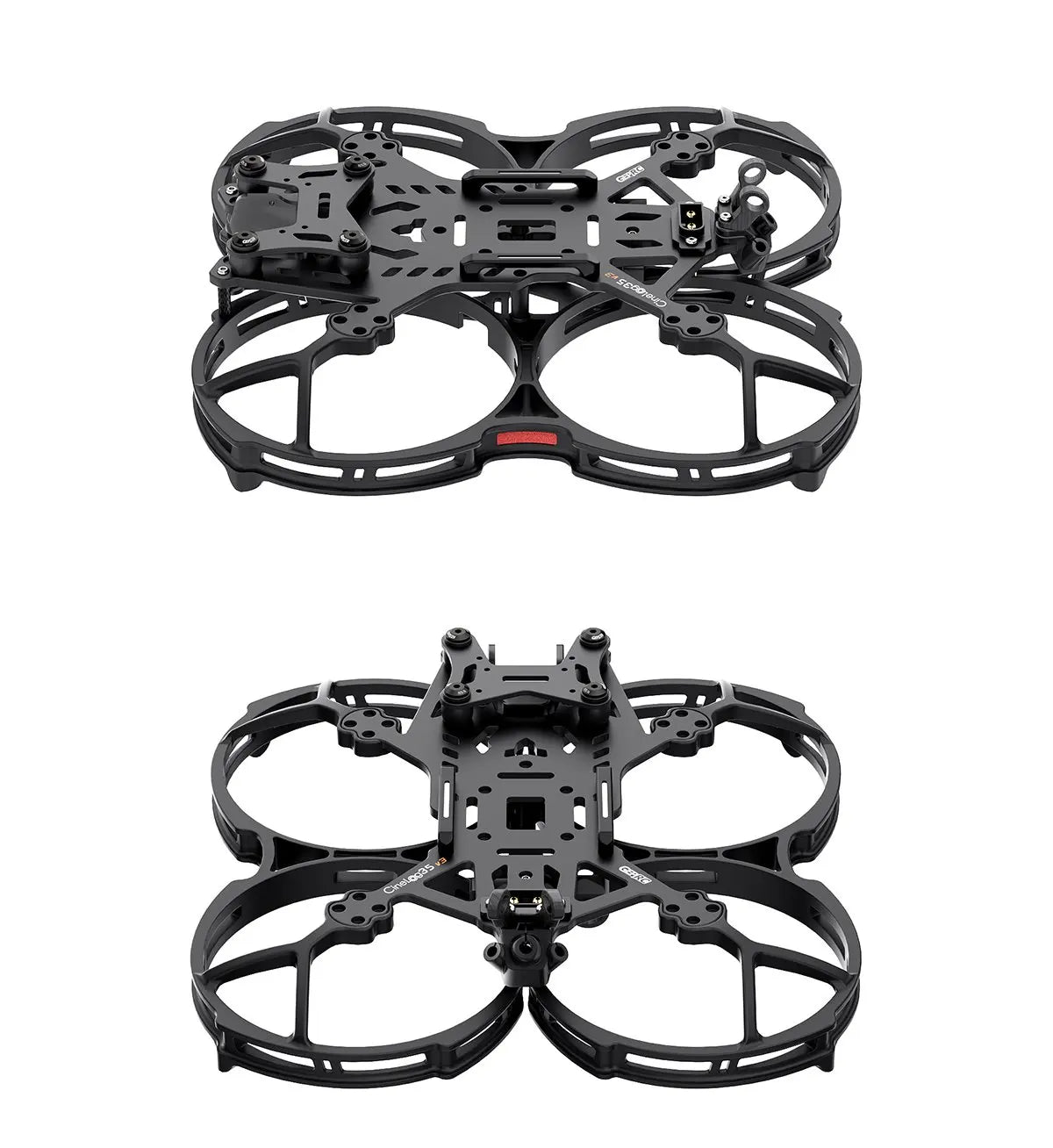

The Cinelog35 Series has been upgraded with the V3 frame kit to fully support the O4 Air Unit Pro HD digital transmission system.

The GEP-CL35 V3 frame has been specifically re-molded to fit the O4 Pro module, allowing users to easily access the Type-C port for data transfer and conveniently insert or remove the memory card.

With newly tuned damping balls, featuring improved damping ratios, the camera’s jello effect is effectively minimized for clearer and more stable footage.

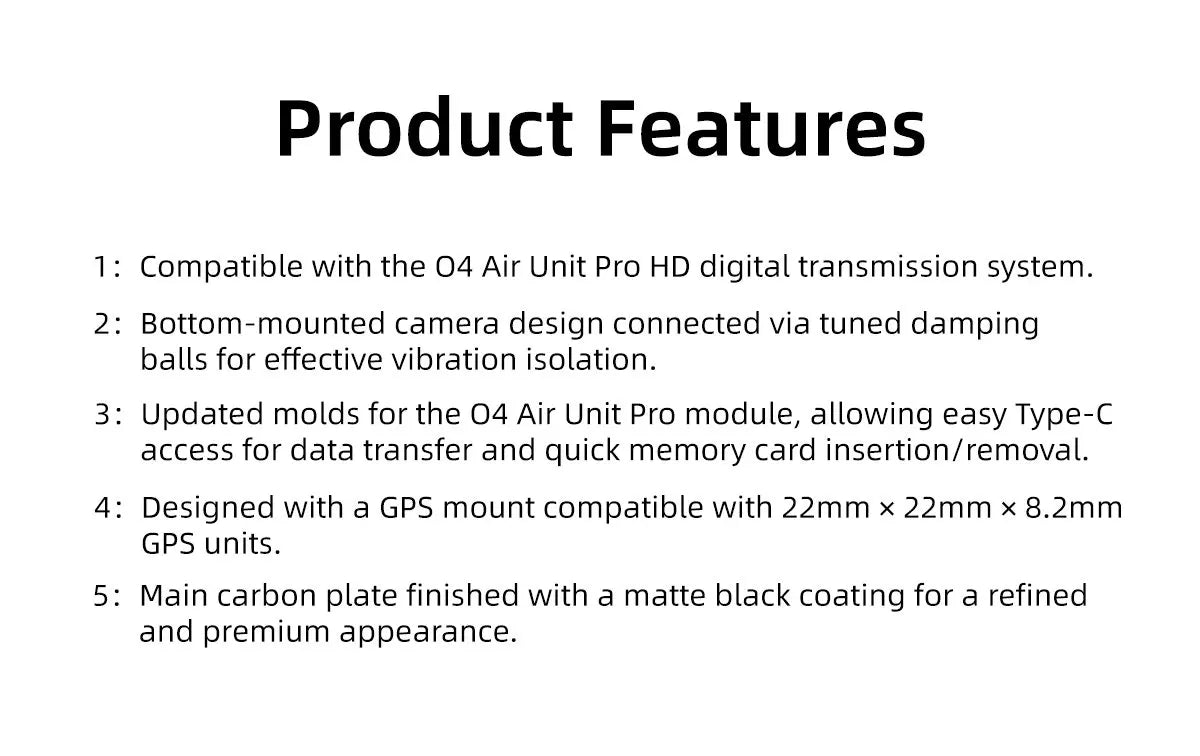

Features

Compatible with the O4 Air Unit Pro HD digital transmission system.

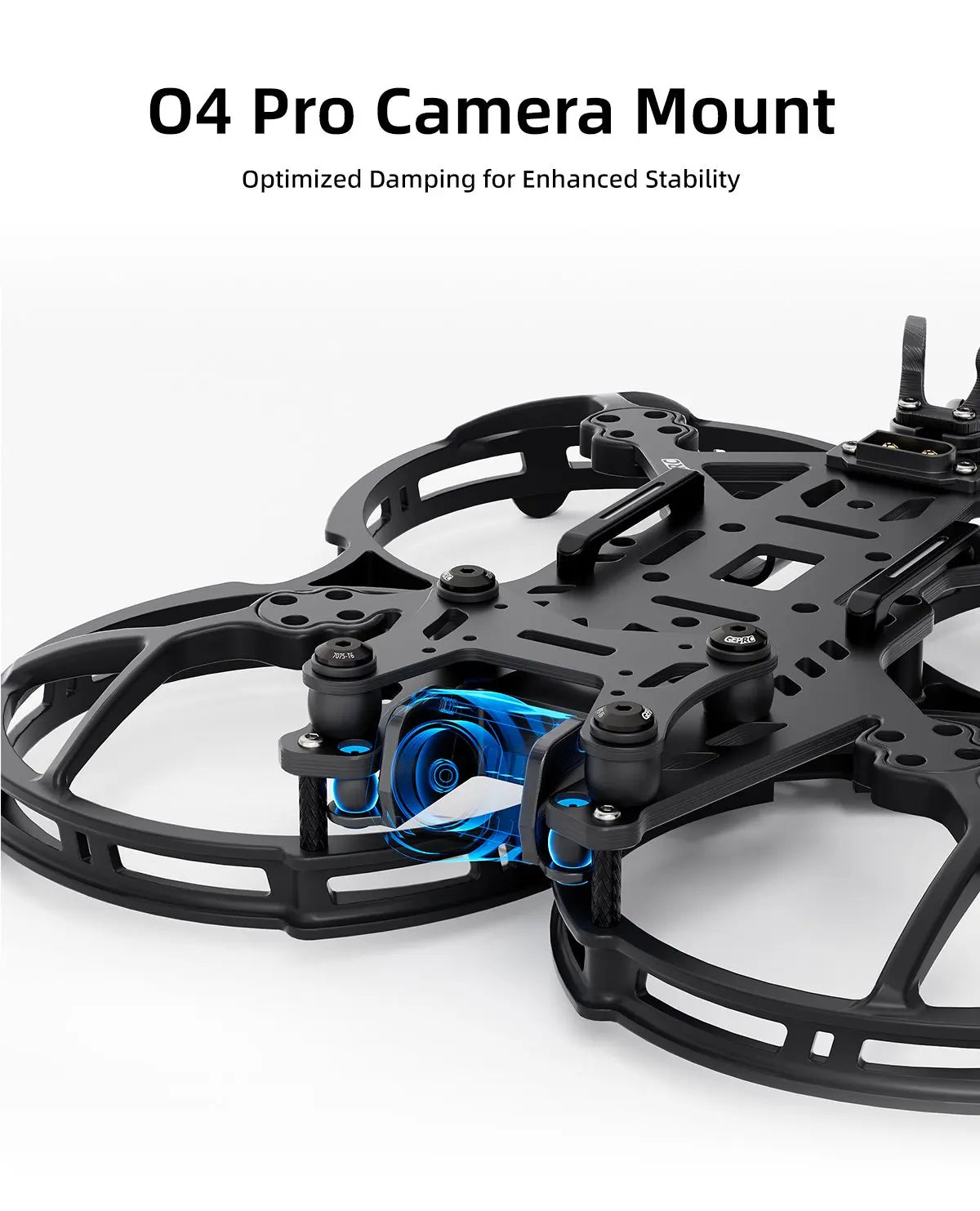

Bottom-mounted camera design connected via tuned damping balls for effective vibration isolation.

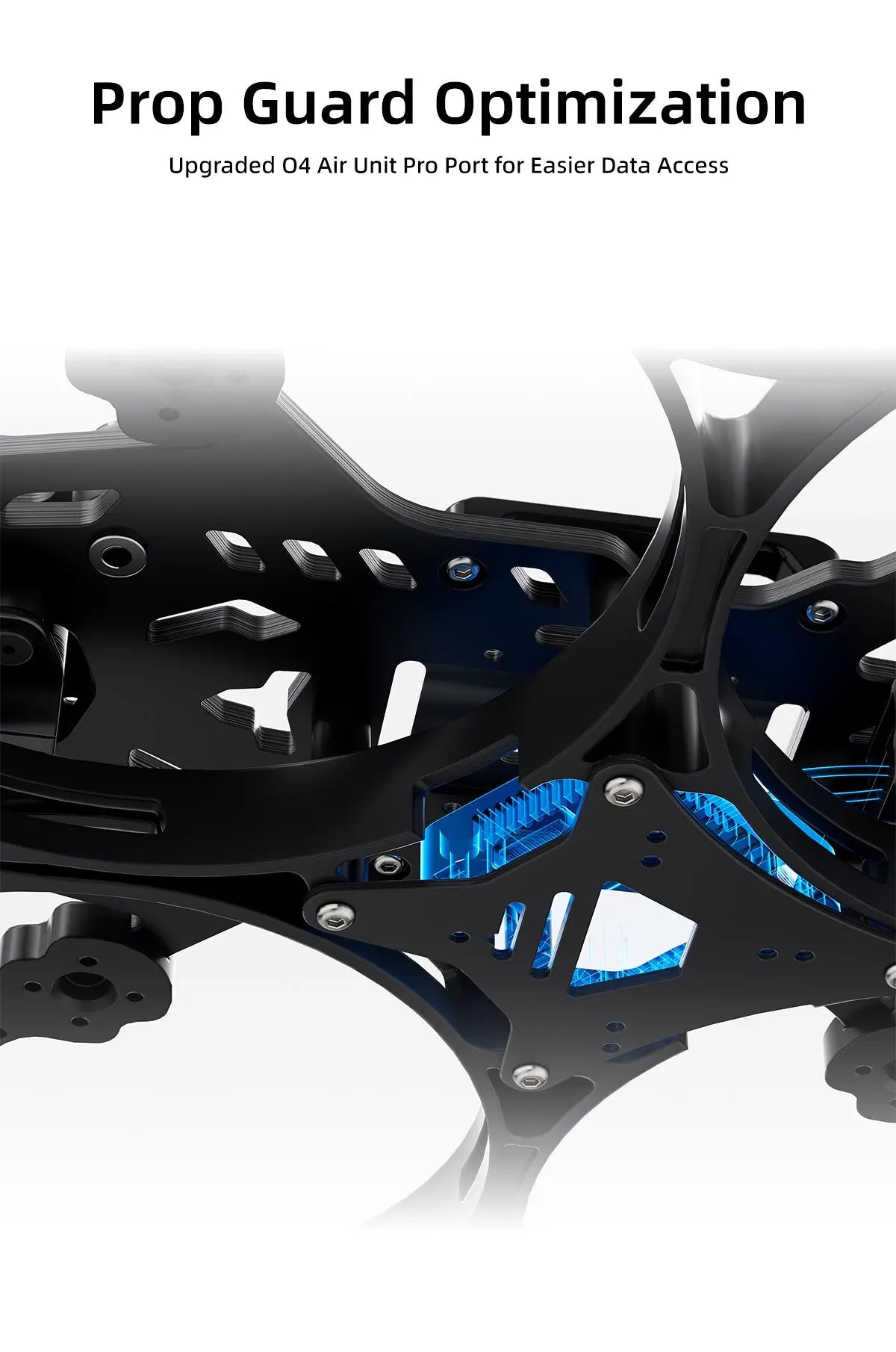

Updated molds for the O4 Air Unit Pro module, allowing easy Type-C access for data transfer and quick memory card insertion/removal.

Designed with a GPS mount compatible with 22mm × 22mm × 8.2mm GPS units.

Main carbon plate finished with a matte black coating for a refined and premium appearance.

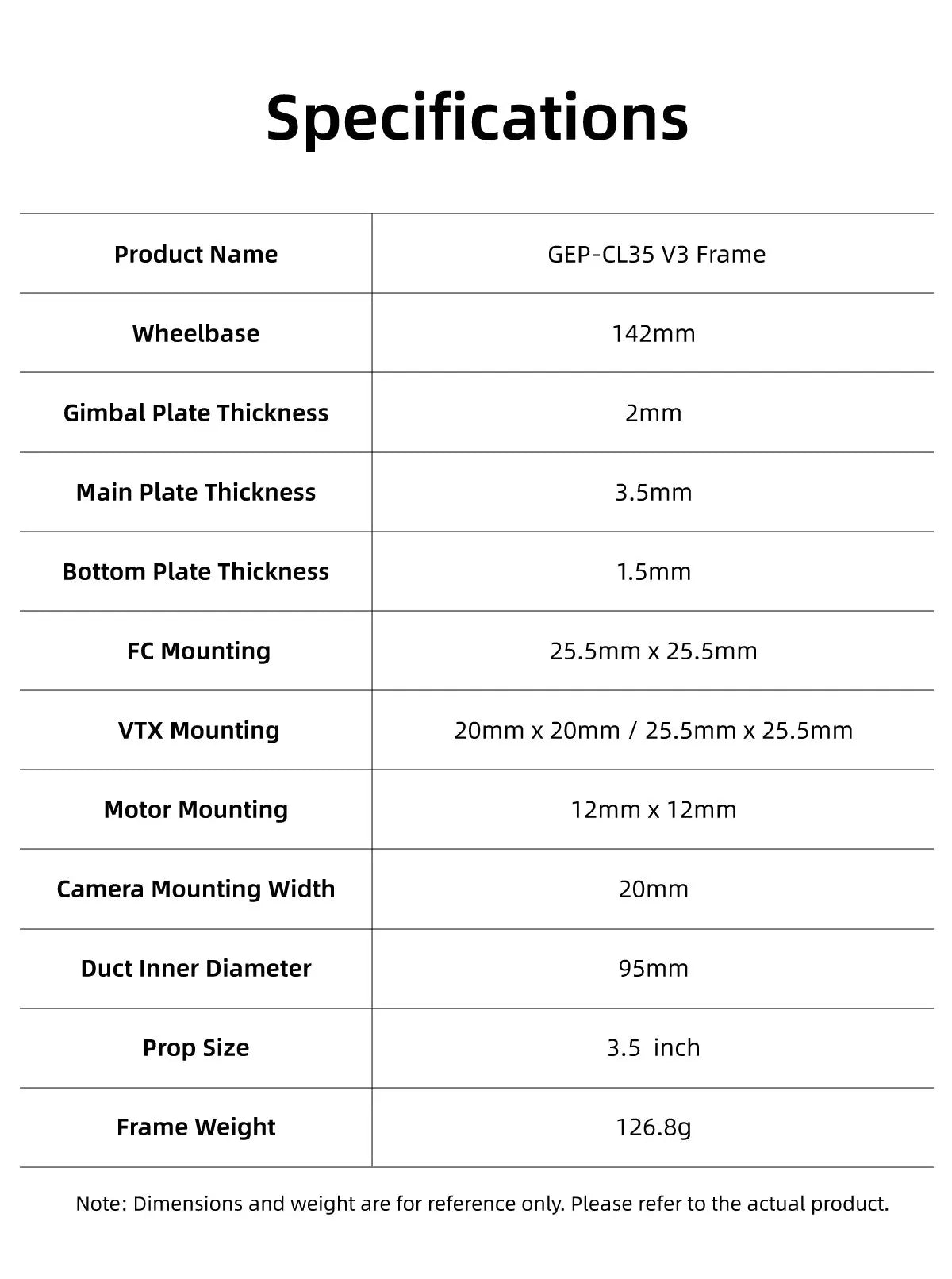

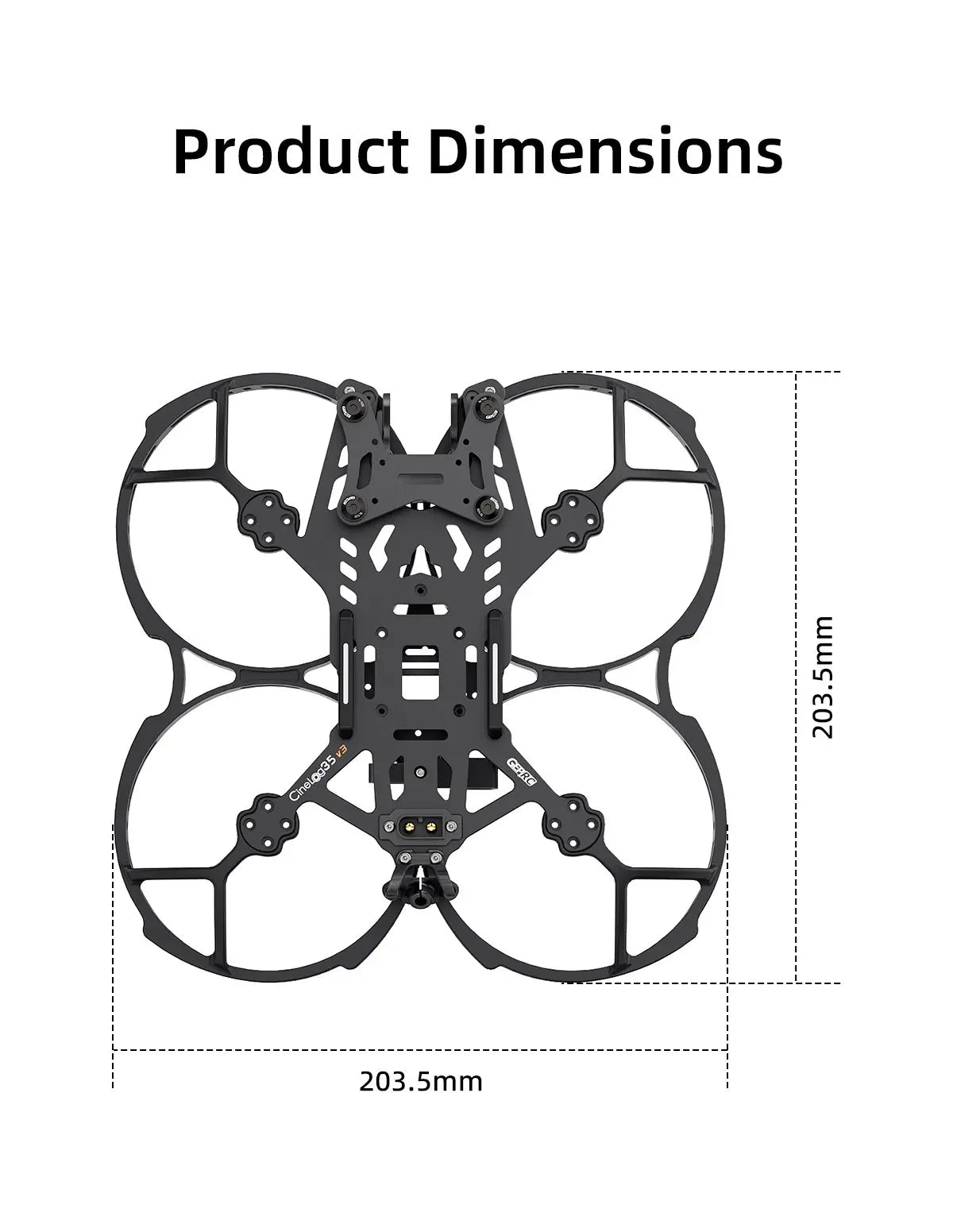

Specification

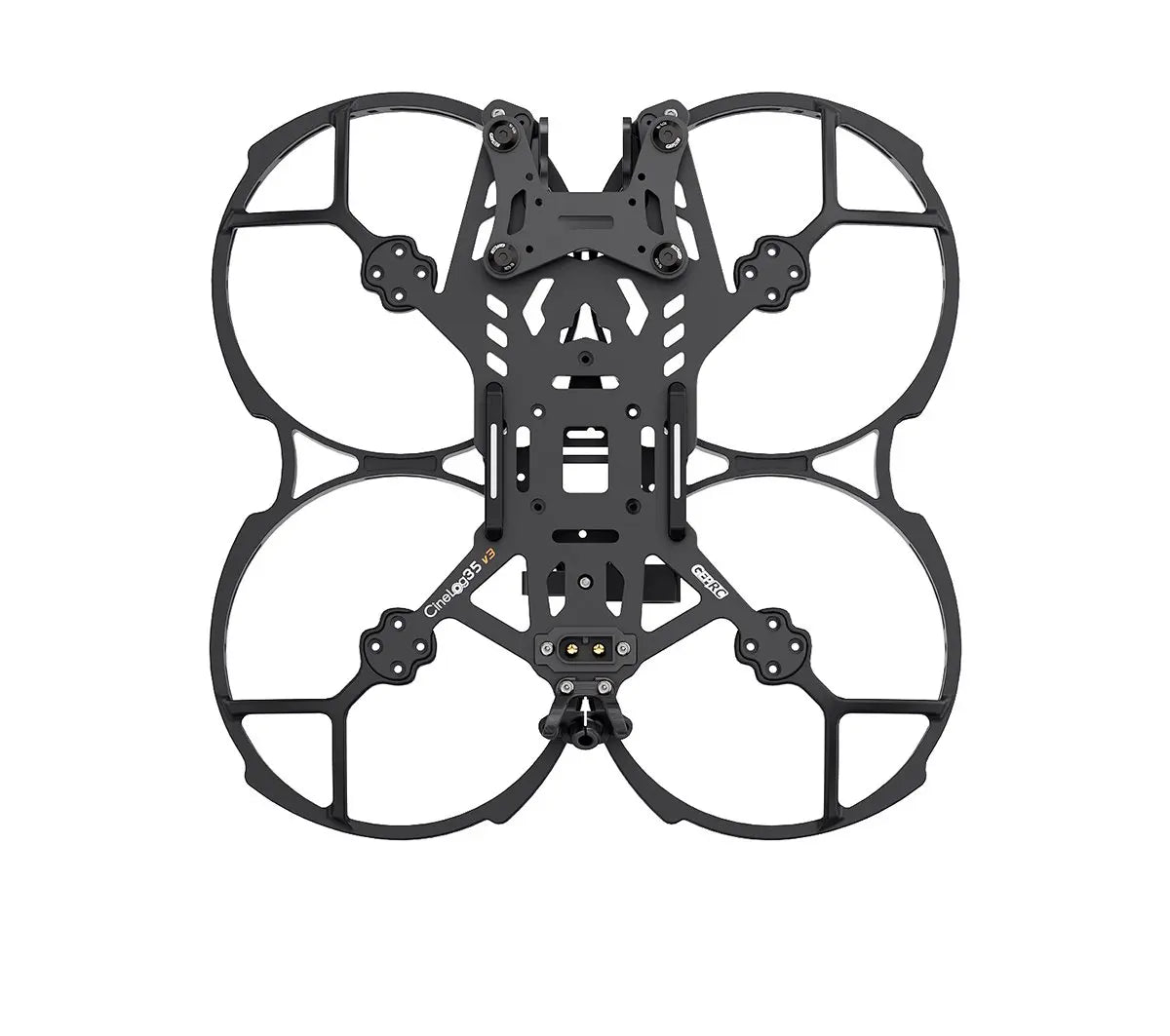

Product Name : GEP-CL35 V3 Frame
Wheelbase : 142mm
Gimbal Plate Thickness : 2mm
Main Plate Thickness : 3.5mm
Bottom Plate Thickness : 1.5mm
FC Mounting : 25.5mm × 25.5mm
VTX Mounting : 20mm × 20mm / 25.5mm × 25.5mm
Motor Mounting : 12mm × 12mm
Camera Mounting Width : 20mm
Duct Inner Diameter : 95mm
Prop Size : 3.5 inch
Frame Weight : 126.8g

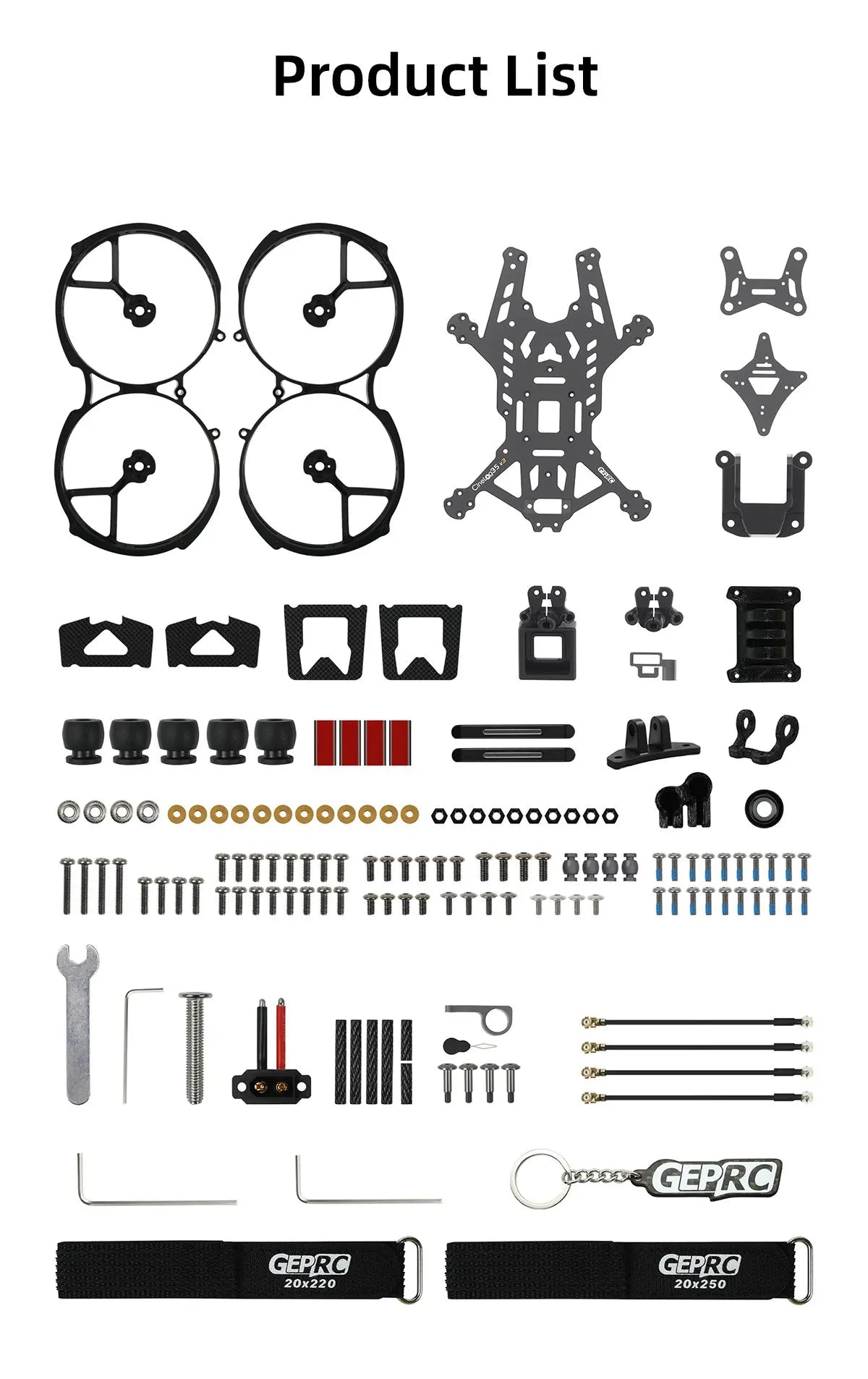

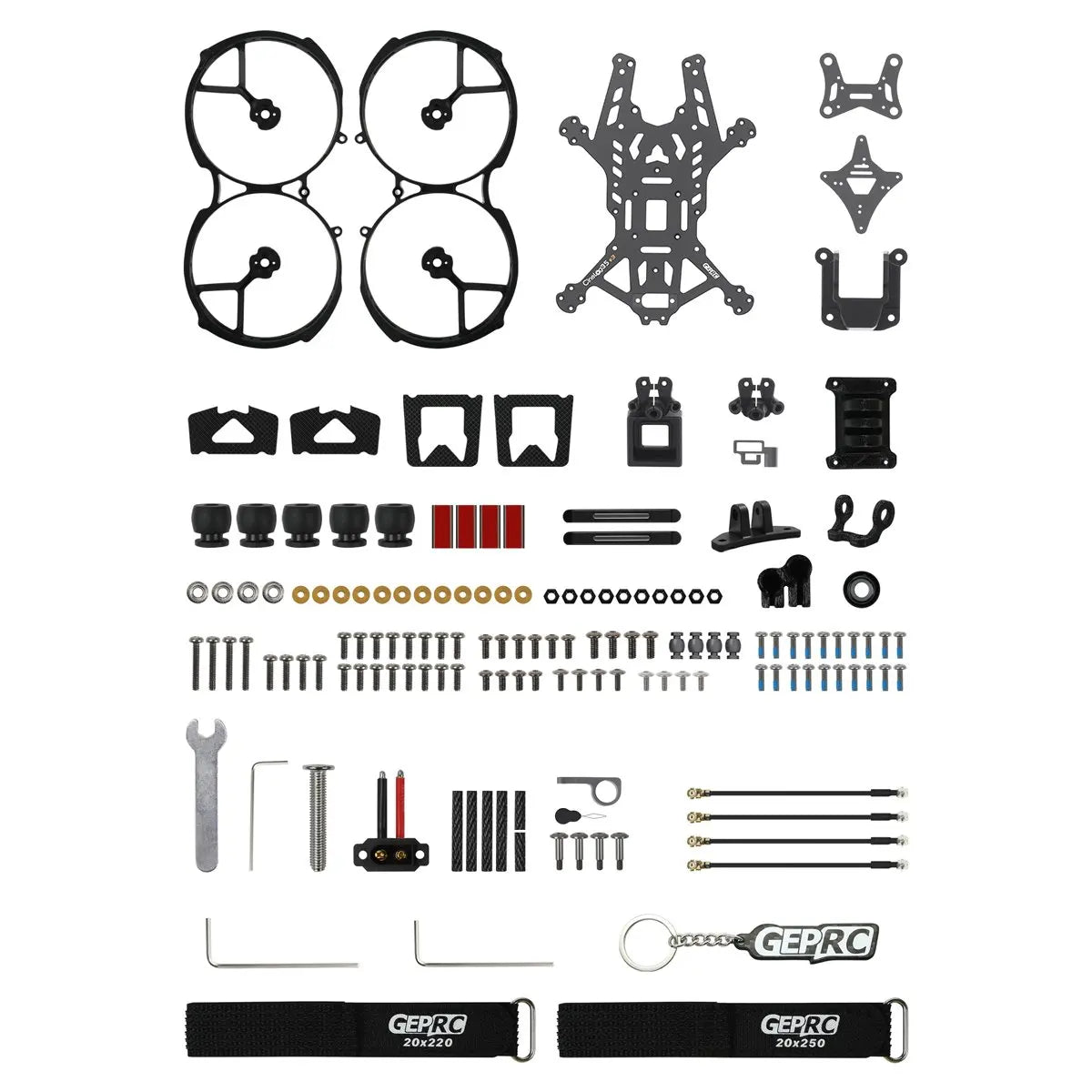

Includes

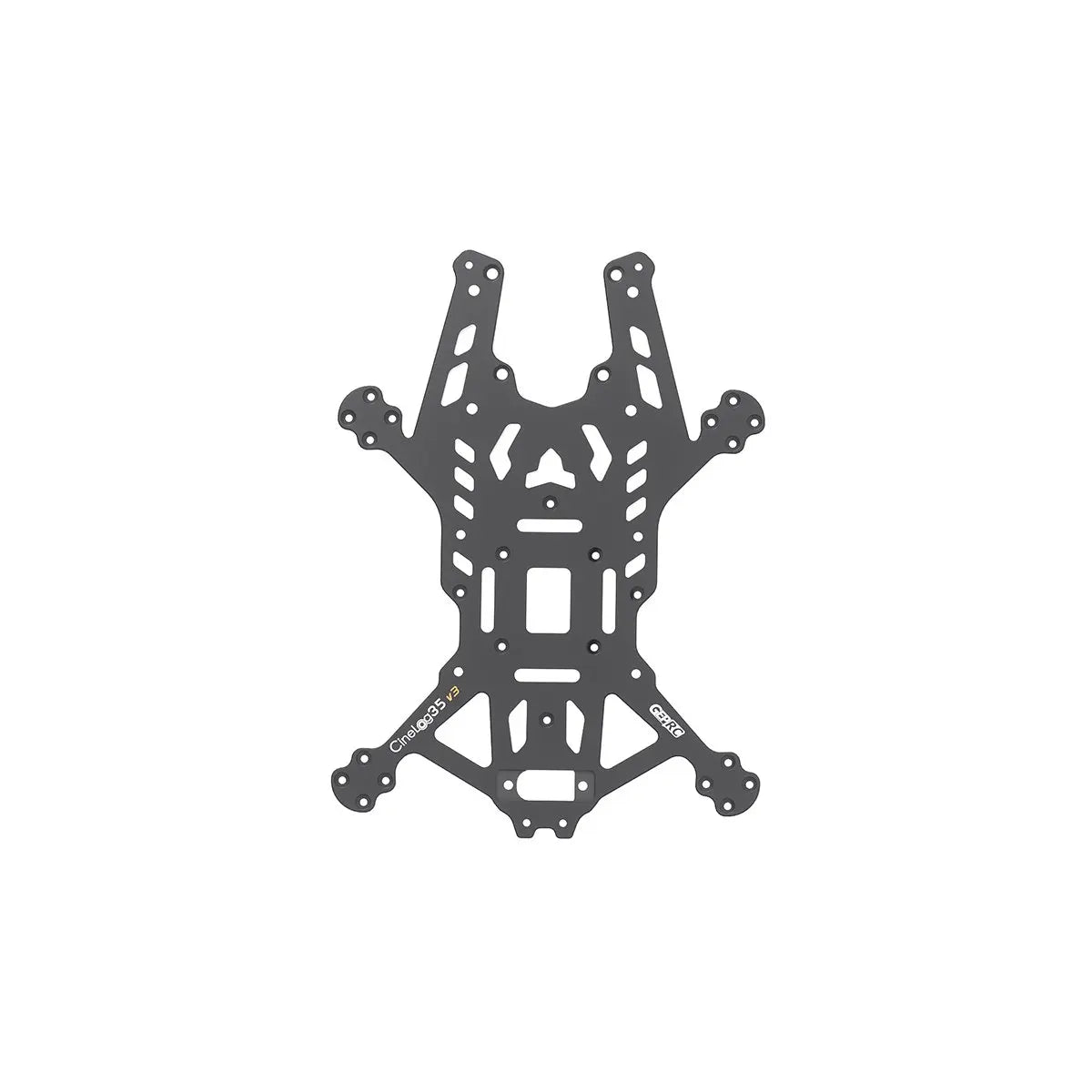

Main Carbon Plate × 1

Gimbal Carbon Plate × 1

Bottom Carbon Plate × 1

Prop Guard × 1 (pair)

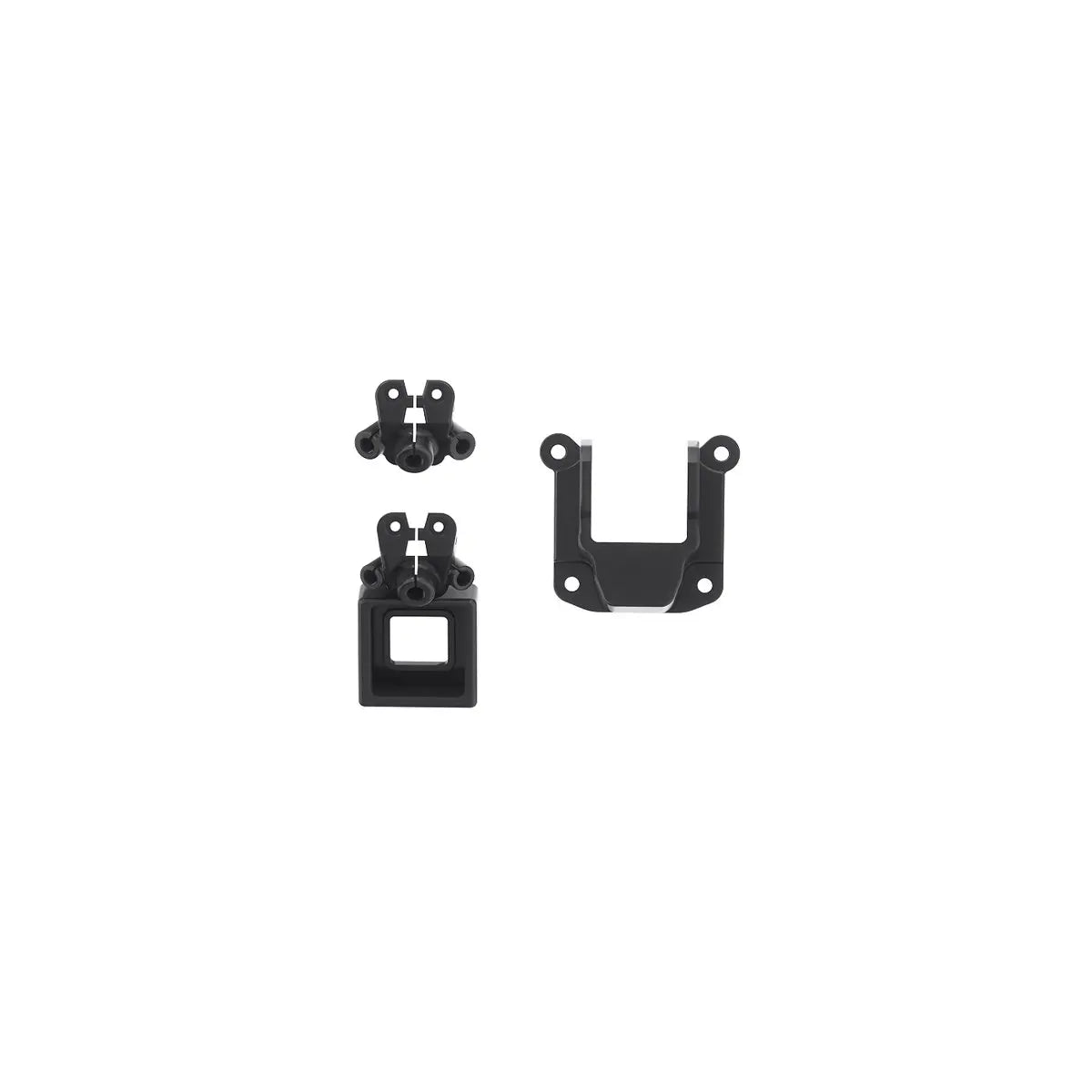

Camera Mount × 1

Receiver Mount × 1

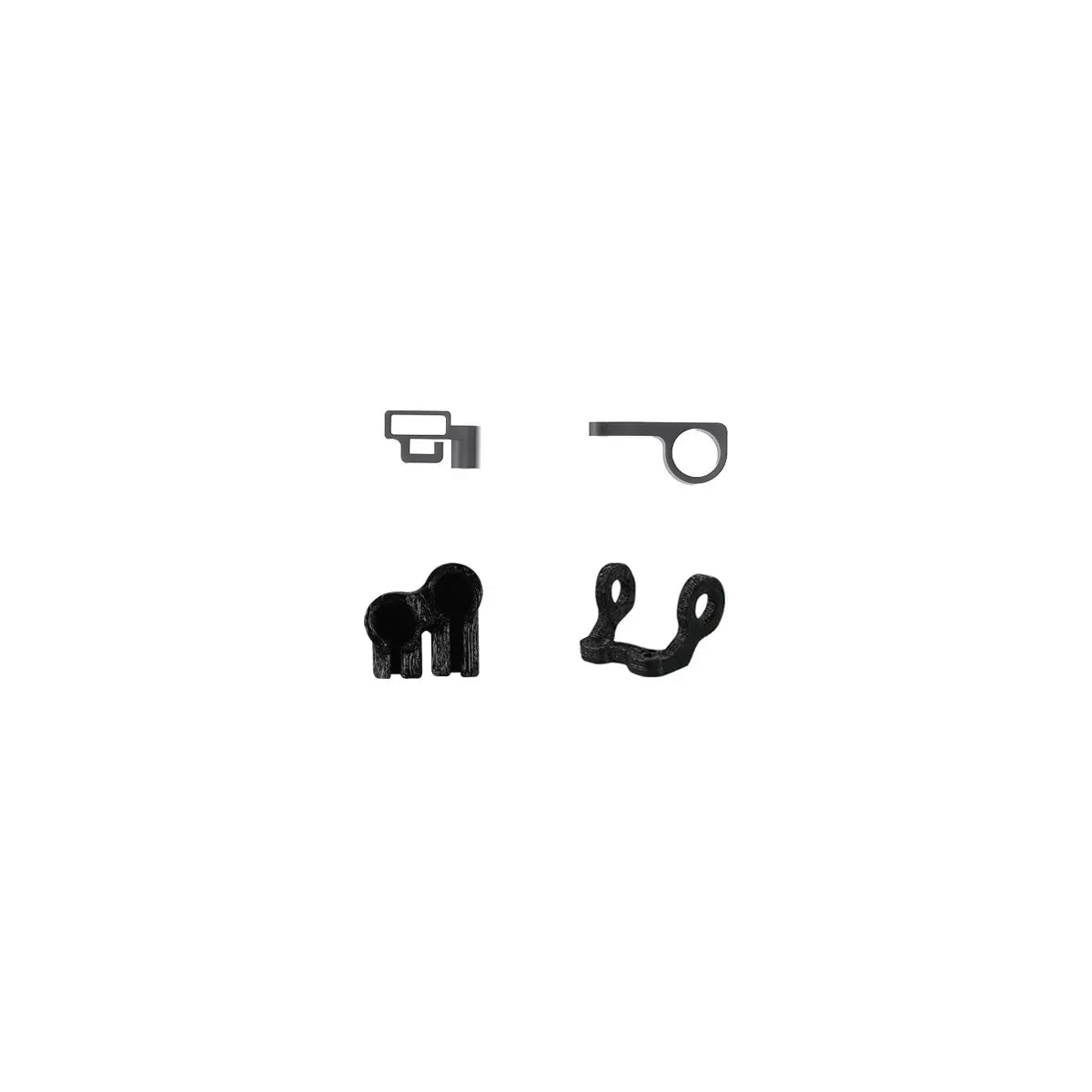

T-Antenna Mount × 1

Capacitor Mount × 1

Power Connector Mount × 1

VTX Antenna Mount × 1

GPS Mount × 1

Action Camera Base Mount × 1

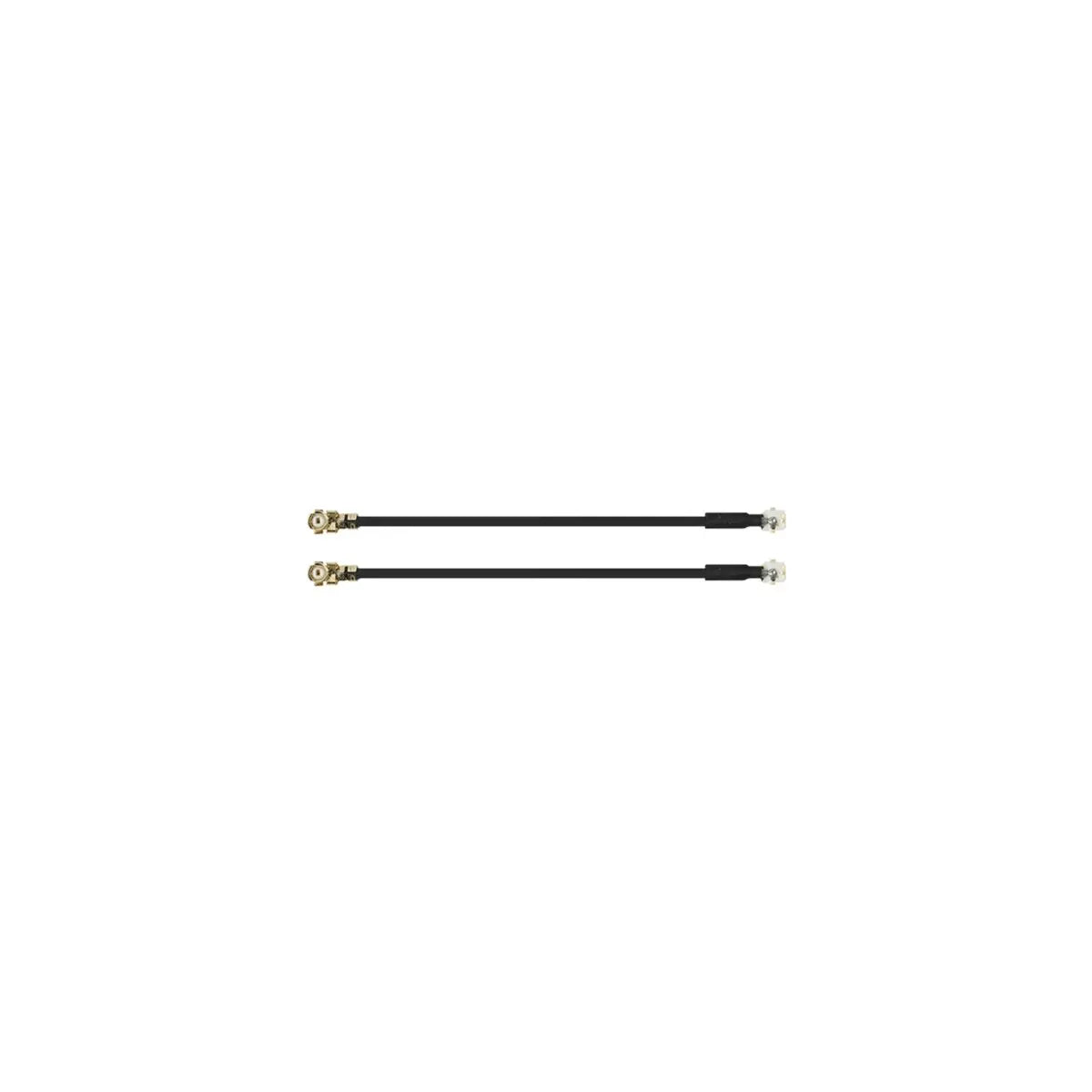

40mm UFL Antenna Extension Cables × 4

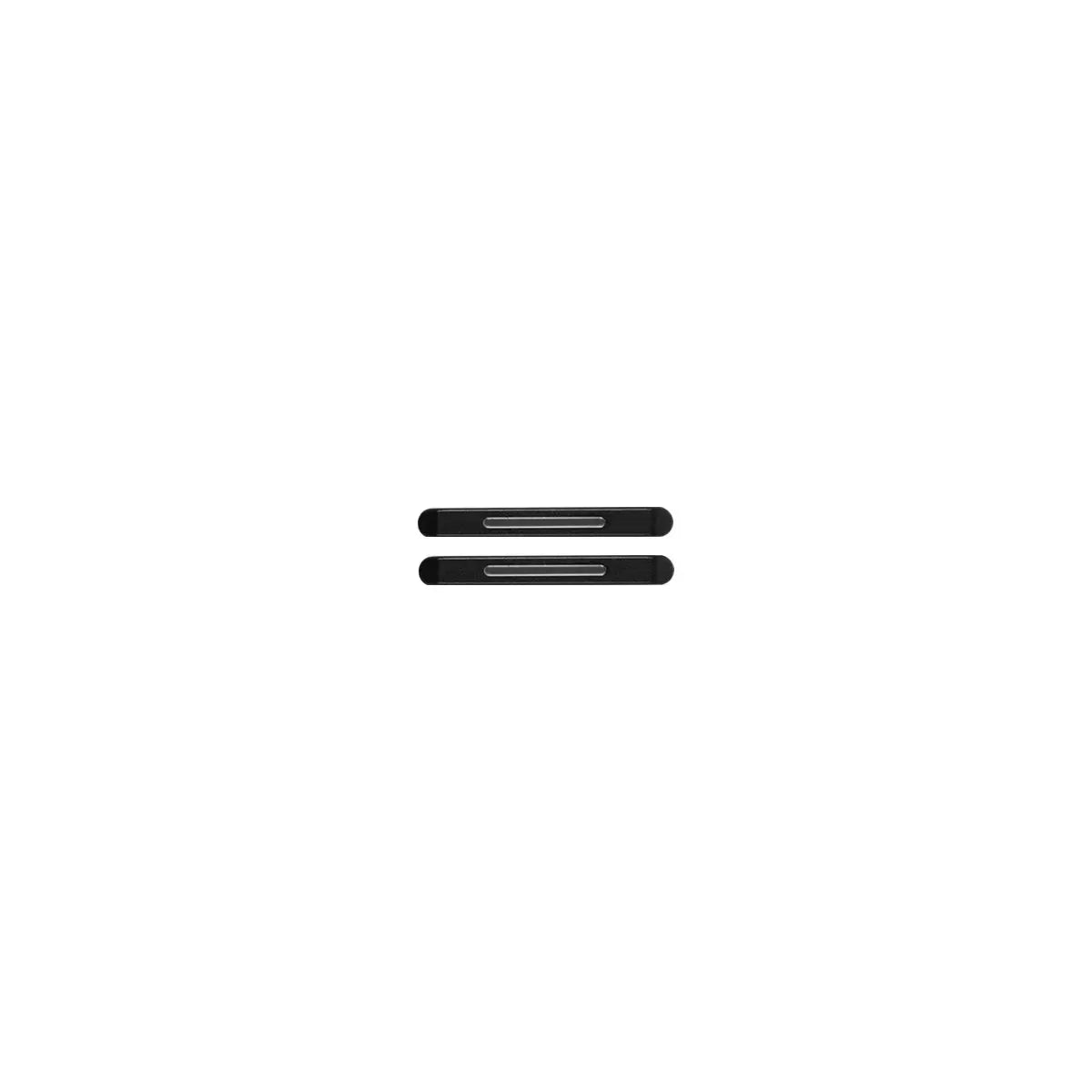

Battery Anti-Slip Pads × 2 (sets)

Battery Strap Aluminum Mounts × 2

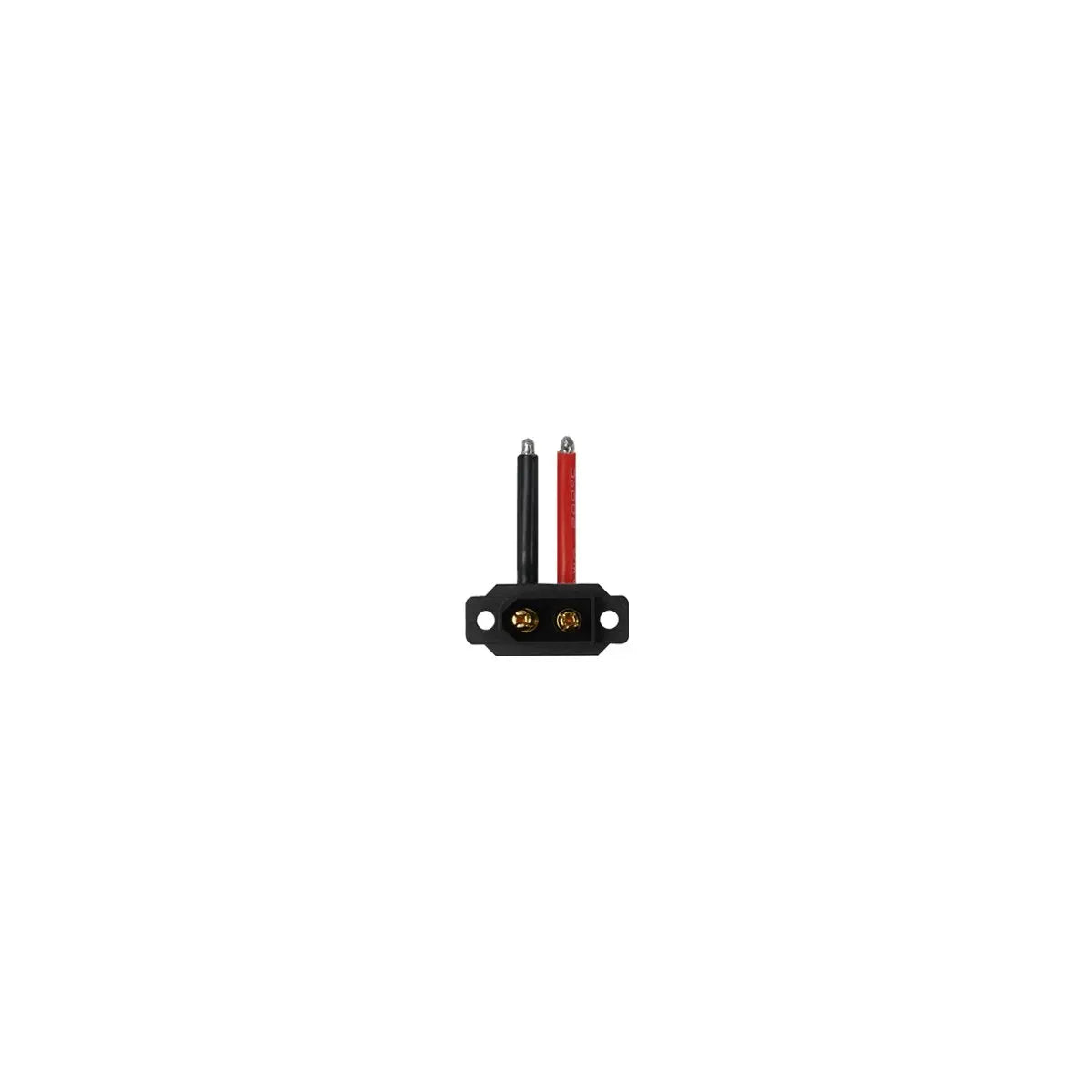

XT60EW-M Plug × 1

20×220mm Battery Strap × 1

20×250mm Battery Strap × 1

Small Accessories

M23.325 Textured Aluminum Standoffs × 4

Motor Wire Management Tubes × 4

Small Action Camera Base × 1

Camera Damping Balls × 6

Gimbal Damping Balls × 4

Damping Ball Installation Tool × 1

3.0mm L-Shaped Hex Wrench × 1

2.0mm L-Shaped Hex Wrench × 1

1.0mm L-Shaped Hex Wrench × 1

M8 Wrench × 1

Keychain × 1

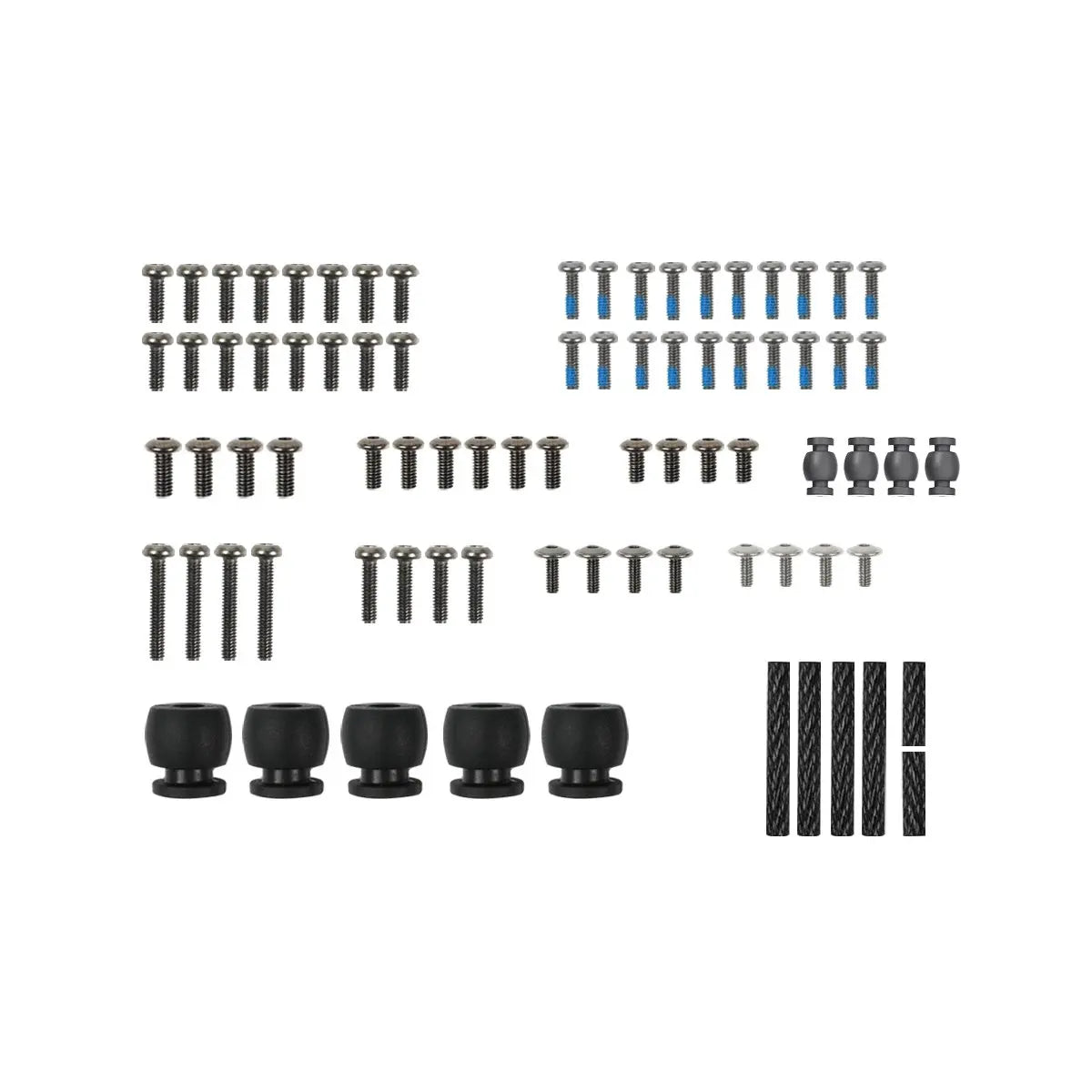

Screw Pack

M2*7 Pan Head Screws × 20

M2*8 Pan Head Screws × 16

M2*6 Pan Head Screws × 6

M2*5 Pan Head Screws × 4

M2.5*6 Pan Head Screws × 4

M2 Hex Nuts × 10

M3 Press-Fit Nuts × 4

M2 Press-Fit Nuts × 12
