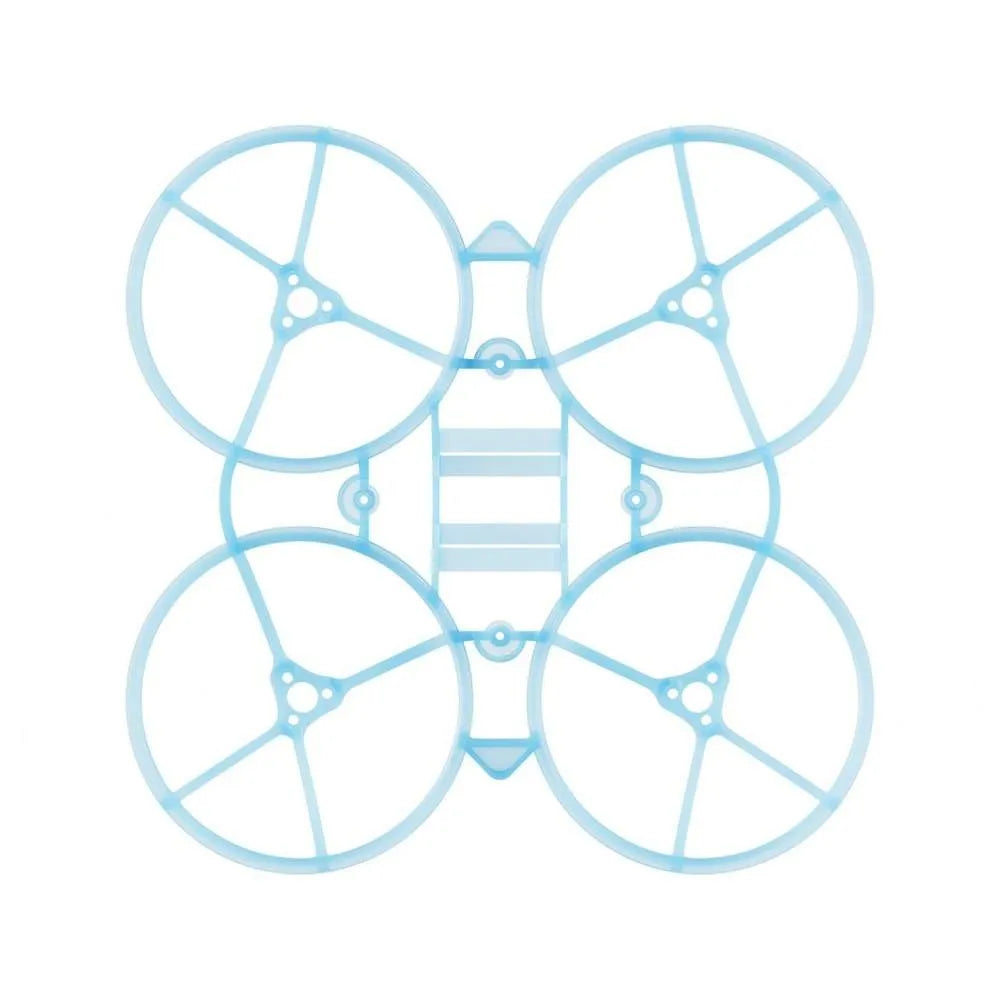

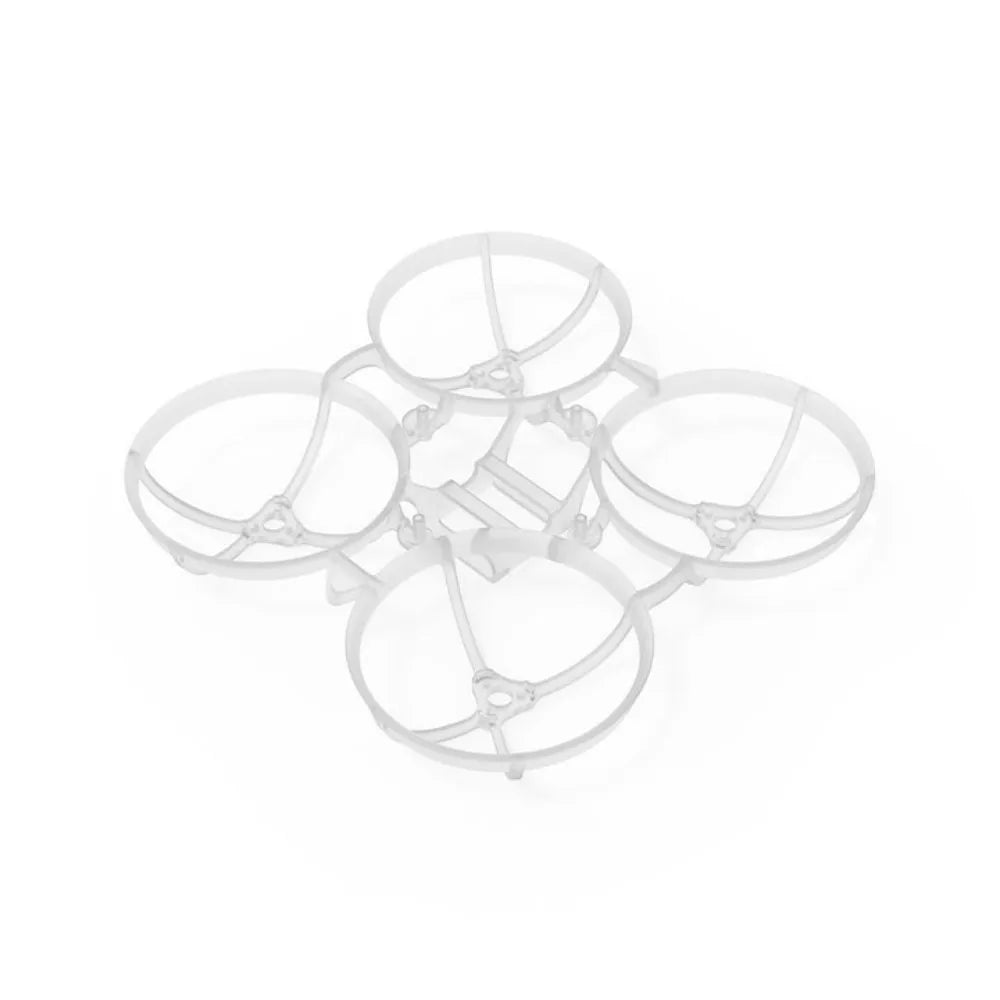

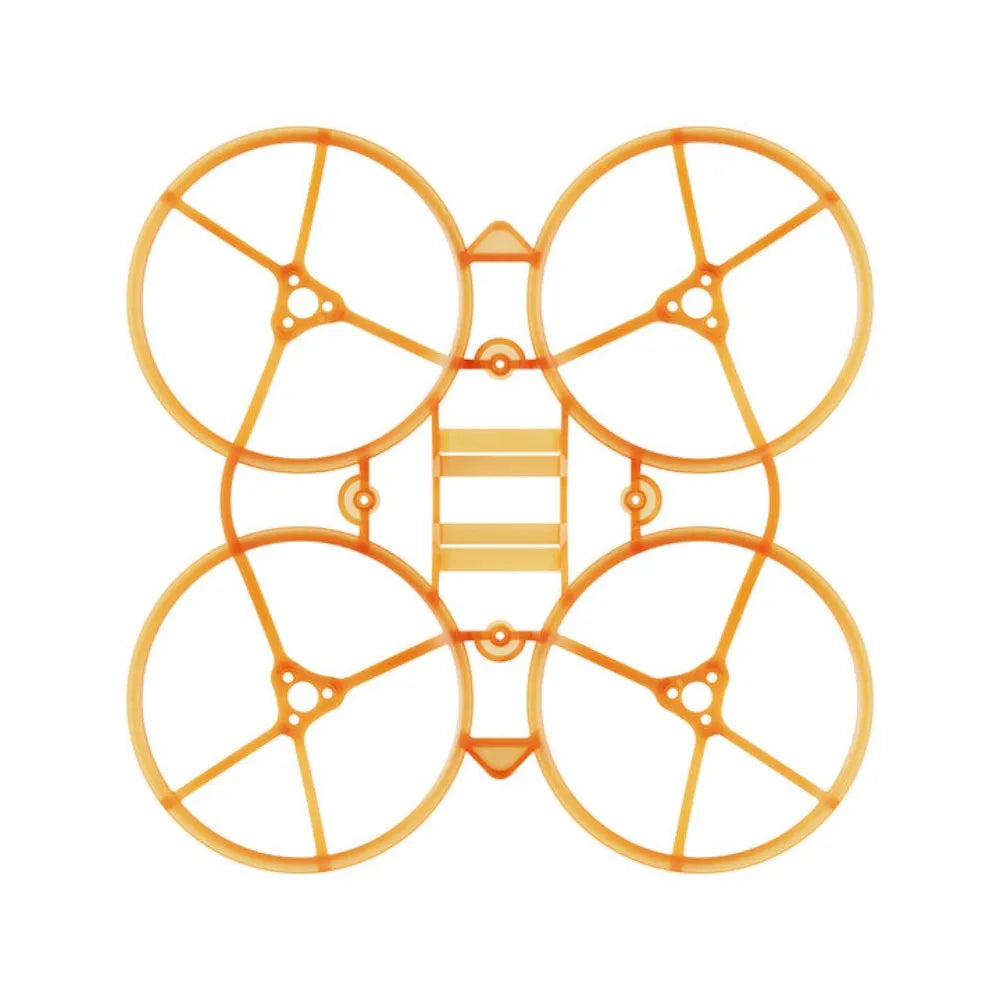

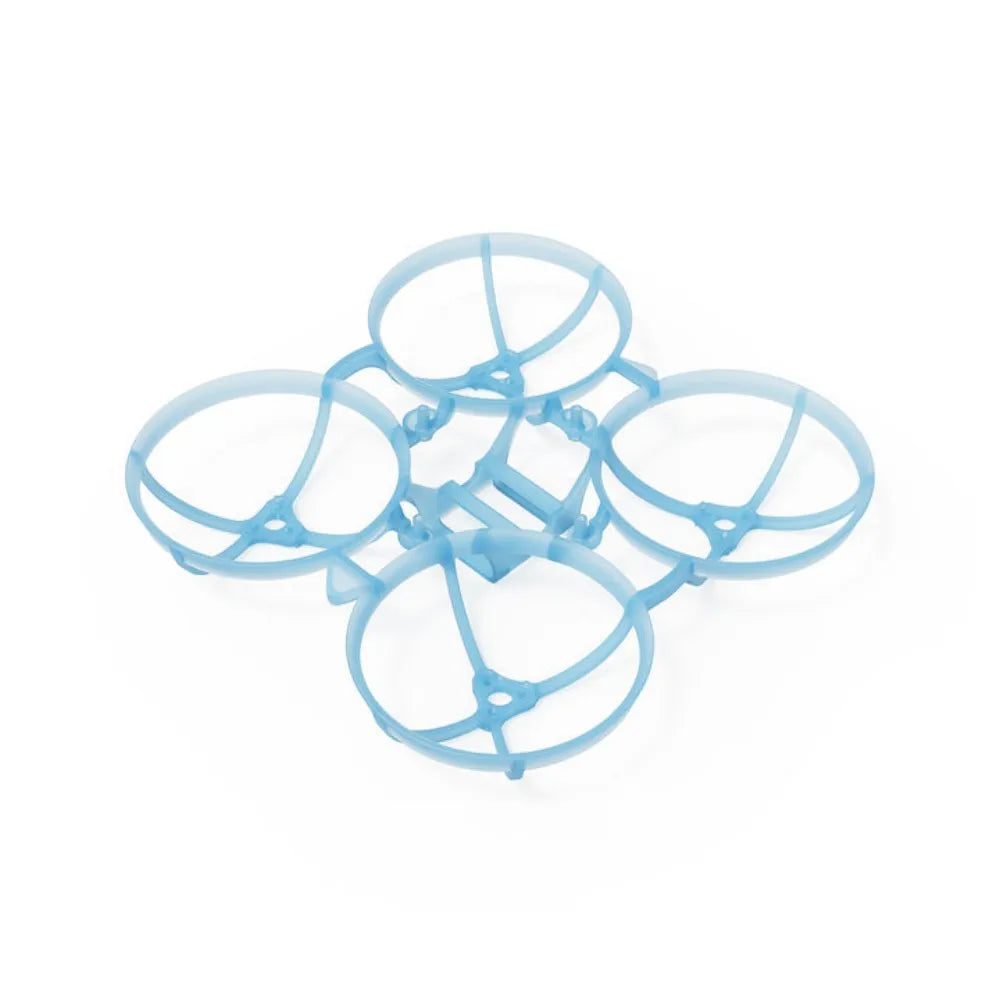

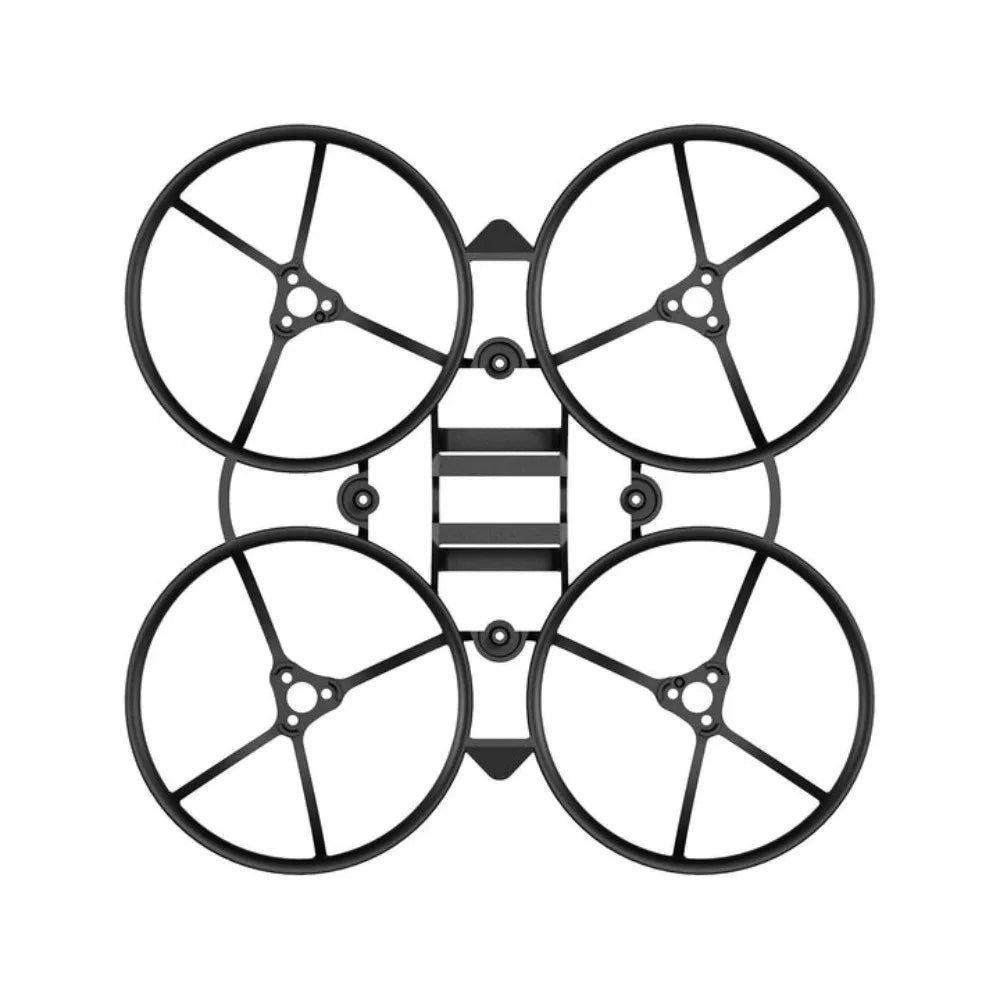

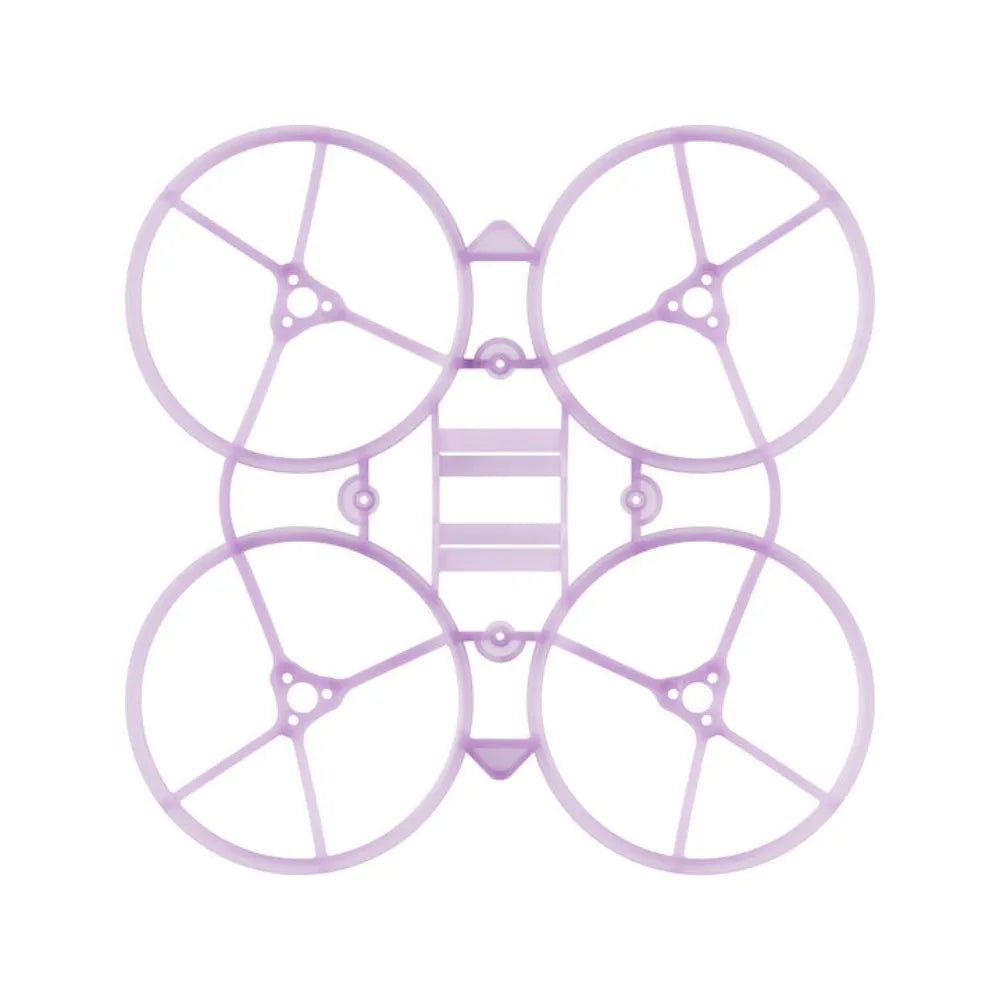

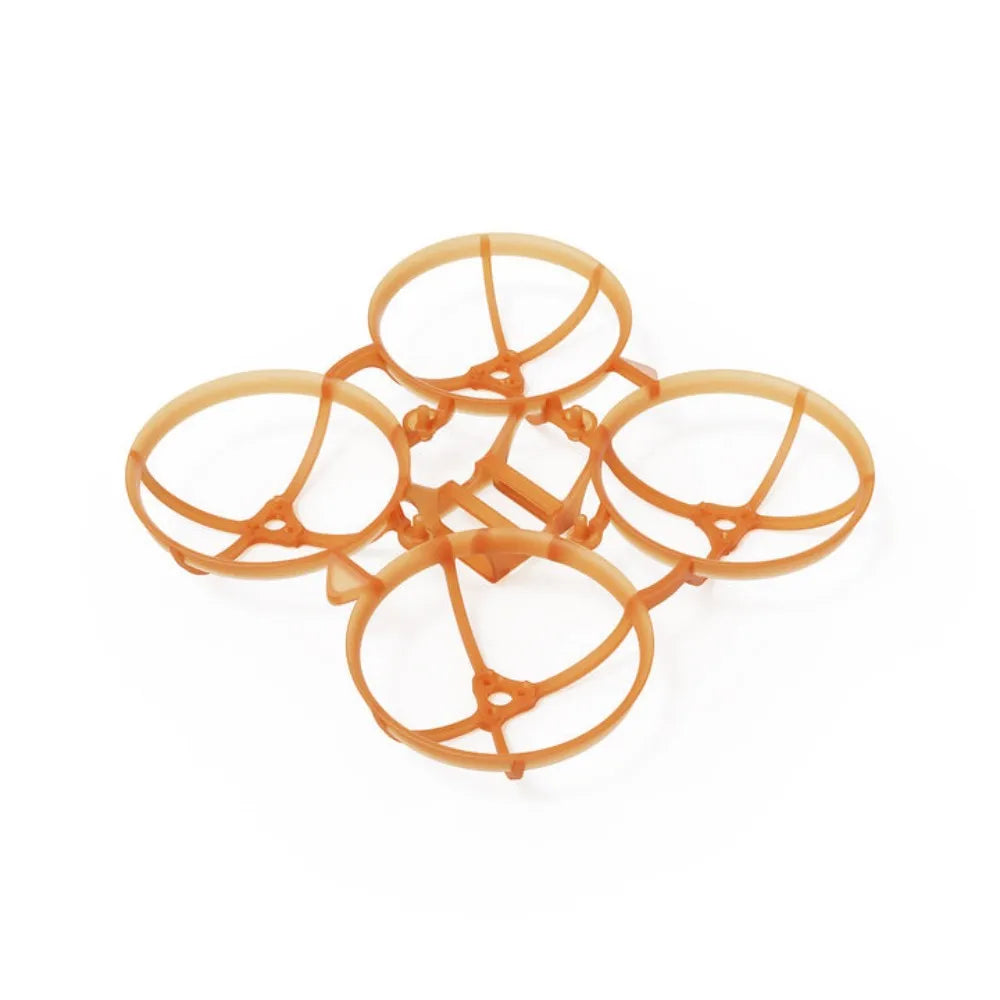

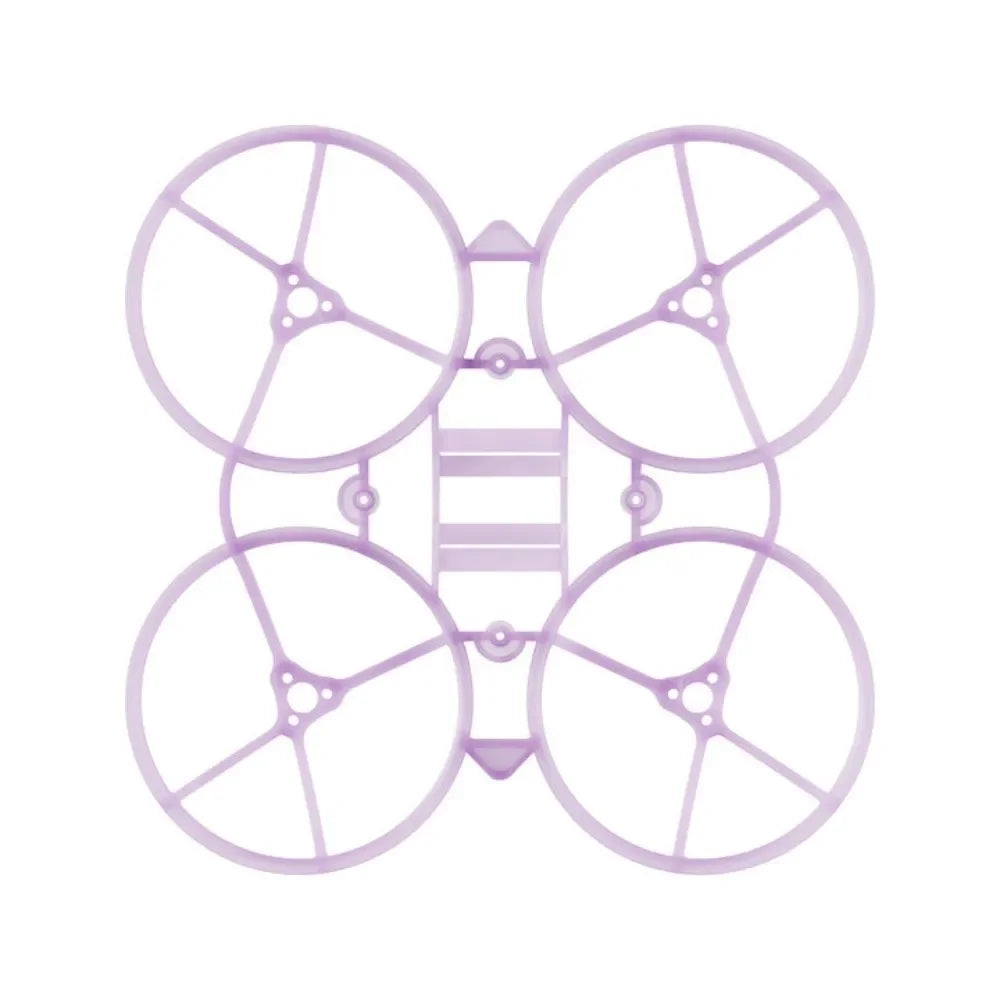

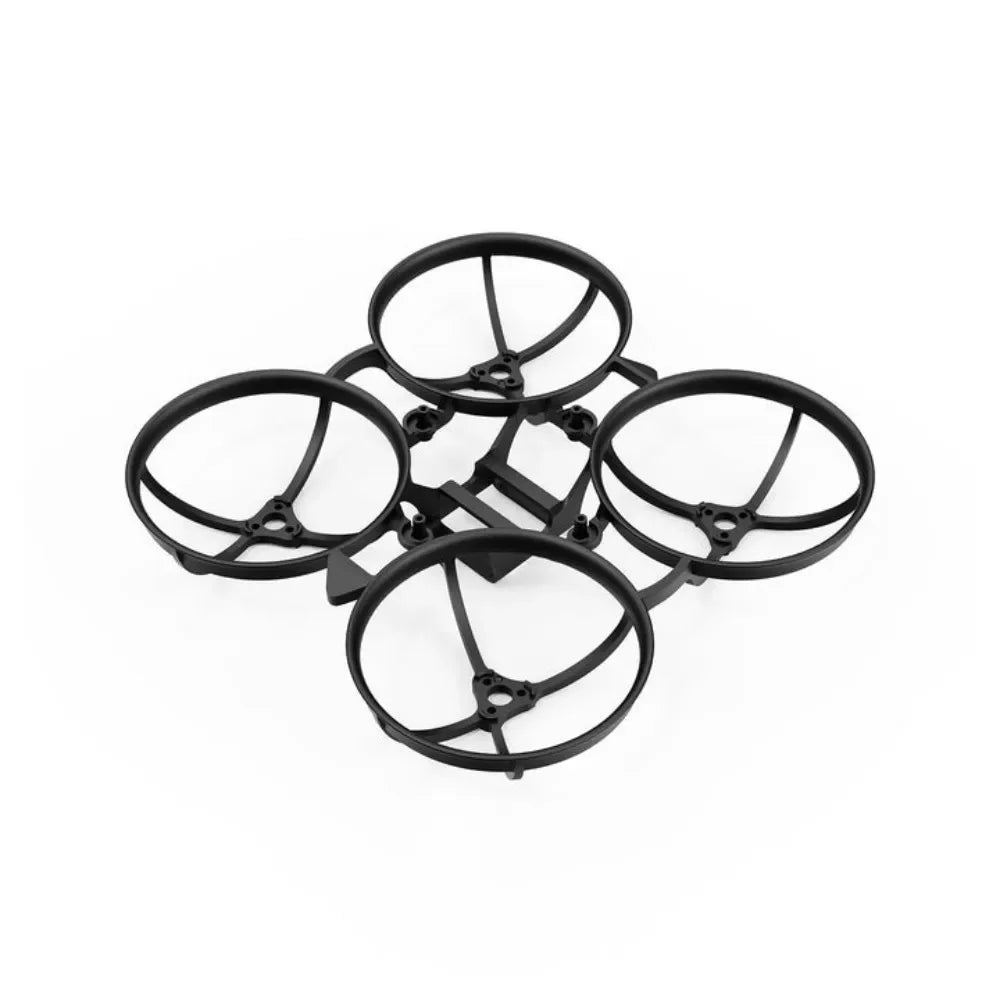

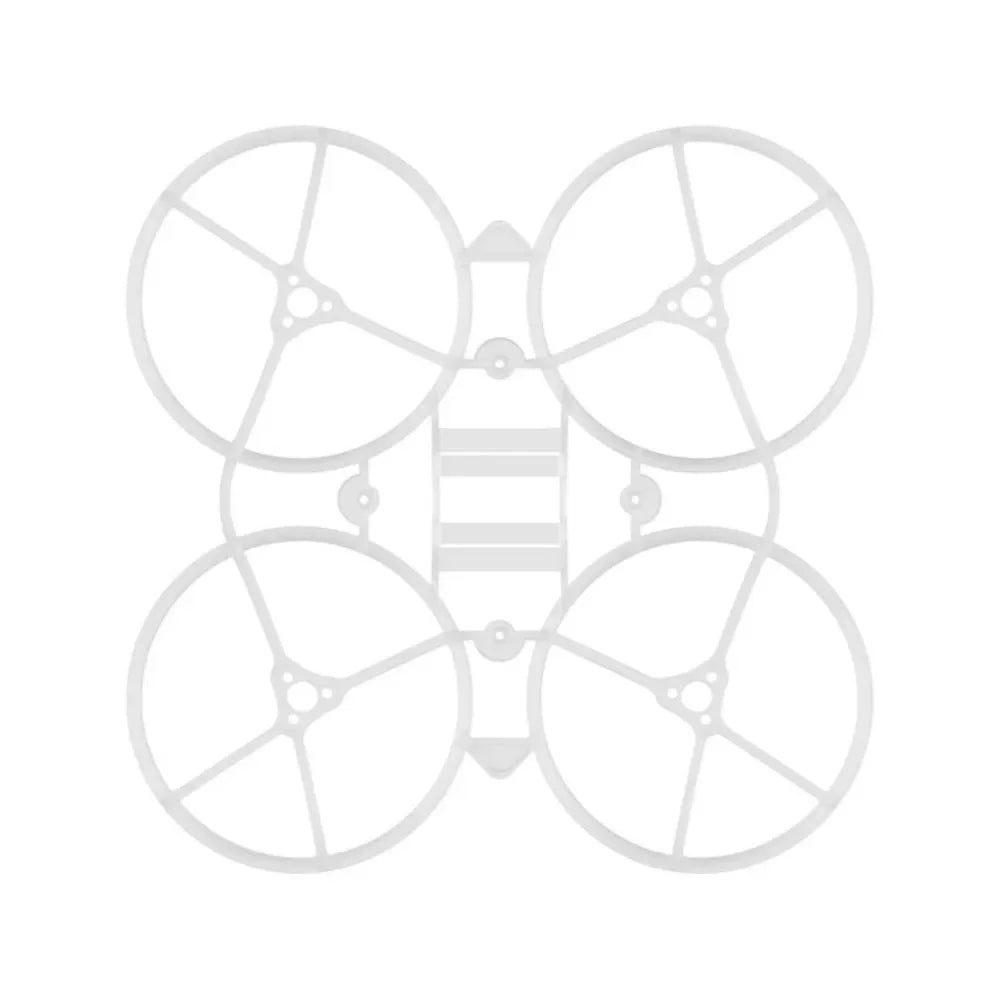

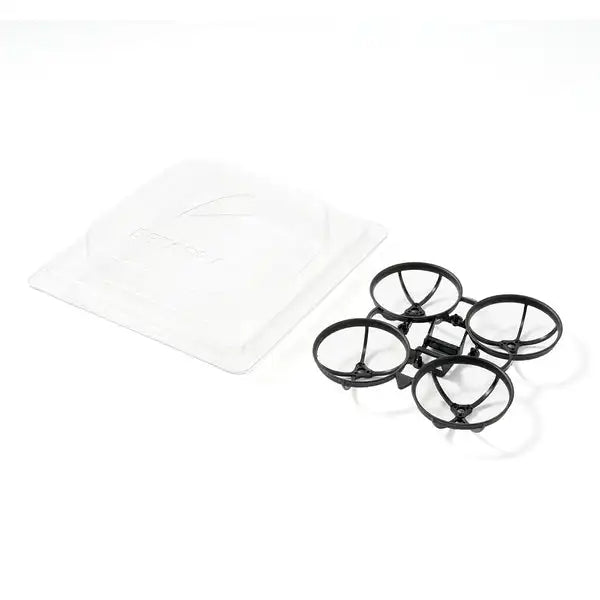

BETAFPV Air75 II Brushless Whoop Frame

BETAFPV 75mm backup platform for endurance and higher-output tuning.

SPECIFICATIONS

Brand Name : HawkSpeed
Choice : yes
For Vehicle Type : Airplanes
Four-wheel Drive Attributes : Assemblage
High-concerned chemical : None
Is Batteries Included : No
Is Electric : No battery
Is it battery/power supply : N
Is it charger/adapter : N
Material : Composite Material
Model Number : Air75 II Brushless Whoop Frame
Origin : Mainland China
Quantity : 1 pcs
RC Parts & Accs : Frame
Recommend Age : 14+y
Remote Control Peripherals/Devices : Remote Controller
Size : NA
Technical parameters : value 2
Tool Supplies : Assembled class
Upgrade Parts/Accessories : Frame
Use : Vehicles & Remote Control Toys
Wheelbase : Screws
semi_Choice : yes

For more than one year, the Air75 Frame defined lightweight agility. Now, forged alongside our global pilot community, the lighter Air75 II Frame (4g) reimagines the form. Our R&D team deconstructed every arm brace, duct geometry, and crash point. The result? A radical yet refined frame: 4 arm braces replace 6, paired with optimized ducts and connecting structure. This shaves frame amplitude while adding 11% thrust and delivering near-perfect PID response. Beneath the form lies resilience. An optimized PP matrix absorbs brutal impacts from crashes. Refined details – screw protection structure, enlarged FC holes, and a lowered duct profile – ensure dominance. All engineered for relentless, worry-free flying.

Bullet Points

Arm braces reduced from 6 to 4 + optimized duct geometry increase 11% thrust—while maintaining uncompromising durability.

Optimized connecting braces reduce frame amplitude and achieve ideal PID step response.

Optimized PP blend makes it crash ready.

Pilot-Focused Details: Motor fixed slots, motor screw protection structure, enlarged FC mounting holes (25.5 × 25.5mm), and lowered duct profile.

At just 4g, the Air75 II achieves a 10% weight reduction compared to Gen 1.

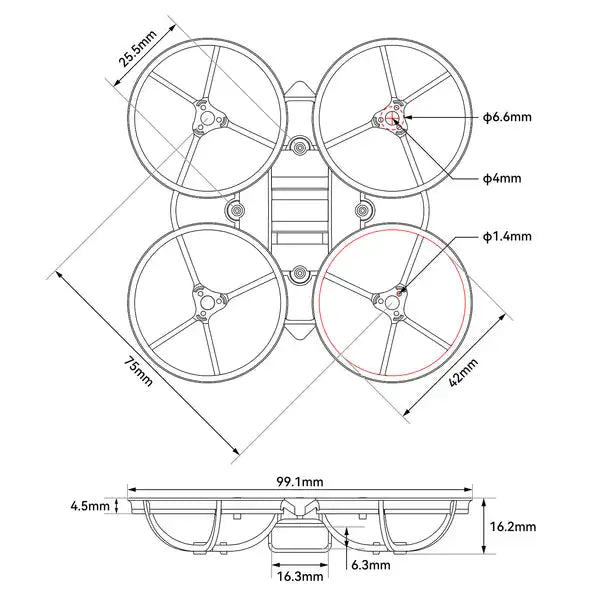

Specifications

Item: Air75 II Brushless Whoop Frame

Material: PP

Weight: 4.00g

Wheelbase: 75mm

Motor Mounting: 3-M1.4-6.6mm

Flight Controller Mounting Hole: 25.5×25.5mm

Battery Slot Size: 16.3×6.3mm

Maximum Size: 99.199.116.2mm

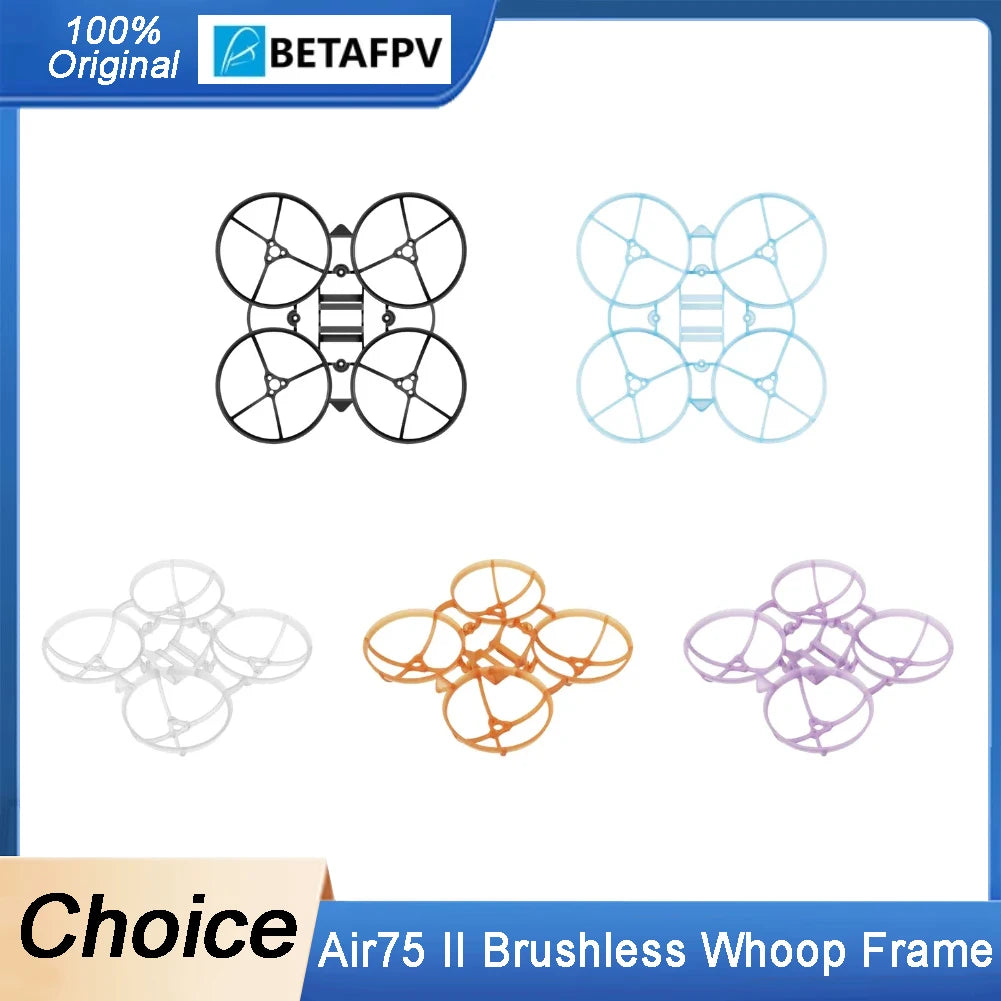

Color: Black, Transparent Blue, Transparent Orange, Transparent Purple, Transparent White

Air75 II Brushless Whoop Frame

Weight: 4.00g

Wheelbase: 75mm

Duct Diameter: 42.0mm

Duct Height: 4.5mm

Arm Braces: 4

Motor Fixed Slot: Supported

Screw Protection Structure: Supported

Propellers: 40mm propellers

Air75 Brushless Whoop Frame

Weight: 4.45g

Wheelbase: 75mm

Duct Diameter: 42.5mm

Duct Height: 4.7mm

Arm Braces: 6

Motor Fixed Slot: Supported

Screw Protection Structure: Not Supported

Propellers: 40mm propellers

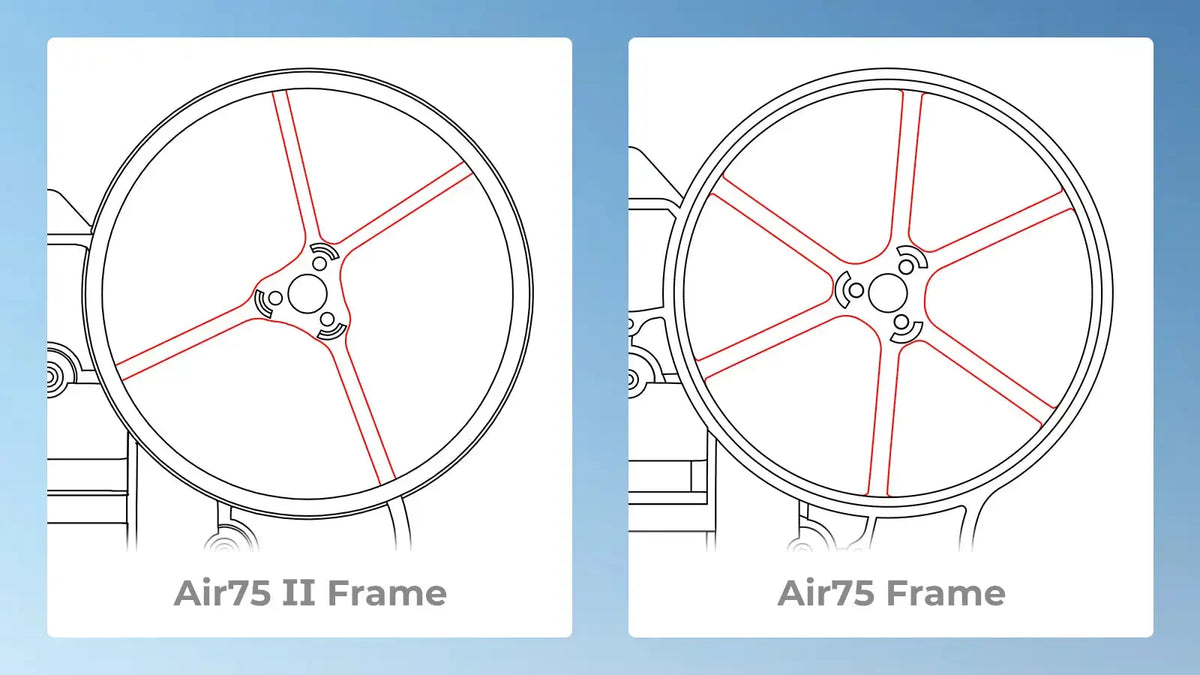

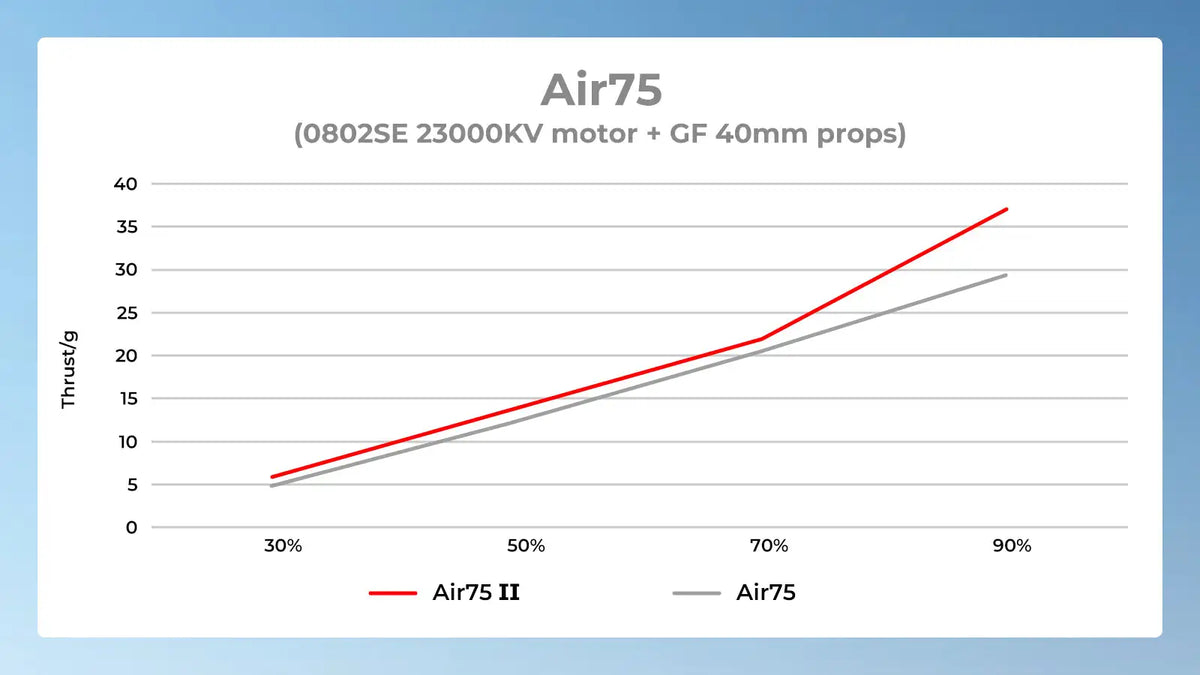

Frame Reshaped: +11% Thrust

By strategically reducing arm braces from 6 to 4 and refining duct aerodynamics, the Air75 II achieves 11% higher thrust versus Gen 1 – delivering instant throttle response and sustained power for the quadcopter.

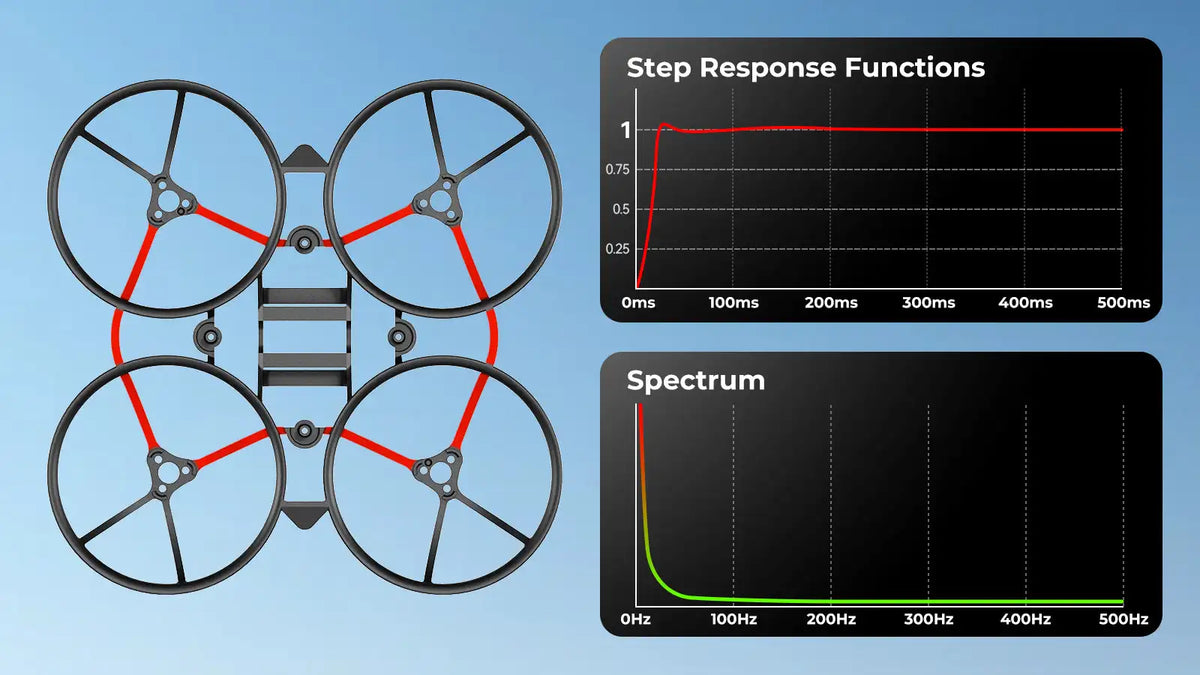

Reliable Flight

After dozens of structural refinements, our final connecting arms design effectively reduce frame vibration. Paired with Feedforward tuning, this achieves a near-perfect PID step response – translating to crisp maneuvers and buttery-smooth freestyle flow.

Optimized Resilient Material

Our battle-tested PP blend laughs off concrete kisses and tree bites. Survive your most violent freestyle crashes – and fly home.

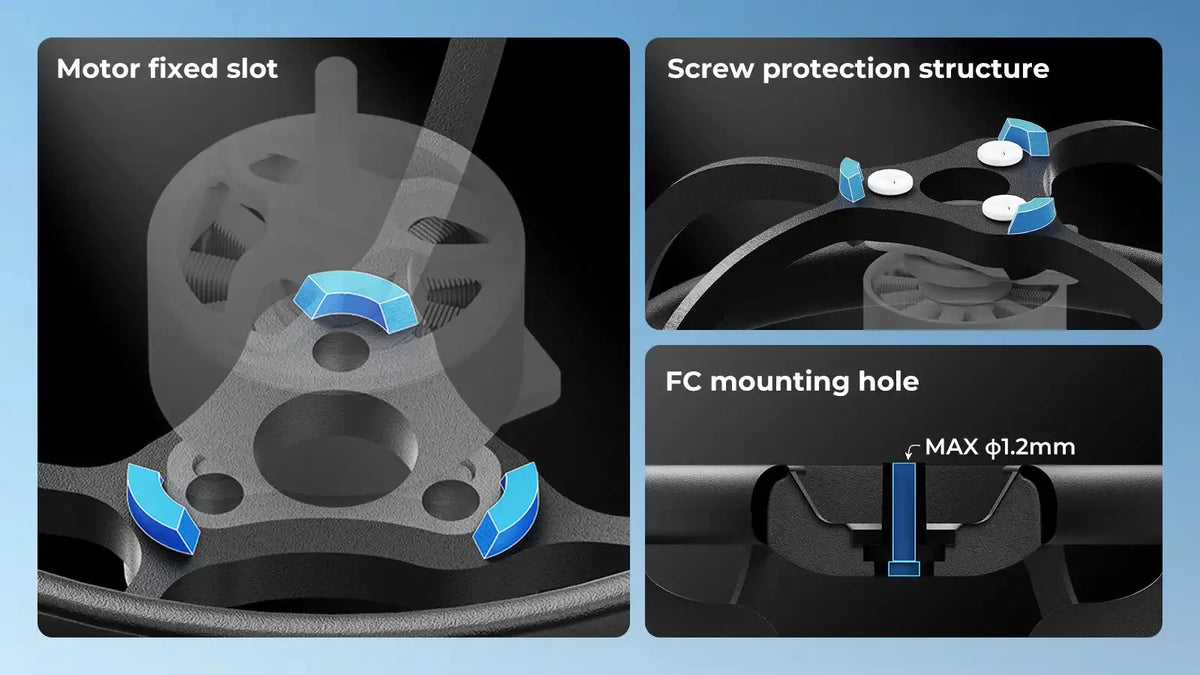

Details Matter

Every gram perfected: Retained motor fixed slots ensure precise alignment, new motor screw protection structures deflect crash impacts, and enlarged 1.2mm FC holes fit 1.4mm screws effortlessly. Where pilot priorities meet engineering obsession.

Recommended Parts

Battery: LAVA 1S 450mAh 75C Battery, LAVA 1S 550mAh 75C Battery, BT2.0 550mAh 1S Battery, BT2.0 450mAh 1S Battery

FC: Air Brushless Flight Controller, Matrix 1S Brushless Flight Controller (3IN1/4IN1), Matrix 1S Brushless Flight Controller (5IN1)

Motors: 0702 II Brushless Motors, 0802SE Brushless Motors, 1102 Brushless Motors

Canopy: Air Canopy, Canopy for Micro Camera 2022, Micro Canopy Lite, Canopy for O4 Air Unit

Propellers: GF 40mm 2-Blade Propellers, GF 1611 3-Blade Propellers

Screws: Meteor Series Motor Fixing Screws Pack (40PCS)

Package

Air75 II Brushless Whoop Frame
