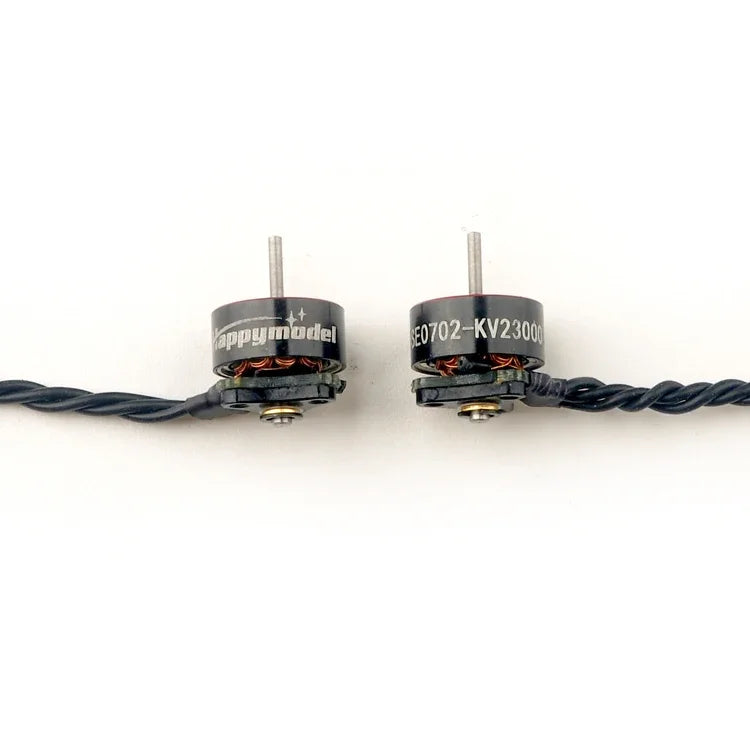

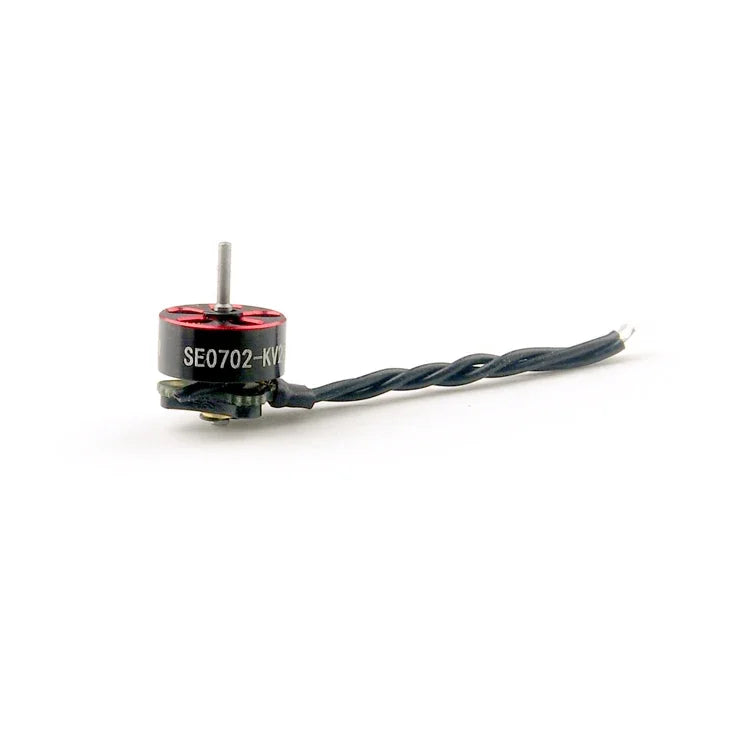

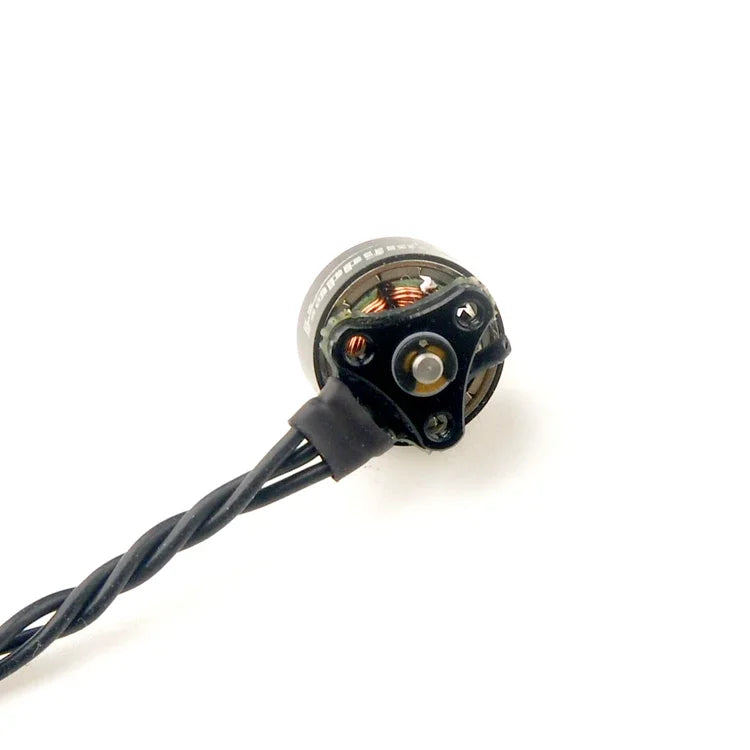

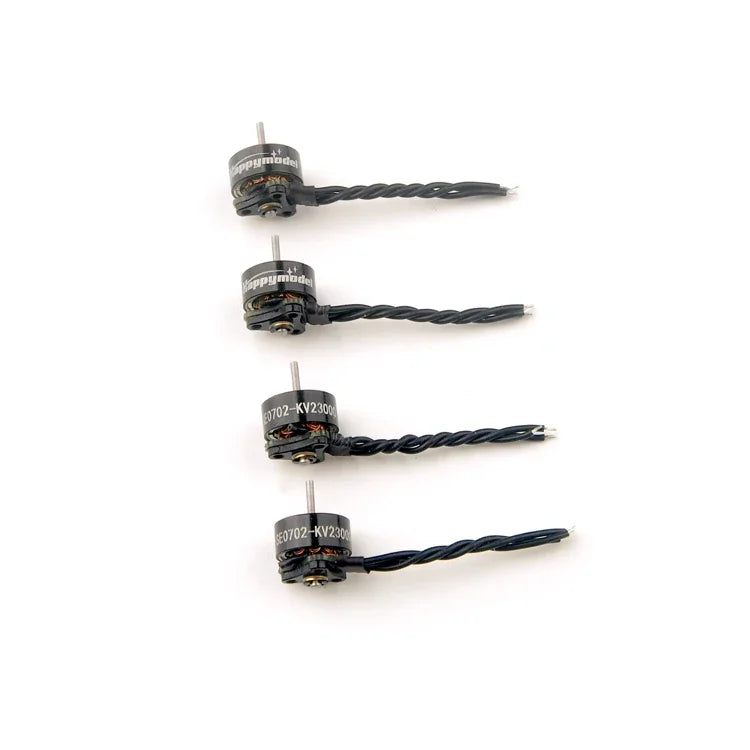

HappyModel SE0702 0702 1S Brushless Motor - 23000KV (4-pack)

HappyModel SE0702 1S tiny-whoop motor set, 23000KV, four motors.

SPECIFICATIONS

Brand Name : DJIRCTOY
Drones Accessories Type : Motor
High-concerned chemical : None
Model Number : SE0702
Origin : Mainland China

Happymodel SE0702 Brushless motor Bench data

Happymodel SE0702 KV23000

No-load voltage : 2
No-load current : 0.41
No-load Speed : 46670
KV : 23335.0
Voltage (v) : 3.7
Current (A) : 0.52
Thrust (g) : 5.1
Efficiency (g/w) : 2.651
Power (w) : 1.924
Propeller : Gemfan 31mm Bi-blade propeller

Voltage (v) : 3.7
Current (A) : 1
Thrust (g) : 8.9
Efficiency (g/w) : 2.405
Power (w) : 3.7

Voltage (v) : 3.7
Current (A) : 1.53
Thrust (g) : 13.1
Efficiency (g/w) : 2.314
Power (w) : 5.661

Voltage (v) : 3.7
Current (A) : 1.99
Thrust (g) : 16.3
Efficiency (g/w) : 2.214
Power (w) : 7.363

Voltage (v) : 3.7
Current (A) : 2.5
Thrust (g) : 19.3
Efficiency (g/w) : 2.086
Power (w) : 9.25

Voltage (v) : 3.7
Current (A) : 2.86
Thrust (g) : 21.7
Efficiency (g/w) : 2.051
Power (w) : 10.582

No-load voltage : 2
No-load current : 0.43
No-load Speed : 46290
KV : 23145.0
Voltage (v) : 3.7
Current (A) : 1
Thrust (g) : 8.1
Efficiency (g/w) : 2.189
Power (w) : 3.7
Propeller : Gemfan 40mm Bi-blade propeller

Voltage (v) : 3.7
Current (A) : 1.5
Thrust (g) : 11.8
Efficiency (g/w) : 2.126
Power (w) : 5.55

Voltage (v) : 3.7
Current (A) : 2
Thrust (g) : 15.6
Efficiency (g/w) : 2.108
Power (w) : 7.4

Voltage (v) : 3.7
Current (A) : 2.5
Thrust (g) : 19.6
Efficiency (g/w) : 2.119
Power (w) : 9.25

Voltage (v) : 3.7
Current (A) : 3
Thrust (g) : 22.4
Efficiency (g/w) : 2.018
Power (w) : 11.1

Voltage (v) : 3.7
Current (A) : 3.5
Thrust (g) : 25.6
Efficiency (g/w) : 1.977
Power (w) : 12.95

Voltage (v) : 3.7
Current (A) : 4
Thrust (g) : 27.1
Efficiency (g/w) : 1.831
Power (w) : 14.8

Happymodel SE0702 KV26000

No-load voltage : 2
No-load current : 0.35
No-load Speed : 5170
KV : 25535.0
Voltage (v) : 3.7
Current (A) : 0.98
Thrust (g) : 8
Efficiency (g/w) : 2.206
Power (w) : 3.626
Propeller : HQPROP 31MM Bi-blade propeller

Voltage (v) : 3.7
Current (A) : 1.49
Thrust (g) : 11.9
Efficiency (g/w) : 2.159
Power (w) : 5.513

Voltage (v) : 3.7
Current (A) : 1.99
Thrust (g) : 15.6
Efficiency (g/w) : 2.119
Power (w) : 7.363

Voltage (v) : 3.7
Current (A) : 2.5
Thrust (g) : 19.6
Efficiency (g/w) : 2.119
Power (w) : 9.25

Voltage (v) : 3.7
Current (A) : 2.8
Thrust (g) : 21.7
Efficiency (g/w) : 2.095
Power (w) : 10.36
